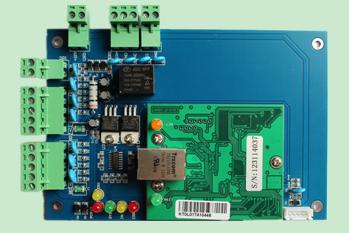

Network Type Access Control Board for One Door, turnstiles, parking barrier
| Supply Ability: | 2,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-12days depends on demand quantity, shipment at Shenzhen or Hongkong |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, pay pal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | packed in cartons |
Quick Details
- Model Number: L01
- Brand Name: Koten
Specifications
TCP/IP wiegand door access controls for 1 doors 2 readers
wiegand door access controls Specifications:
| One Door Access Control Panel Product Parameters: | |
| PCB board size: | 160mm * 106mm |
| Case Size: | 273mm * 228mm * 65mm |
| Power Supply: | 12VDC 3-7A |
| Circuit board power consumption: | less than 100mA |
| Reader Input Format: | Wiegand26 (compatible with all readers under the agreement) |
| Communication: | TCP/IP 10M/100M |
| self adaptive Function Description: | can control one doors, enter via card swiping and exit via card swipping or button. |
| Connect Reader | 2pcs readers |
| Can control the gate output relay: | 1 |
| Open delay time: | 1-600 seconds adjustable |
| Maximum number of connections: | No limite Operating temperature: -40 to 70 degrees Celsius |
| Run Humidity: | 10-90% RH, non-condensing |
| User registration card capacity: | 10,000 cards Permissions |
| Signal output communication format and baud rate: | Support LAN, Intranet, fix Ipinternet WAN. |
| Power failure protection measures: | high-speed flash memory design, and never lose data |
| Max distance between reader to the controller: | 100 meters, suggest within 80 meters |
| Max distance for the bus line: | Depends on network cover area. |
| Max distance between controller to the PC: | No limite |
Delivery Detail:
the normal quantity is delivery on 3-7 working days upon receive your payment,the big quantity we should check on our production schedule first then arange.
Shipping way:
1. Fast way: By express courier, such as: DHL, Fedex, UPS, TNT,EMS... take about 3-7 days.
2. Cheap way(small package):By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment.
