Stirrup bending machine factory

FOB Price:	12,000.00 - 35,000.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	10days after receive the down payment,shipping from any port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	wooden boxes

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO 9001:2000
Extra Services: Welding / Brazing
Automation: Automatic
Power: Cnc
Material / Metal Processed: Carbon Steel
Raw Material: Steel Bar
Machine Type: bending machine
Model Number: SK-ST-512
Brand Name: SECURE-NET
Condition: New
Single wire production capacity(mm): Round wire:4-12mm
Double wire production capacity(mm): Round wire:4-10mm
Production efficiency(pcs/hour): 1400
Max. bending angle (forward and inverse): 180degrees
Max feeding speed(mm/s): 3000
Max bending speed: 1000
Length accuracy(mm): 1.5
Angle accuracy: 1.5
Height from bending center shaft to ground(mm): 1125
Motor(kw): 19.5

Specifications

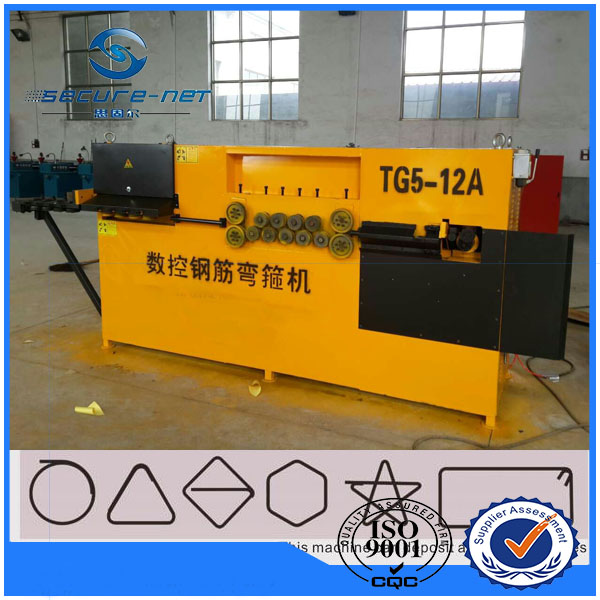

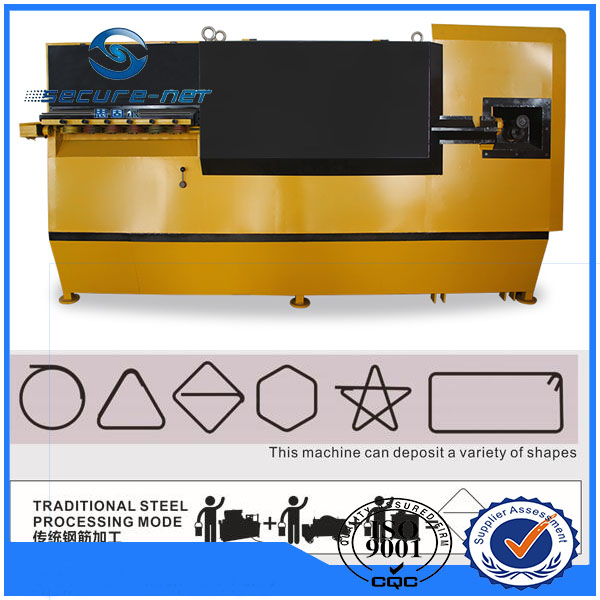

Bending ARC machine
1.Automatic wire bending machine line,have wire straitening fuction.
2.From material to final product,one-line process.
3.High efficiency machine,equal of 20 workers.
4.Machine only need one person to handle,save more worker.
5.Save material,continuous forming,no material head loss.
6.Cover small area,save space,can operation in narrow area.
7.Low maintenance costs and low energy costs.

Model	SK5-12A
Single wire production capacity(mm)	Round wire:Φ4—Φ12
Single wire production capacity(mm)	Rebar wire:Φ4—Φ10
Double wire production capacity(mm)	Round wire:Φ4—Φ10
Double wire production capacity(mm)	Rebar wire:Φ4—Φ8
Production efficiency(pcs/hour)	1400
Max. bending angle (forward and inverse)	180°
Max feeding speed(mm/s)	3000
Max bending speed(° /s)	1000
Length accuracy(mm)	±1.5
Angle accuracy(°)	±1.5
Height from bending center shaft to ground(mm)	1125
Motor(kw)	19.5
Machine size(mm)	3200×950×1710
Machine weight(kg)	1600
