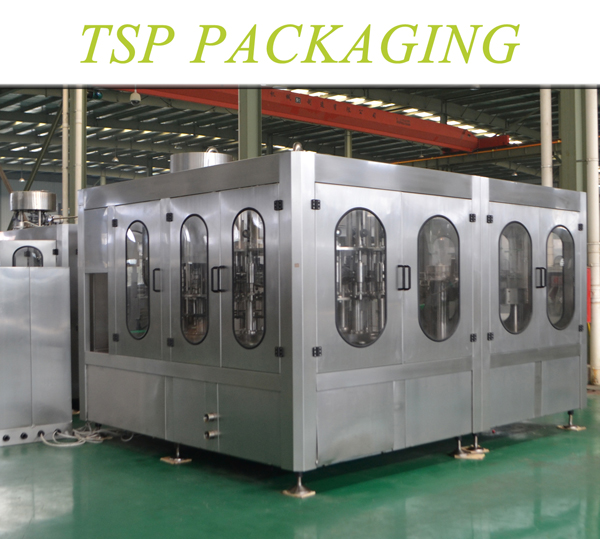

Automatic fruit juice filling and packaging machine/ hot filling type equipment for 38mm PET bottle

FOB Price:	20,000.00 - 40,000.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	Wooden package based on FOB SHANGHAI terms
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Quick Details

Type: Filling Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE, ISO
Weight: 2.5t`
Dimension(L*W*H): 2320*1550*2500 mm
Model Number: RCGF 8-8-3
Brand Name: TSP
Power: 4.23KW
Voltage: 220/380V, 50-60HZ, 3 phases
Driven Type: Electric
Automatic Grade: Automatic
Packaging Material: Wood
Packaging Type: Bottles
Application: Beverage
Condition: New
Name: Automatic fruit juice filling and packaging machine/ hot filling type equipment for 38mm PET bottle
Control: PLC and touchscreen
Bottle type: PET or glass
Bottle size: 200-2000ml
Capacity: 2000 bottles per hour
Motor: ABB
Conductor: SIEMENS
Fussy: SIEMENS
Cap loading type: belt
Warranty: 1 year and spare parts for free

Specifications

Descriptions:
The machine is mainly used in filling Juice, tea drink .Integrating with rinsing, filling and sealing, it has temperature control device for heat filling and realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of juice and tea.The bottle types applicable for various parts are easily, conveniently and rapidly adjustable.It adopts new micro-negative pressure filling, stable and reliable.Compared with the machines of the same specification, the benefit of the machine is larger.
The machine adopts advanced omron programmable logic controller (plc) to control the automatic running of the machine.The input bottle adopts air conveying device;The output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation.It is the ideal first-choice equipment of beverage manufacturers.

1) To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate

2) The parts contacting media are made from stainless steel and have no process blind angles to enable easy cleaning

3) Stainless steel bottle clip, the clip does not touch the bottle screw, the rinsing nozzle is " plum blossom" shape, so it can care each inch of the bottle.

4) This machine adopts micro negative pressure hot filling, has high filling accuracy.

5) Screw capping machine designed according to Italy technical, France technology.

6) The cap feeder has the function of protection cap, and also can test no cap status and process cap adding.

7) PLC+ touch screen, easy operation.

Technical parameter
Washing heads	8
Filling heads	8
Capping heads	3
Production capacity	1000-2000bph at 500ml bottle
Filling material	water
Total power	4.23KW
Conveyor form	air conveyor
Bottle application	plastic PET
Volume of bottle	from 250ml to 2L
Diameter of bottle body	Φ50mm—Φ100mm
Height	150mm-320mm
Maximum of cap	Φ25-Φ40mm
Lid application	plastic
Adjustable form	transducer
Volume of bottle	330ml-1.5L
Power of lid unscramble	0.37KW
Weight	2.5T
External dimensions	232015502500 mm

Service:

We have 1 year warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send at once, free of charge.

1) Within one month, if the machine is of any big fails, we will send you at once. We have a stand-by repair engineer team to provide after-sale service.
2) Within one year, if you send back the equipment for repair, we will charge the repair, including the accessories. Both of them are free.
3) After one years, we offer to repair the machine, but we quire fo changed parts, not for manual cost.
4) No responsibility for man-made destroy.
5) If the buyer has any questions from our technical department, we service Or we can send professional engineers to help you debug them.
