Shenzhen Zoanco Electronics Co., Ltd.
China Manufacturer with main products: Flame Detector, Beam Detector, Heat Detector, Manual Call Point, Gas Alarm, Smoke Detector, Fire Alarm Control Panel, Bell |
Home
>Products Catalog > Addressable Fire Alarm Control system > TCSB5204H Digital Manual Call Point Alarm Button Compatible with Our Addressable Fire Alarm System
TCSB5204H Digital Manual Call Point Alarm Button Compatible with Our Addressable Fire Alarm System
| Supply Ability: | 100,000 Piece(s) per Month |
|---|---|
| Shipping: | FOBshenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | netural packing |
Quick Details
- Brand Name: TC
- color: red
- Executive standard: ce
- Operating Voltage: Signal bus voltage: loop 24V
- Product name: Intelligent Manual call point
- Model Number: TCSB5204H
- Operating Voltage: Signal bus voltage: loop 24V
- Operating current: Standby current: < 0.2mA
- Programming mode: Electronically addressed
- Wiring: Non-polarized signal two-wire
- Material and color: ABS; red
- Size: 90x90x42mm
Specifications
Skype firealarm87 /wechat 15220176087

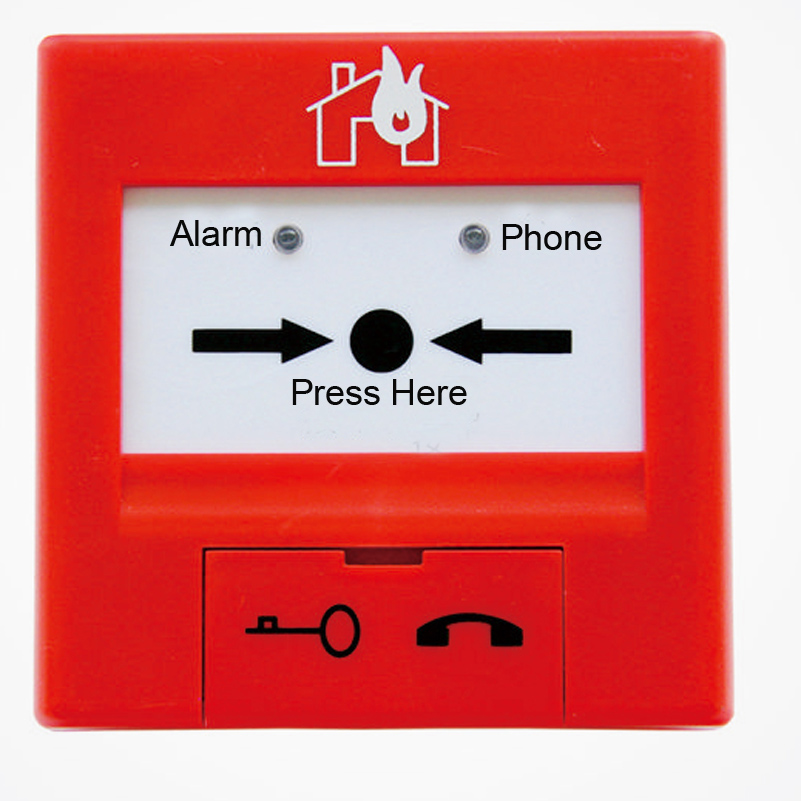

TCSB5204H Manual Call Point
Installed in public places, the call point has a phone jack
When there is a fire, pressing the frangible element on this MCP can send fire signal to fire alarm control panel
Alarm by pressing, reset by a special key
Non-polarized two-wire to the controller
Electronically addressed
Reusable
Technical Specifications
Operating voltage:
Loop 24V
Operating current:
Standby current: 0.2mA
Alarm current: 0.8mA
Operating Environment: Indoor
Temperature: -10C+55C
Relative Humidity: 95%, non-condensing
Indicator:
Operation/fire warning indicator
Red
Flashes about every 3s when polling
Illuminates after alarming
Telephone indicator
Red
Flashes about every 5s
Programming method: Electronically programming
Code range: one address is within 1255
Material and color of enclose: ABS; Red
Weight: about 120g (with base)
Mounting hole distance: 60mm
Dimension (LWH): 90mm90mm42mm (with base)
