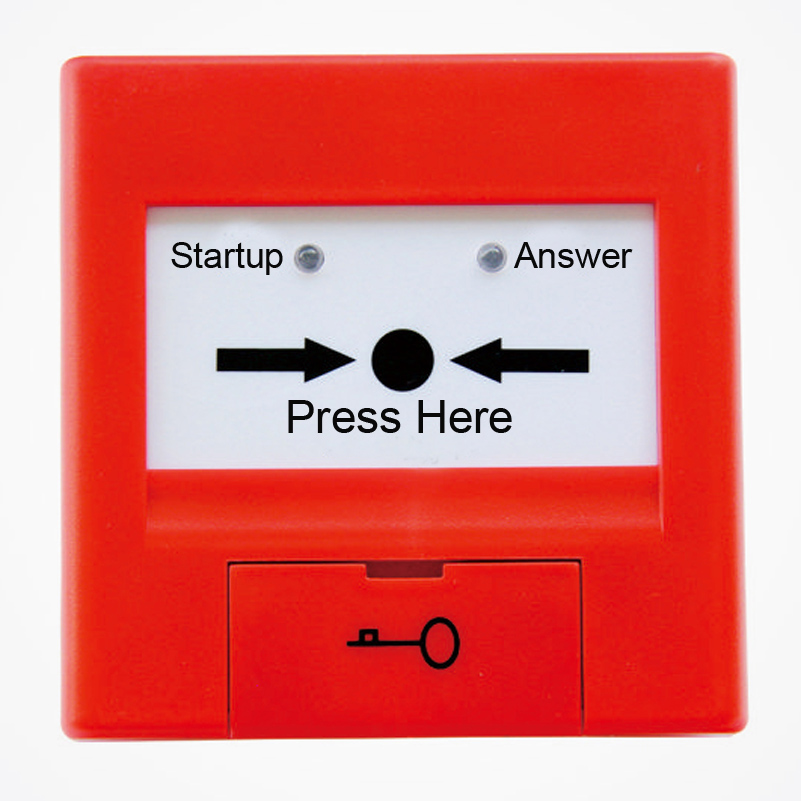

TCXH5205 Fire Hydrant Button for Fire Alarm Security System
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | FOBshenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | netural packing |
Quick Details
- Brand Name: zc
- size: 90mmx90mmx42mm
- material: ABS
- Nominal Diameter: 90mmx90mmx42mm
- Outlet Size: 90mmx90mmx42mm
- Model Number: TCXH5205
- Operating voltage: Loop 24V
- Programming method: Electronically programming
- Code range: one address is within 1-255
- Material and color: ABS; Red
- Mounting hole distance: 60mm
Specifications
Skype firealarm87 /wechat 15220176087
TCXH5205 Fire
Hydrant Button
Installed in Public places; when there is a fire, pressing the frangible element to activate Fire pump; after confirming fire pump having been activated, light the Answering light of the button
Alarm by Pressing, reset by a special key
Four-wire / Six-wire system
Electronically Addressed
Reusable
Technical Specifications
Operating Voltage:
Loop 24V
Operating Current:
Standby current: 0.2mA
Starting current: 1.5mA
Operating Environment: Indoor
Temperature: -10C+55C
Relative Humidity: 95%, non-condensing
Indicator:
Starting indicator
Red
Flashes about every 3s when polling
Illuminates after being activated
Answering indicator
Green
Illuminates after confirming fire pump Having been activated
Programming Method: Electronically programming
Code range: one address Is within 1255
Material and Color of enclose: ABS; Red
Weight: about 120g (with base)
Mounting hole Distance: 60mm
Dimension
(LWH): 90mm90mm42mm (with base)
