Home  >Products Catalog > FRP tanks > High pressure resistants FRP Pressure Tanks

High pressure resistants FRP Pressure Tanks SafeBuy Supplier Member

FOB Reference Price: $ 200
Wholesale: 1,000 Pieces
Supply Ability: 2,000 Meter/Meters per Week
Shipping: 30-40 working days after deposite, by sea
Payment Terms: L/C, T/T
Update Time: 2018/6/1
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: 1:Winding with the crashworthy foam 2:Packed with the double deck carton 3:Using the pallet for th

Quick Details

  • After-sales Service Provided: Overseas service center available
  • Warranty: 3 years
  • Certification: ISO9001-2008
  • Weight: 10g
  • Dimension(L*W*H): 40mm-1000mm
  • Power(W): 50hz
  • Voltage: 220
  • Model Number: W03
  • Brand Name: WJ
  • Medium Material: Active Carbon
  • Type: Water Softener
  • Condition: New
  • HDPE: fiberglass
  • 150psi: high strength epoxy resin
  • Bottom base Polyethylene PE: ISO9001
  • Flexible design: strong workmanship
  • Corrosion resistant: High strength

Specifications


FRP Tank is a kind of nonmetallic composite which is made by resin and fiber glass.

Basic Configuration

Material of Construction

FRP with Polyethylene Inner Shell

Color

Different colors are available

Opening:

Top opening with 2.5"-4" Threaded, or 6" Flange

Maximum Operating Pressure

150 psi (1 MPa)

Maximum Operating Temperature

120°F (49°C)


FRP tanks specifications:


A) Material:

(a). inner shell – Polyethylene (PE) seamless one-piece tank liner

(b). Outer shell – Continuous strands of fiber-glass with high strength epoxy resin

(c). Bottom base – Polyethylene (PE)

(d). Opening – 2.5" precision injected model with threaded opening



B) Working Pressure:



(a) ≤1.0MPa(150PSI)



C) Working Temperature : ≤49°C



D) Maximum Vacuum : 127mmHg(5"Hg).



E) Maximum Temperature : 42C (104F)



F) Certificates: ISO9001



G) Media :  water



H) Warranty:  3 years



Application:home appliances frp tanks for water filter parts and accessories for malaysia indonesia



1) Adopt high-performance resin and glass fiber winding, Liner uses PE plastic, ABS, FRP high quality material to blow molding manufactory, using importing micro-computer controlling equipment to shape, anticorrosion, high or low resistance ,high tenacity, satisfy customers' different applicatioin well.

2) merits: pretty twisting pattern , sophisticated manufacture, long lifetime, etc.

3) dimension: 7''-63" linner ABS/PE , above63″adopt FRP linner

4) opening: 2.5" whorl, 4" whorl mouth, 6″flange

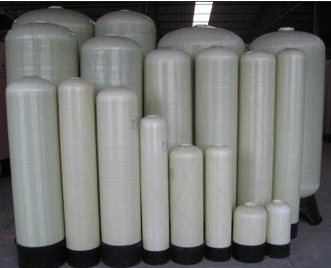

 High pressure resistants FRP Pressure Tanks

Details



1) opening temperature: 1-49°C

2) operating pressure: 150PSI

3) bursting pressure: 232PSI

4) fatigue test: 100.000times incessantly cycle test

5) different inner container: FRP \ PE\ABS

6) opening diameter: 2.5''thread – 6'' flange

7) Certificates : CE ;NSF ; ISO9001 etc.




Color: Different colors are available, blue, grey, natural color, Apricot,Black ect.



Application: All feed water and waste water treatment application, included multi-media filter and softener.


Filament winding FRP pipe possesses the characteristics of lightness, high strength, distinguished corrosion resistance and expedient installation and maintenance etc., which were applied widely in theagriculture, city drain, oil-field system of sewage treatment, electrical plant water circulation, water pipe with electric magma and projects of chemical engineering, metallurgy, and medicine processingetc.


DN: 25mm - 500mm

Pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa, 5.0 Mpa

Excecutive Standard: Fiberglass enwinding enhanced thermoseting resin pipe.
Frp water treatment tank / Frp Pressure tank manufactures / Frp pressure vessel

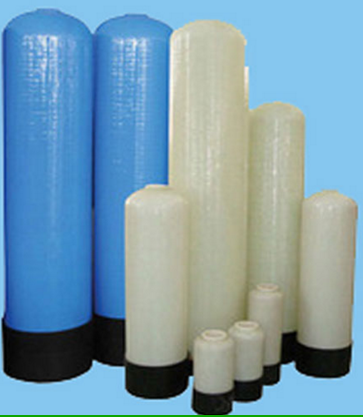

High pressure resistants FRP Pressure Tanks


1. Water Softener;

2. Wide applications;

3. Simple operation;

4. High efficiency.

Type choice

1. Users can choose manual operation control system for saving cost.

2. If users using for 24 hours can accord to water using time choosing for rebirth

3. Uses can according to water quality requirement: first grade multi-media filter, which can remove mud, rust, colloid and suspension in water. Second grade activated carbon filter, which can remove color, olfactory, biochemistry organic in water and encrease the left oxygen value and pollution in water. Third grade equip softener equipment.

4. Effluent water capacity achieves the water supply of national low-pressure biol.

5. Time control- type;flow control- type. In working, apply single-tank, double-tank and multi-tank etc. other varied combination method. When choosing, users can choose as their needs. In operation, it has not only automatic function, but also is manual operation

Technical parameters:

Water pressure: 0.18-0.6Mpa
Working temperature: 1°c-55°c

Hardness of raw water: <8mmol/L
Operation method: manual/automatic

Hardness of effluent water: ≤0.03mmol/L

Control method: time or flow

Working electric: 220V/50Hz


All feed water and waste water treatment application, included multi-media filter and softener



Applied in the chemical industry and chlorine industry, the product had been highly appraised by customers.
