Big barrel 3-5 gallon water bottle fillers/ filling machine in low cost

FOB Price:	2,000.00 - 30,000.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	Wooden package based on FOB SHANGHAI terms
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Quick Details

Type: Filling Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE, ISO
Weight: 1t
Dimension(L*W*H): 3100x900x1650mm
Model Number: QGF-300
Brand Name: TSP
Power: 3KW
Voltage: 380V/50HZ
Driven Type: Electric
Automatic Grade: Automatic
Packaging Material: Wood
Packaging Type: Barrel
Application: Beverage
Condition: New
Name: Big barrel 3-5 gallon water bottle fillers/ filling machine in low cost
For bottle: 3-5 gallon or 18.9L
Capacity: 80-2000BPH
Cap remover: de-capping by machine
Cap sealing: shrink by steam
Controlling: PLC+Touchscreen
Pneumatic parts: Taiwan
Material: Sus304
Feature: High quality low cost
Warranty: two years

Specifications

Big barrel 3-5 gallon water bottle fillers/ filling machine in low cost

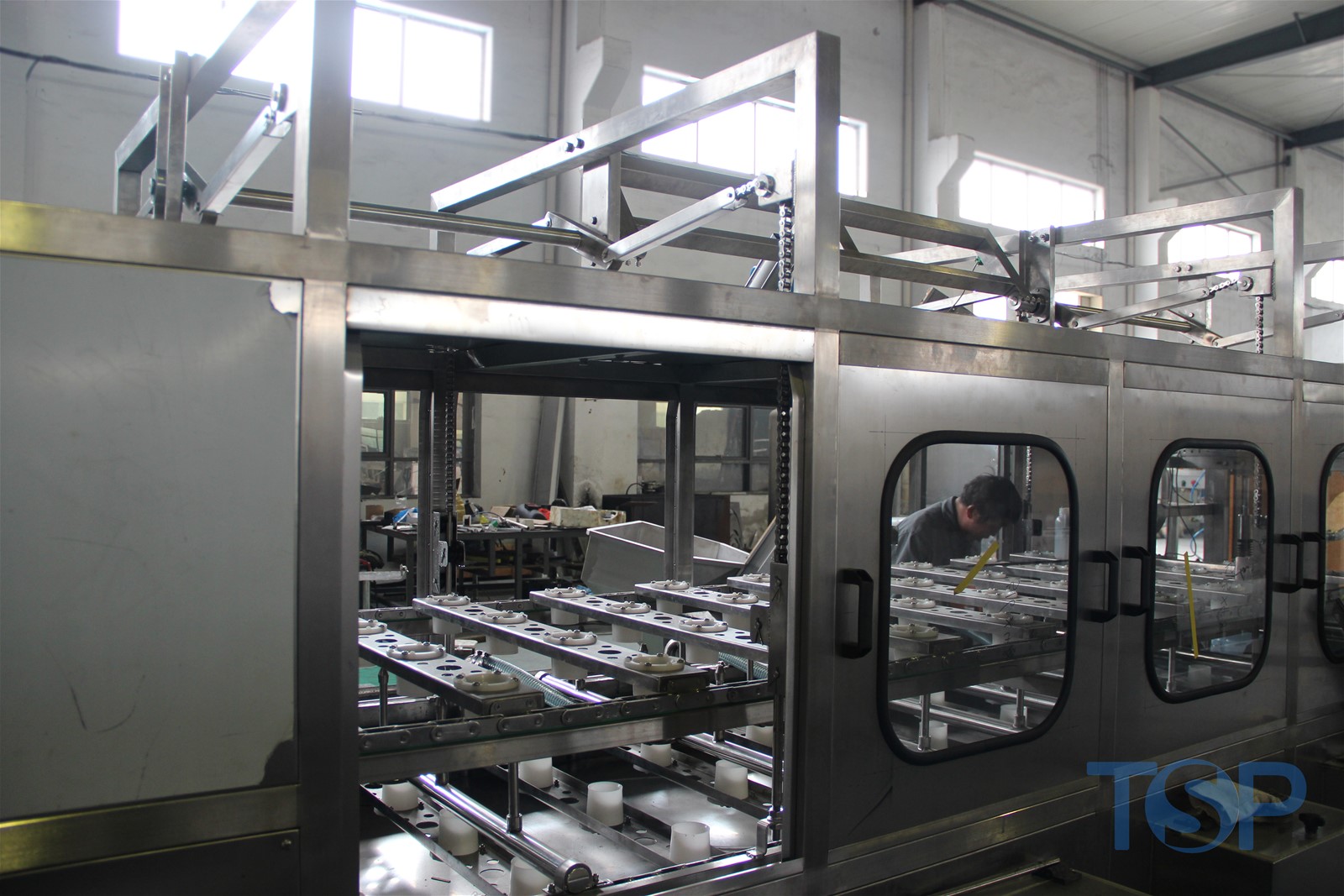

1. Model QGF series Barreled filling machine is combined with washer, filler and sealer machine on one unit, controlled by PLC

2. It is an ideal equipment to produce mineral water, distilled water, pure water production. The completed machine is full automatic, made of 304S.S. or 316

3. You can match with de-capper, leakgae inspection, cap loading and barrel loading device, shrinking film machine, coding system to be a complete full-automatic water barrel filling production line.

4. All the components are from international famous brands like Mitsubishi, Airtac. etc.

5. Capacity range: 100bph , 300bph, 450bph, 600bph, 900bph, 1500bph,

5 gallon water filling station machine

TYPE	QGF-80	QGF-120	QGF-240	QGF-300	QGF-450	QGF-600
Filling heads	1	1	2	2	3	4
Barrel Size (mm)	Φ276×490	Φ276×490	Φ276×490	Φ276×490	Φ276×490	Φ276×490
Capacity (b/h)	80-100	120	240	300	450	600
Gas Pressure	0.4-0.6Mpa
Gas Consumption	0.6	0.6	0.8	0.9	1.8	2.5
Power (KW)	1.38	1.75	2.1	3.0	3.8	6
Voltage	380V/50HZ
Outline Size (mm)	3100×650×1550	3190×650×1550	3100×900×1650	3100×900×1650	3550×1100×1800	3800×1100×1800
Weight (kg)	680	800	800	1000	1600	2300
Barrel Capability	18.9 L
