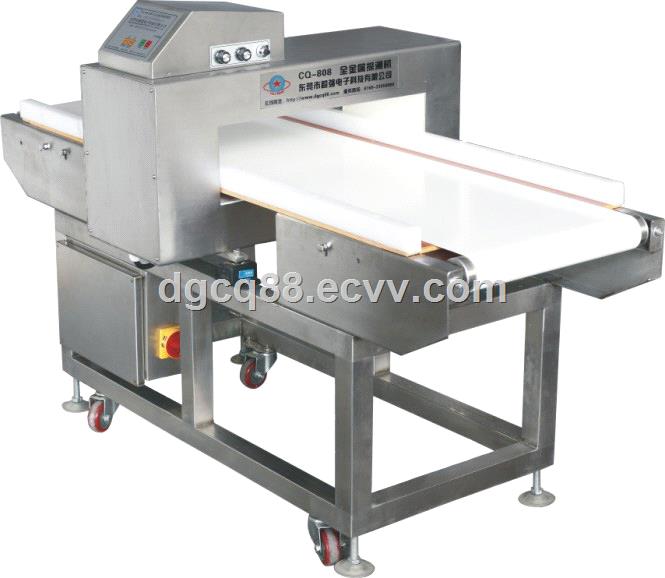

metal detector needle detector for food CQ-808

FOB Price:	2,800.00 - 2,900.00 USD/Set
Supply Ability:	100 Set/Sets per Week
Shipping:	within 5-7days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Wooden case with bubble bag inside

Quick Details

Model Number: CQ-808
Brand Name: Chao Qiang

Specifications

CQ-808 full metal detector

Features:

1.Adopt double circuit signal detection circuit merging technology, high sensitivity and super anti-interference.

2.Having the double circuit signal demonstration function.

3.Signal processing is done by digital circuits. Adjustment is simple,

4., 10 levels independent adjustment for ferrous metal and non-ferrous metal.

5.Can avoid missing detection, when several signals are passing, the machine will automatically record the signal amount, so it won't have missing detection.

6.a power utilization system capable of stopping the machine if no load operation.

8., the operational use of extremely reliable and user-friendly.

Application:

Mainly used in food, aquatic products, toys, clothing, footwear, chemicals, leather, knitting and other industries, for the detection of inclusions or lost in the raw materials or products broken needle, wire and other metals, .

Technical parameters:

Type		Standard			Non-standard
		300-450			500(Customized)
Detection Height(mm)		100	120	150	200	250	300	350	400
Sensitivity	Fe(mm)	0.8-1.0	1.0-1.2	1.2-1.5	1.5	2.0	2.5	3.0	3.0
	SUS(mm)	1.5	2.0	2.5	3.0	3.5	4.0	4.5	5.0
	Non-ferrous(mm)	1.5	2.0	2.5	3.0	3.5	4.0	4.5	5.0
Alarm Method		Audible and visual alarm, stop automatically
Material		Full 304 stainless steel
Dimension		1600x840x1005
Weight		About 250kg
Power		220v 50Hz, 120W
Load Capacity		5-25kg, transfer speed: 24-30M/min
Remarks	Above parameters come from experimental values of the standard state, the concrete sensitivity would be affected according to the products being detected, working condition and also the different positions the metal mixed with.
