Home  >Products Catalog > Paper Bag and Envelope Maker Model WF Series

Paper Bag and Envelope Maker Model WF Series SafeBuy Supplier Member

Shipping: 30% advance payment be paid by TT, balance paymen shall be paid before shipment
Payment Terms: L/C, T/T
Update Time: 2018/2/13
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details: Standard export package

Quick Details

  • Type: Other
  • Dimension(L*W*H): depends on machine size
  • Weight: depends on machine size
  • Power: 5.2kw
  • Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
  • Packaging Material: Wood,PLYWOOD
  • Packaging Type: Cartons
  • Application: Machinery & Hardware
  • Condition: New

Specifications

MAIN STRUCTURE FEATURES

Envelope Making Machine Model WF series, an important standard model in our series, is designed mainly for the envelopes of large of medium-sized gumming(cold glue)with protection strip. It is characterized by its high efficiency, stable function, easy operation and quick adjustment. It is suitable to the needs of processing thick paper.

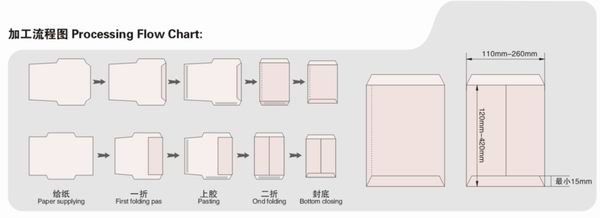

Air suction type reliable bottom paper extracting structure is available to supply paper constantly. With air suction roller and barrier system, it is available to accomplish at high speed stability and fold accurately. The width of the envelope or flat bag can be reset lightly when the machine is working. Rotary glue mechanism assures the distribution of the glue homogeneous and the cleaning is convenient with the finished counting group organization.

TECHNICAL PARAMETER

Model

WF-160

WF-180

WF-220

Max. Working speed

10000pcs/h

10000pcs/h

10000pcs/h

Thickness of paper

60-157g/m2

60-157g/m2

70-157g/m2

Envelope specification(mm)

Max: 229*324

Min: 110*120

Max: 260*420

Min: 110*120

Max: 324*458

Min: 110*120

Motor power

2.2kw

2.2kw

2.2kw

Air pump power

3.0kw

3.0kw

3.0kw

Weight of machine

1800kg

1800kg

2500kg

Dimension(L*W*H)

( mm)

2500*1100*1500

2500*1400*1500

3000*1250*1600
