HWS-600TM Hydraulic Wall Saw..

Supply Ability:	1 Set(s) per Day
Shipping:	15 days
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shaanxi in China
Packaging Details:	wooden boxes

Quick Details

Type: Hacksaw
Material: Diamond
Brand Name: OUKAI
cutting spee: 0
line spee: 0
Model Number: HWS-600TM
Type: Hydraulic Cutting Tools

Specifications

OUKAI new heavy duty full hydraulic swivel arm wall saw with automatic feeding and downfeeding regulation and self-adjustable roller guide system for cutting depths up to 710 mm

Other features
1.Torsion-free tracks in different lengths to guarantee an exact and vibration-free operation of the saw unit.
2.the 360 ° devoting arm guarantees the full utilization of the tracks.
3.the guiding system on rolls allows maximum accuracy while cutting with very low wear of the rolls.
4.the remote control guarantees convenient and safe operation.

Techincal data

1.Specification

Max start up blade diameter: 800mm

Max using blade diameter: 1600mm

Max cutting depth: 710mm

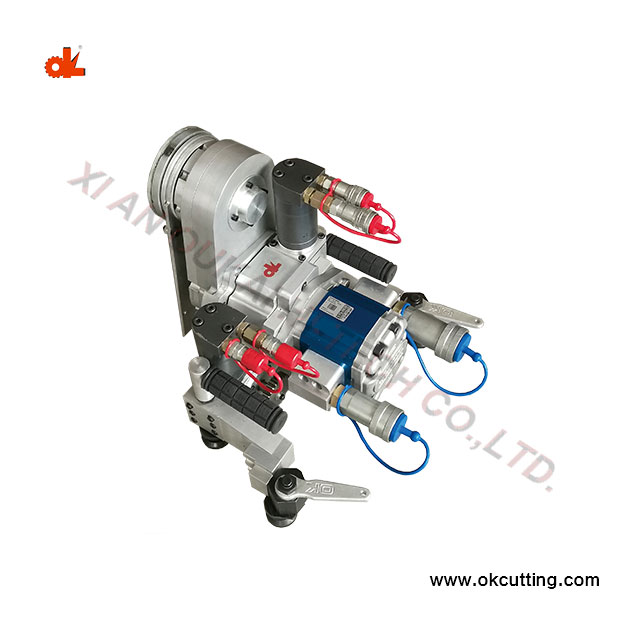

2.Wall Saw head

Output axle diameter: 60mm

Max working pressure: 200bar

Max fuel flow: 80L/min

Blade cutting method: Automatic

Speed of blade:500/900/1400rpm

Weight: 28kg

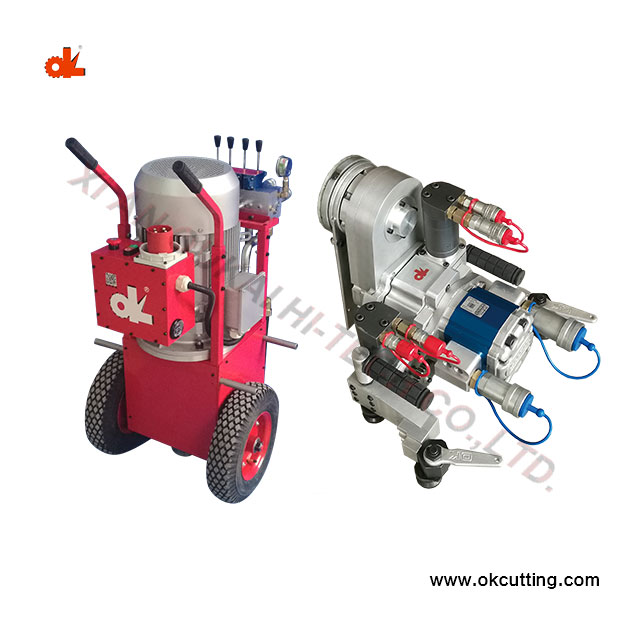

3.Hydraulic power unit

Input power: 25kw

Voltage: 380V/400V,3-phase,50HZ

Control method: Hydraulic automatic

Weight (include Oil):165kg

Dimensions(L*B*H): 65*60*100 cm
