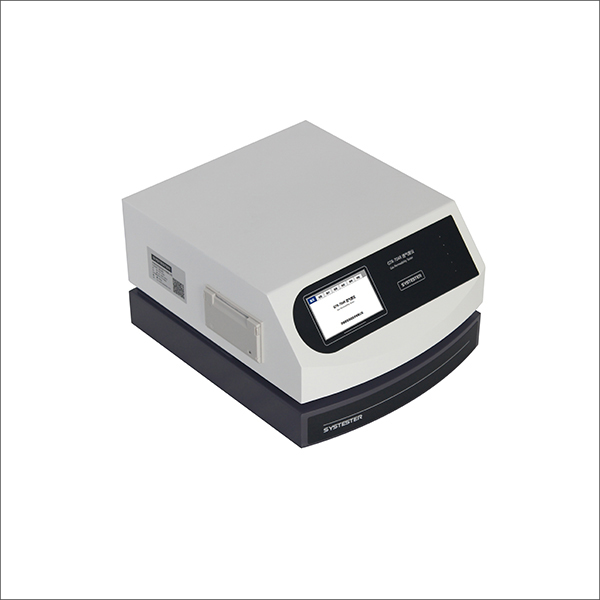

Gurley Seconds Battery Separator Film Test New Energy/ Electric Vehicle Industry
| FOB Price: | 1.00 - 5,000.00 USD/Ounce |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Year |
| Shipping: | Qingdao |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden case |
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Brand Name: SYSTESTR
- Warranty: 1
- weight: 63
- Model Number: GTR
- Test range: 30-60,000 Gurley seconds
- Resolution: 0.1 Gurley seconds
- Specimen amount: 1 independently
- Differential Pressure: 0.01kPa-20kPa(STD:1.22kPa)
- Accuracy: 0.01kPa
- Test Area: 1.0in2. (0.25in2, 0.1in2 optional)
- Sample Thickness: <=5mm
Specifications
Gurley Seconds Battery Separator Film Test New Energy/ Electric Vehicle Industry
Application:
Suitable for the analysis and determination of the porosity, the air permeance and the air resistance of various kinds of battery separation membranes, paper, paperboard, textiles, non-woven fabrics and other materials.
Gurley Seconds Battery Separator Film Test New Energy/ Electric Vehicle Industry
Features:
L Standard Gurley, Low Pressure Gurley, High Pressure Gurley
L Sheffield units, Bendtsen units
L Interchangeable test heads
L Output in seconds, other unit optional
L Embedded system, remote service
L Touch screen operation
L Test data and curve real time display
L Built in data query function
L Built in micro-printer to print reports
L Automatic overload protection.
L Highly accurate sensors to ensure the accuracy and repeatability.
L Swagelok piping system, to ensure system tightness and long-term stability
L Advanced control device, reliable operation and long service life
L Standard communication interface, configurable professional computer software
L the calibration can be traceable to ensure the measurability of the test data
L Support DSM system
Gurley Seconds Battery Separator Film Test New Energy/ Electric Vehicle Industry
Technical indexes:
| Test Range | 3060,000 Gurley seconds(Standard) |
| Resolution: 0.1 Gurley seconds | |
| Sample Amount: 1 (Standard); 3 can be customized. | |
| Differential Pressure: 0.01kPa20kPa(STD: 1.22kPa) | |
| Accuracy | 0.01kPa |
| Test Area | 1.0in2. (0.25in2, 0.1in2 optional) |
| Sample Thickness | 5mm |
| Test Gas | Air, O2, N2, CO2(Self-provide) |
| Gas Resource | 0.3MPa1.0MPa |
| Interface | 6mm |
| Dimension | 320mm(L)380mm(D)410mm(H) |
| Power Supply | AC 220V 50Hz |
| Net Wt | 25 kg |
