>Products Catalog > tft lcd > 7 inch TFT LCD display module 800*480 with capacitive touch panel
7 inch TFT LCD display module 800*480 with capacitive touch panel
| FOB Price: | 24.00 - 30.00 USD/Piece |
|---|---|
| Supply Ability: | 950,000 Piece/Pieces per Month |
| Shipping: | depends |
| Payment Terms: | T/T, Other, paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Packing method depends on the quantity. Shipping by DHL UPS FEDEX TNT |
Quick Details
- Type: TFT
- Model Number: TST070CBOT-02W
- Brand Name: TSD
- Display size: 7.0 inch TFT LCD display
- Driver IC: HX8264/HX8664
- interface: RGB(TTL)
- Outline dimemsion: 164.9x100.0x6.7
- Active Area: 154.08x85.92
- brightness: 500cd/m2, 1000cd/m2 available
- viewing direction: 12H
- Application: CAR gps.PDA,doorphone,outdoors,etc
- Resolution: WVGA,800x480
Specifications
7 inch TFT LCD display module 800*480 with capacitive touch panel
Specification:
| Item | 7 inch tft lcd with touch panel | |
| Part No. | TST070CBOT-01P, 7 inch lcd panel | |
| Outline Dimension(mm) | 164.9x100.0x6.7 | |
| Display Area(mm) | 154.08x85.92 | |
| Resolution(dots) | WVGA, 800*RGB*480 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
| Touch panel | 96% transmittance RTP | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal white,Transmissive, 7 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | 12H | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | Digital | |
| Module lifetime(Hours) | 50,000-100,000 | |
About us:
Team Source Display has been specializing in character lcd moudles, COG/COB graphic lcd modules, and TFT LCD Modules, as well as customized TN, HTN, STN, FSTN, and DFSTN panels since established in 2004.
We got ISO9001:2008 certificate and ROHS certificate in 2011.
Our Qualification and reputation:
Got ISO9001:2008 certificate and ROHS certificate.
Have agents and parters in the USA, Isreal, Taiwan, India, etc. Have end customers like Audi, Pioneer, JCB, Sonel, Mortara, Sino, Meta system etc
TFT LCD Module series:
1. Our standard tft lcd module size:
1.44", 1.77", 2", 2.36" , 2.4", 2.6", 2.8", 3", 3.2",
3.5", 4"(3.97"), 4.3", 5", 5.6", 5.7", 7", 8", 10.1"
2. Developed 4.3", 5.0", and 7" TFT module with SSD1963 controller.
3. Developed 2.4'',2.8'',3.2'' 3.5'' small tft lcd with ZIF FPC connection.
4. Standard CTP for 3.2'' 4.3",5.0" 7''.
5. High(96%) transmittance RTP for 4.3" and 7". Common RTP only with 78%-80% transmittance.
6. Can make customized CTP.
7. 3.5" transfletive tft lcd, sunlight readable.8. We are a medium-sized enterprise in a rapid and stable development, we understand to make products with satisfied quality and reasonable price is the key to win more customers.
OEM and customization welcome!

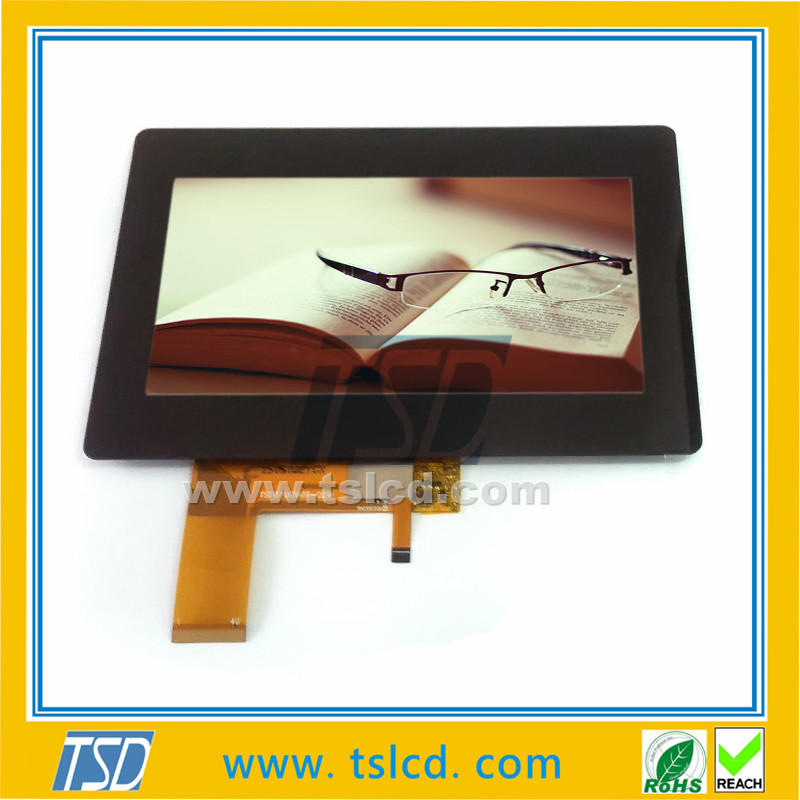

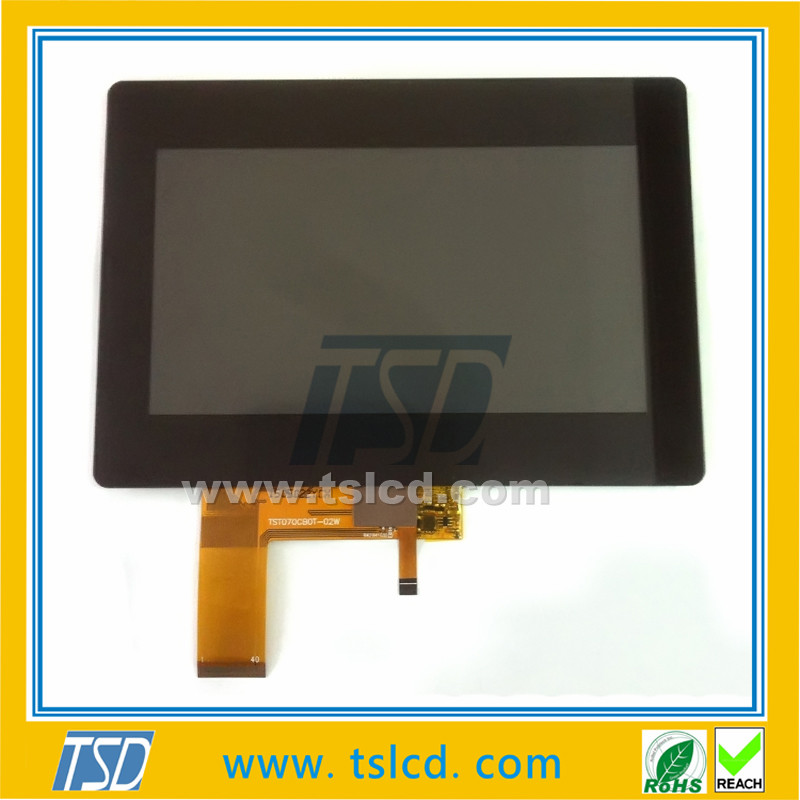

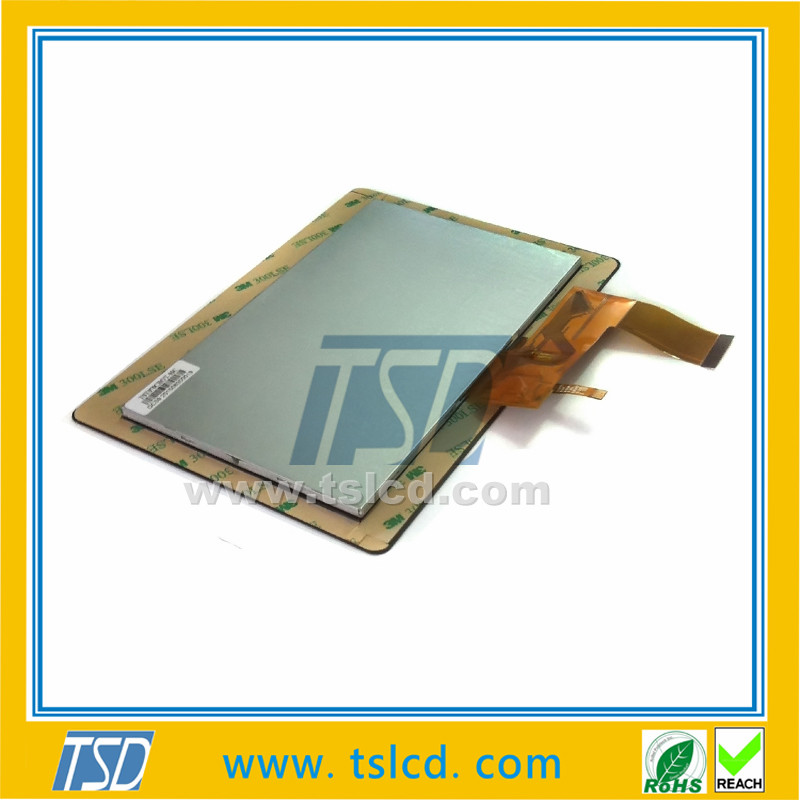

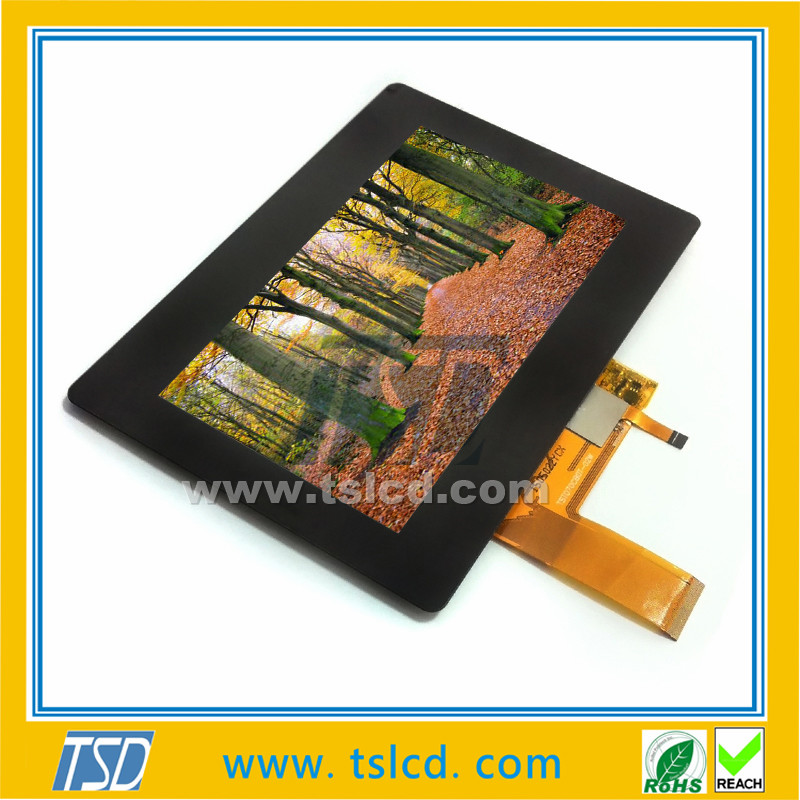

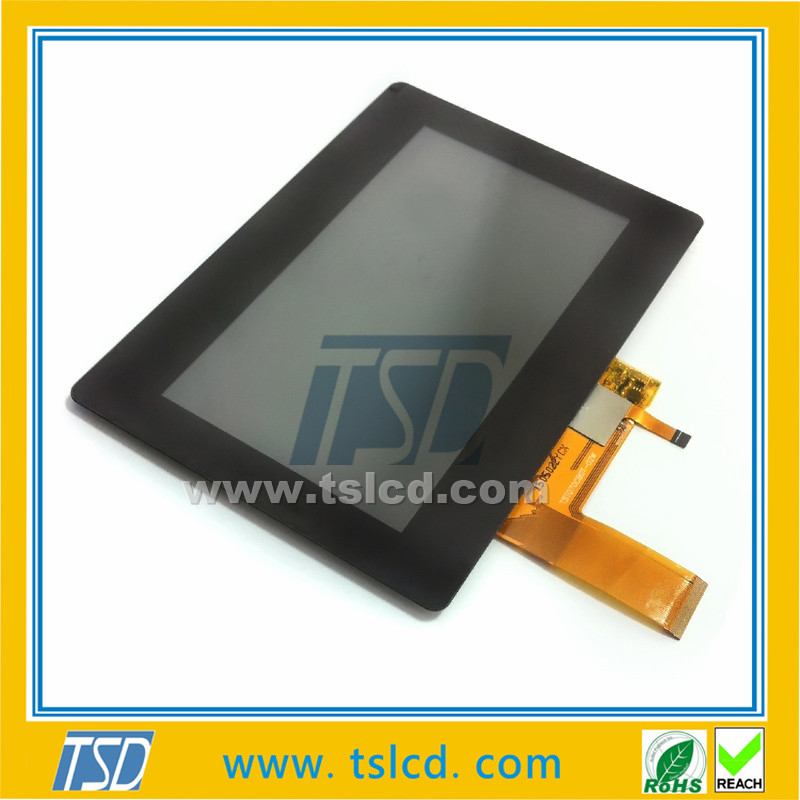

The pictures of 7'' inch tft lcd module:
Packaging & Shipping
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx, TNT, EMS Express.
Application:
Our factory:
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
