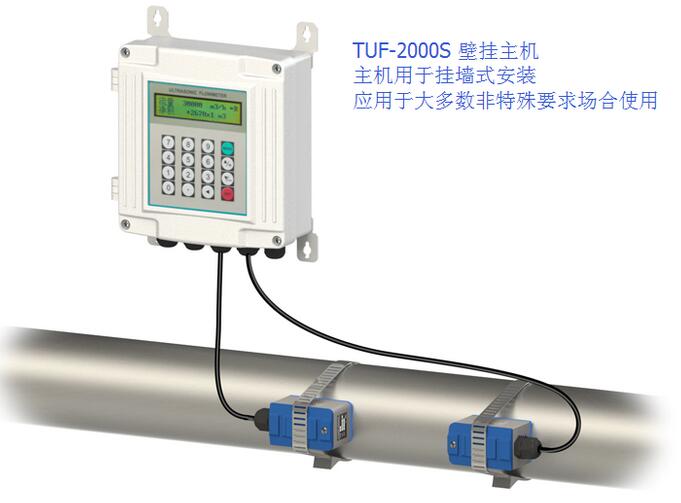

wall mounted type ultrasonic flow meter with clamp on sensors

FOB Price:	460.00 - 2,000.00 USD/Set
Supply Ability:	500 Set/Sets per Month
Shipping:	delivery time 5-7days shipment terms: Fedex, DHL,UPS
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Protection case

Quick Details

Model Number: 26
Measurement Range: Dn25~Dn6000mm
Data Storage: 32k Bit Built-in Data Storage,
Power Supply: 24VDC or 220VAC or Battery
LCD Display: Instant Flow,Totoal Flow,Flow Velocity and Working

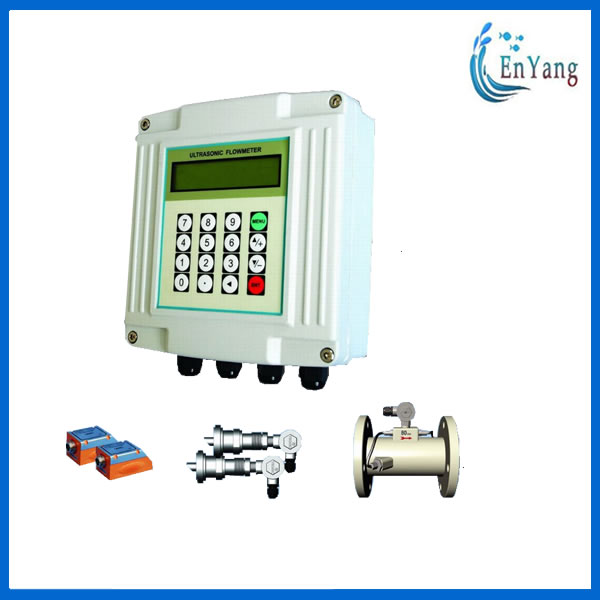

Transducer: Clamp and Bracket Type,Insert Type and Pipe Type
Temperature: -30-160c
Output: 4-20mA or Pulse Output or Relay Output
Interface: RS485 or RS232
RS485 or RS232: Steel, Stainless Steel, Cast Iron Pipes, Cement, P
Velocity: 32 m/s

Specifications

ultrasonic flow meter

Product Introdcution

The ultrasonic flow meteris designed to work with clamp-on transducers to enable the flow of a liquid within a closed pipe to be measured accurately without needing to insert any mechanical parts through the pipe wall or protrude into the flow system.
Using ultrasonic transit time techniques, the PHILEMON-H is controlled by a micro processor system which
contains a wide range of data that enables it to be used with pipes with an outside diameter ranging from 15mm up to 6000mm (depending omodeand constructed of almost any material. The instrument will also operate over a wide range of fluid
temperatures.

Application

Water, including hot water, chilled water, city water, sea water and more.
Sewage and drainage water with small particle quantity
Oil, including crude oil, lubricating oil, diesel oil, fuel oil, etc.
Chemicals, including alcohol, acids and more.
Solvents
Beverage and food processors
HVAC hot and cool water, water/glycol solutions
Water and waste treatment
Power plants (nuclear, thermal & hydropower) heat energy boiler feed water
Energy consumption supervision and water conservation management
Metallurgy and mining applications (e.g., acid recovery)

Specifications

Linearity	0.5%
Repeatability	0.2%
Accuracy	±1% of reading at rates>0.2 mps
Response Time	0-999 seconds, user-configurable
Velocity	±32 m/s
Pipe Size	15mm-6000mm
Totalizer	7-digit totals for net, positive and negative flow respectively
Liquid Types	Virtually all liquids
Security	Setup values Modification Lockout. Access code needs unlocking
Display	4x8 Chinese characters or 4x16 English letters
Communication Interface	RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.
Transducer Cord Length	Standard 5m x 2, optional 10m x 2
Power Supply	3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger
Data Logger	Built-in data logger can store over 2000 lines of data
Manual Totalizer	7-digit press-key-to-go totalizer for calibration
Housing Material	ABS
