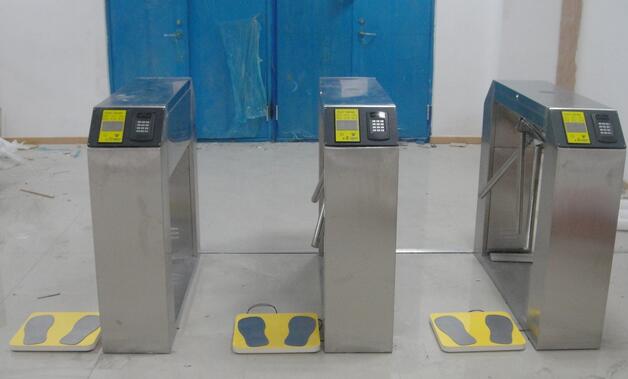

ESD (Electronic Static Discharge) Keypad RFID Tripod Turnstile Access Control System

A. Body Static Tester PE168-STG (resistance display and output):

the tester according to GJB 3007-97, SJ / T 10694-2006 and ANSI ESD S20.20 standard production, is able to quickly and easily test a wrist Strap and foot ring, conductive shoes or wearing anti-static shoes devices Circumstances, practical measurement range of 0.1MΩ ~ 1000MΩ, less than 10% Full scale accuracy. Tester operation is very simple, green values indicate Normal, yellow values are expressed as close to the limit value, while red Indicates that the test failed value (specific methods see test instructions). the user can set the relevant parameters required tests.

1. Test the resistance line with international standards, the standard gear can Be set, you can test a single line and double wrist band;
2. Touch the test, not for a key or button type, avoidContactwith bad or no Prolonged use;
3. the tester should distinguish between left and right foot pedals to comply with international norms, it can not only be a foot pedal to the metal for Testing;
4. between static tester and control system signal cable pluggable, convenient Static tester censorship when disassembly.
5. the test results with the tester near failure alerts, when the test results below the lower limit or above the upper limit, the tester screen will use measured Resistance value is displayed in red. When the test results (but not adjacent to a standard higher than the high standard or below the low standard) between the past and the level of the upper and lower standard, will use yellow shows the measured resistance value (in this case, although do reminders, but still Qualified). When the test results within the upper and lower limits in the past, will be used to display the measured resistance value of the green;
6. When the sound is turned on, when any were tested failed, the buzzer will Sound three times, all when qualified, chirping loudly;
7. the self-LCD touch screen, the manager can easily set a password ESD Resistance standard and nearly fail to remind resistance standards. Good Resistance to standard display settings on the LCD screen, easy to use staff Know the current resistance level of standard use. Set a good resistance will Be displayed in the LCD screen a small box, managers can clearly know now set Resistance (blue font for the low-end resistance standard, red font for high Resistance standard)
8. Test speed, stand-alone use within one second complete results showed, Display digitized resistance and distinguish colors (red exceeded, nearly fail Yellow, green qualified);
9. Wrist strap jack hole tester more than double the reserve, and have single, Double perforated wrist, and separately displayed on the LCD screen;
10. the metal shell, the test button is touch-sensitive, non-ordinary button Shrapnel style, durable.
