>Products Catalog > CCTV Mini Camera > 420TVL Mini High Security Night Vision Camera With Flat Cone Pinhole Lens

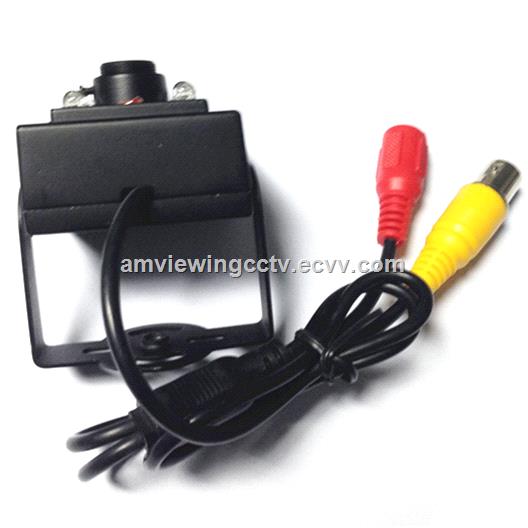

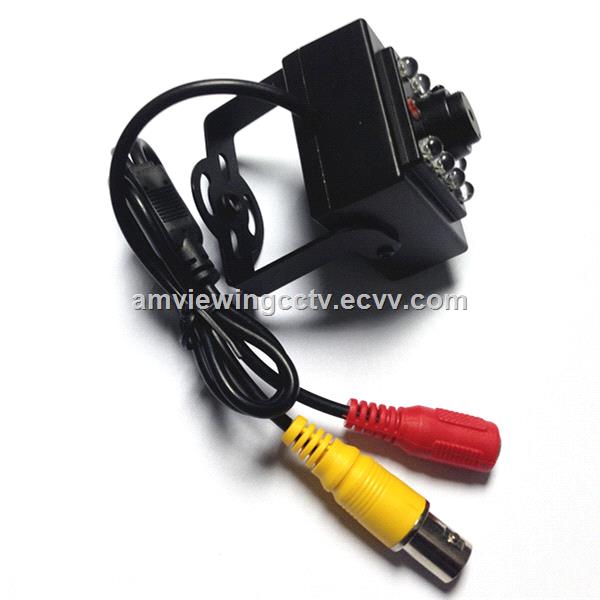

420TVL Mini High Security Night Vision Camera With Flat Cone Pinhole Lens
| FOB Price: | 1.00 - 99.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Month |
| Shipping: | 2-5 work days for samples;6-25 work days for formal order. |
| Payment Terms: | T/T, Western Union, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Color Box,Neutral Packing,Export Carton |
Quick Details
- Special Features: Night Vision
- Technology: Infrared
- Sensor: CCD
- Style: Mini Camera
- Type: Analog Camera
- Model Number: AV-ML140CP2
- Brand Name: MiyeaEye
- Resolution: 420Tvl
- Lens: 3.7mm flat cone pinhole lens
Specifications
420TVL Mini High Security Night Vision Camera With Flat Cone Pinhole Lens
Model
AV-ML140CP2
Image Device
1/3" Sony CCD
Horizontal Resolution
420TVL
Minimum Illumination
0Lux(LED ON)
Effective Pixels
PAL:500(H)*582(V);NTSC:510(H)*492(V)
Scanning System
PAL: 625 Lines, 50 Field/Sec;
NTSC: 525 Lines, 60 Field/Sec
S/N Ratio
More Than 48dB(AGC off)
Electronic Shutter
PAL:1/50~1/100,000 Sec;
NTSC:1/60~1/100,000 Sec, auto
Gamma Characteristic
0.45
White Balance
Auto
Lens Option
3.7mm flat cone pinhole lens
BLC
Auto
AGC
Auto
Sync System
Internal Synchronization
Video output
1Vp-p 75 Oms , Negative
Power Consumption
12V±10%DC, 50mA
Operation Temperature
-10°C ~ + 50°C, RH 95% Max
Storage Temperature
-20°C ~ + 60°C, RH 95% Max
Housing
Black
Dimension
40*40mm
Weight
50g
Supplied Accessories
User
manual,cable,screw,bracket
Model:AV-ML140CP2
Lens Option:3.7mm flat cone pinhole lens
420TVL, 480TVL, 550TVL, 650TVL, 700TVL optional;
Night Vision Mini Camera, 10PCS invisible light Led lamps
