CDM4160 - Pre-calibrated module for carbon dioxide
| FOB Price: | 0.10 - 1.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece(s) per Month |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Hong Kong in China |
|---|
Quick Details
- Output: Analog Sensor
- Usage: Gas Sensor
- Model Number: CDM4160
- Brand Name: Figaro
- Accuracy: Approx.+/-20%
- Power supply: DC 5.0 +/- 0.2V regulated
Specifications
CDM4160 - Pre-calibrated module for carbon dioxide

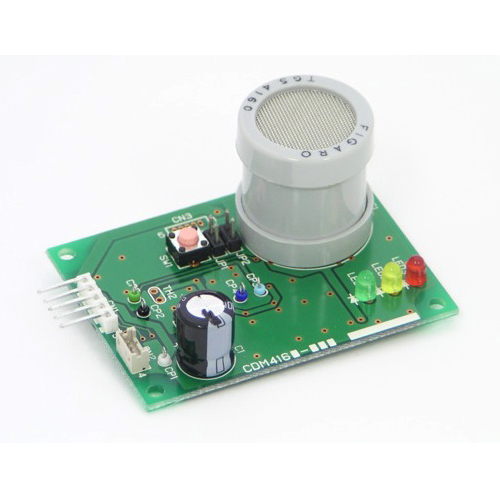

CDM4160 is a new unit which uses TGS4160, Figaro's durable solid electrolyte CO2 sensor. Due to Figaro's proprietary idea for signal processing with a microcomputer,no maintenance is required for this module. By application of DC voltage to the module, an analog output voltage proportional to CO2 concentration can be obtained.
The module can generate a control signal based on a user-selectable threshold concentration. The features mentioned above make this module ideal for air quality control applications in homes, offices and factories as well as in the field of agriculture.
Features:
* High selectivity to CO2
* Long life
* Maintenance free
* Pre-calibrated
* Low cost
* Wide detection range
* Excellent durability
Applications:
* Indoor air quality control in offices, homes, and factories
* CO2 monitors
* Agricultural applications

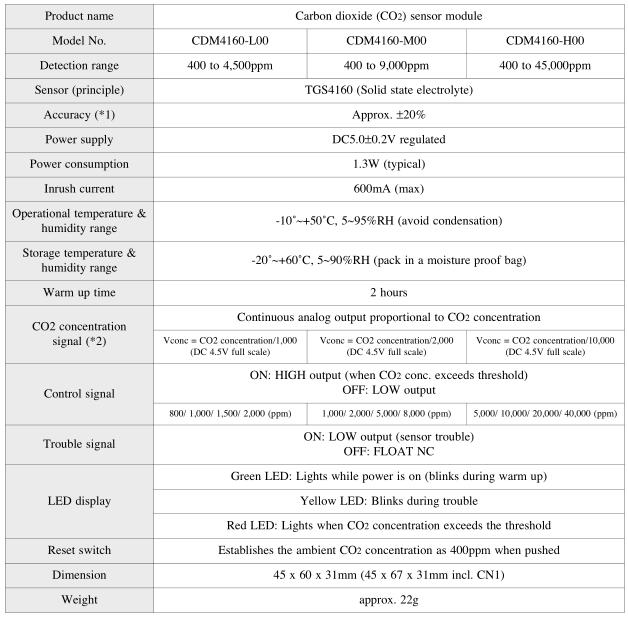

Specifications:
Note 1: Assumes benchmark is set accurately at 400ppm of CO2 . This value does not contain long term drift.
Note 2: Inthis module, the CO2 conentration is calculated by measuring the relative change of sensor output at the measuring point from sensor output in clean air (assumed to be 400ppm of CO2 ).
