Home >Products Catalog > veneer peeling machine > 10 Feet Spindle Less Wood Veneer Rotary Peeling Cutting Lathe

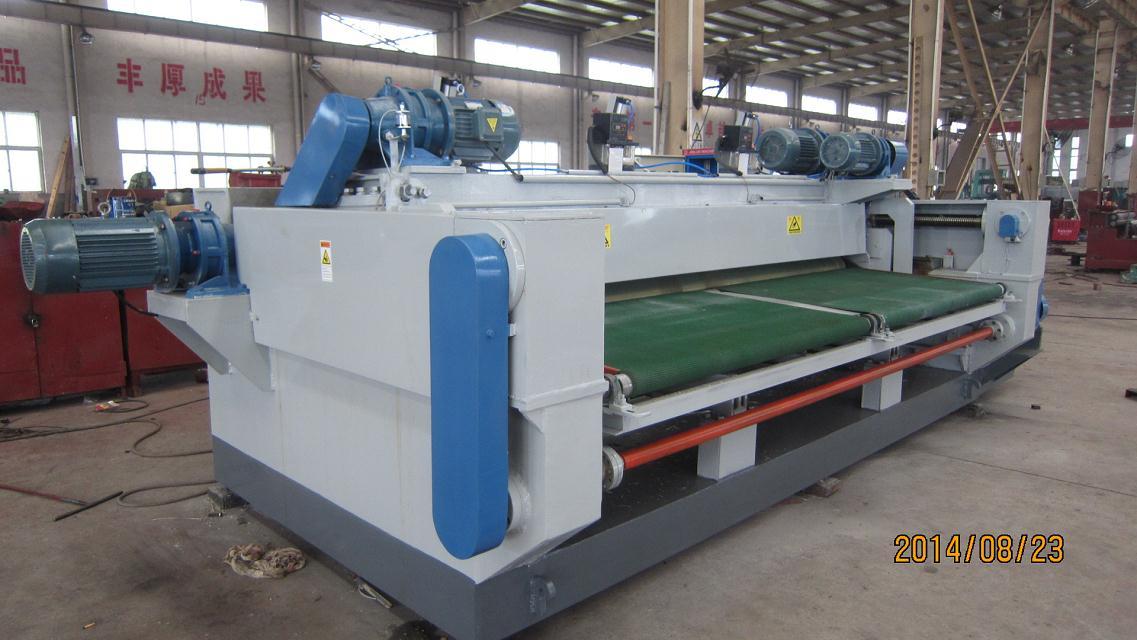

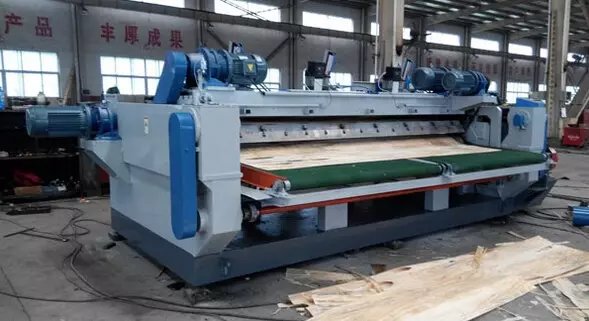

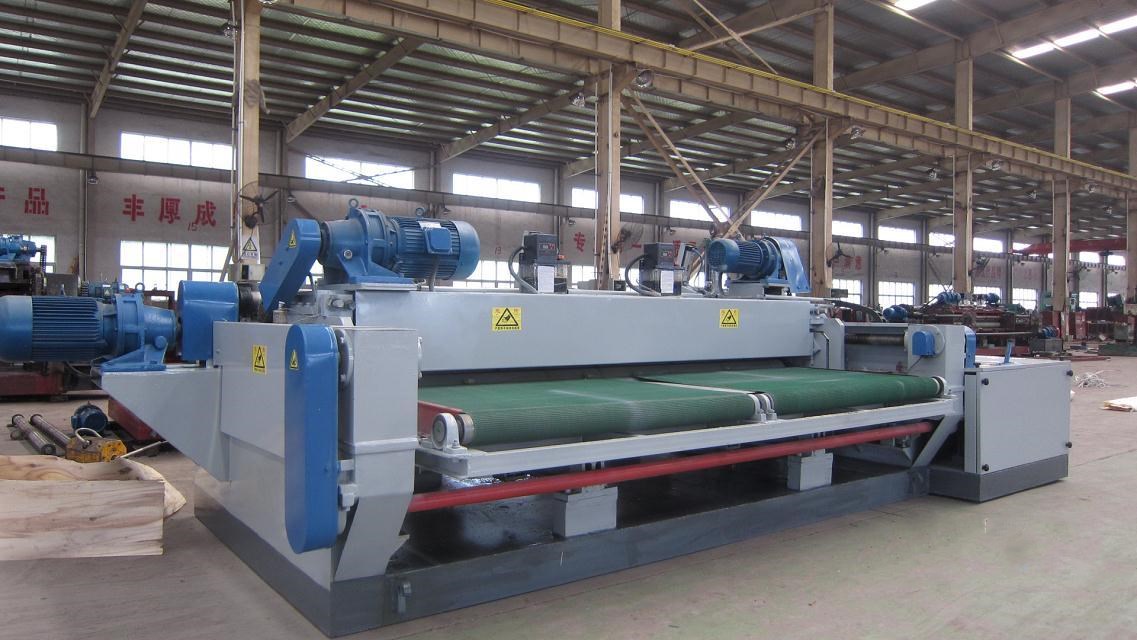

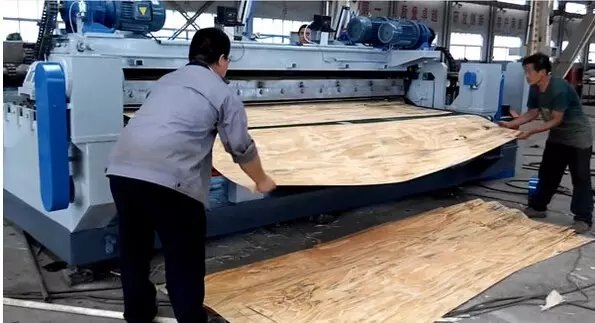

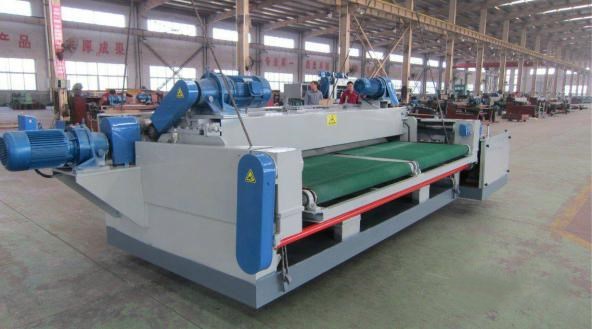

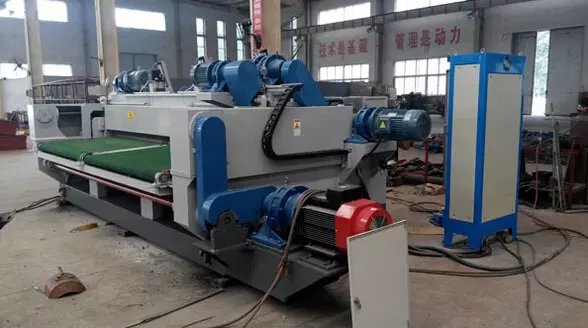

10 Feet Spindle Less Wood Veneer Rotary Peeling Cutting Lathe

FOB Price:	18,000.00 - 19,000.00 USD/Set
Supply Ability:	4 Set(s) per Month
Shipping:	QINGDAO
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	1* 20 GP container

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Certification: ISO9001 / CE
Weight: 12000 KG
Dimension(L*W*H): 6800*2200*1600 mm
Power(W): 45 KW
Voltage: 380 V
Model Number: WWXQ320SY-45F
Brand Name: ZHONGHE
Type: wood veneer peeling cutting
Condition: New
Usage: peeling cutting wood veneer

Specifications

1.Brief Introduction:

this machine is wood veneer peeling cutting all-in-one machine.

2.Techincal parameters:

1) Max peeling length of peeler log:3300 mm

2) Max diameter of peeler log:450 mm

3) Left log diameter:35 mm

4) Veneer peeling thickness:1.0-3.6 mm

5) Size of peeling knife blade:3300*180*16mm

6) Rotary peeling speed:35 meters/min

3.Performance features:
1) CNC control
2) peeling cutting all-in-one machine
