Qingdao Krs Perfect Roof Co., Ltd.

China Manufacturer with main products: Corrugated Bitumen Roof Sheet, Metal Eps Sandwich Panel, Metal Rockwool Wall Panel, Nails Screws, Wall Cladding, Fiber Cement Board, Stone...

Home >Products Catalog > steel structure > Sandwich Panels Eps Roof Panel ROCKWOOL Wall Panel

Sandwich Panels Eps Roof Panel ROCKWOOL Wall Panel

FOB Price:	5.00 - 7.00 USD/Cubic Inch
Supply Ability:	100,000 Gill(s) per Week
Shipping:	10DAYS
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	PALLET

Quick Details

Type: Other Heat Insulation Materials
Model Number: 950
Brand Name: KRS

Specifications

Sandwich Panels

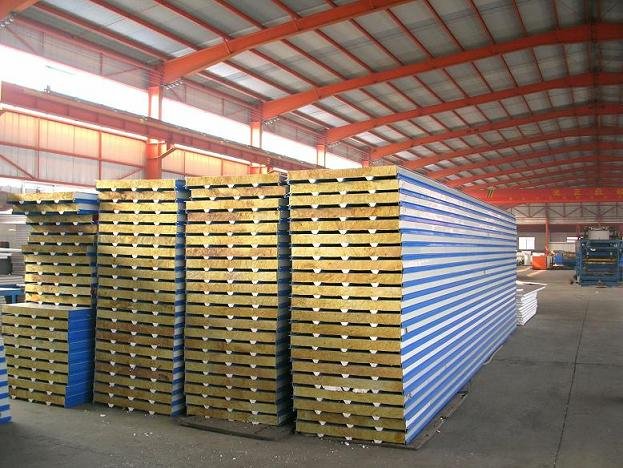

KRS Sandwich Panels consist of an insulation core with facings of flexible materials and are produced on a continuous laminating line using a two part polyurethane adhesive system. They are used in the building of insulated structures such as coldrooms, classrooms, distribution centers, freezers and abattoirs.

the core materials that can be used are expanded polystyrene (EPS), Rock wool, PU/PIC, POLYPHEN and extruded polystyrene (XPS).

the facing materials are pre-painted galvanized steel, Aluminum or GRP.

the standard width of panels is 950mm, 970mm, 1000mm and 1150mm.

Panels can be manufactured to any transportable length.

the panels have a male female INTA lock system and various face profiles can be produced. the profiles included are: flat, fluted, shadow line, micro rib and raised rib.

Advantages and Disadvantages of the different core materials

EPS Core Panel

Advantages

It is the most economic form of insulation

It is extensively used due to its insulation properties and high strength to weight ratio

It has a high resistance to water absorption

the flexible core is not easily damaged

Its relative low weight makes panel installation an easy process

Disadvantages

When exposed to a fire the core material starts softening from 90? C and the panels lose their structural integrity

the core material ignites at 350? C in air

Rock wool Core Panel

Advantages

It has excellent thermal and acoustic properties

It is fire safe

It is chemically inert and CFC and HCFC free

Disadvantages

the price is higher

the panels are fragile and need to be handled carefully

the panels can delaminate with dynamic loading of excessive foot traffic

the core materials are imported which adds 8 weeks lead time to the start of installation

the high panel weight requires mechanical equipment for installation

PU Cored Panel

Advantages

the panels are made using fully cured Polyurethane foam slabs

They are CFC free but not HCFC free

Although Polyurethane is not non combustible, it does not burn in the same way as EPS

Polyurethane panels, when subject to fire, forms a carbonaceous layer which retards further flame spread and maintain integrity for longer

Disadvantages

Polyurethane core can break

the panels need to be handled carefully

When burning, the core of the panel emits toxic fumes (Cyanide gases) Sandwich Panels eps roof panel ROCKWOOL wall panel
