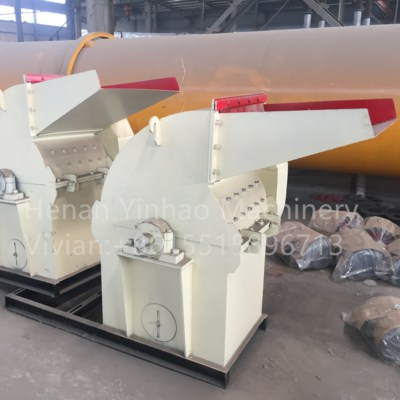

Multifunctional Wood Crusher Firewood Electric Dual-Purpose Bamboo Wood Chopper Sawdust Crusher
Supply Ability: | 500 Set(s) per Week |
---|---|
Shipping: | 15days after receiving the payment |
Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Henan in China |
Packaging Details: | Wooden case and container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: ISO
- Brand Name: YH
- Condition: New
- Dimension(L*W*H): 1200*500*800
- Power(W): 7.5kw
- Model Number: YH
- Name: wood crusher
- Type: wood crusher
- Color: customer
Specifications
Wood crusher machine,wood crushing machine,wood branch crusher,wood branch crushing machine,sawdust crusher,sawdust crushing machine,wood chips crusher,wood chips crushing machine,hard wood crusher machine,hard wood crushing machine.
Sawdust machineIs also called wood crusher set slicing, crushing as a whole, can cut a variety of miscellaneous wood with a diameter of 1-10 cm, waste wood, wood boards, scraps and other materials, more suitable for compressed board, high-density board, plywood, production of particles, mechanical carbon sawdust sawdust processing. At the same time, the equipment can also be used to crush feed, corn stalk, sorghum stalk, bark and leaves of fibrous stalk materials.
Raw Material:
Any types of Agro-forestry waste & forest waste.
Such as wood branch, wood logs, wood waste, wood chips, wood pieces, bamboo, panel, and corn comb, stalks, rice husk, coffee husk, coir pith, jute sticks, groundnut shells.
Work Principle of Wood crusher:
Timber by feed port into, when wood according to contact to peel and cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, cut cut pieces of wood in the peel and cut indoor by cutting knife plate wind leaf produced by the high speed flow send out.
Models of wood crusher:
Model |
Blade (PC ) |
Feeding size (mm ) |
Cutter Dia. ( mm ) |
Blade size (mm ) |
Capacity ( T/h ) |
Spindle speed ( r/min ) |
Power (kw ) |
Physical size(mm) |
420 |
3 |
150*150 |
420 |
150*70*8 |
0.6-1.5 |
600 |
7.5 |
1200*500*800 |
600 |
3 |
180*150 |
600 |
200*100*10 |
1.5-3 |
600 |
15 |
1500*570*1050 |
700 |
3 |
190*200 |
650 |
230*120*12 |
2-6 |
600 |
18.5 |
1500*680*1100 |
800 |
4 |
200*200 |
735 |
230*120*12 |
3-8 |
550 |
30 |
1850*730*1240 |
950 |
4 |
230*250 |
830 |
250*120*12 |
5-10 |
550 |
37 |
1900*820*1800 |
1150 |
4-6 |
300*300 |
1150 |
340*150*14 |
8-13 |
600 |
75 |
2560*1150*1800 |
Service
1 year warranty for whole machine(except for the mould and rollers).
24 hours techinical support online.
Calling service.
Company information
Henan Yinhao Machinery Equipment Co.,Ltd (Original Zhengzhou Huizhong Machine Factory)is located in Zhengzhou. Yinhao Machine Co.,Ltd is a nation-appointed professional manufacturer of Machine for agriculture, forest, fertilizer for many years. Now it becomes a technology enterprise that integrates scientific research, exploitation and manufacture as a whole. this company has not only researched three series of Pellet mill, briquette press, crushers, hammer mill, mixer, cooler and dryer Machinery but also the Complete sets of feed, forest, fertilize, charcoal coal energy machinery equipment with more than ten kinds of high-quality products!
They have been exported to Southeast Asian, Europe, Africa, and America, and so on.Main products: Biomass pellets and briquettes pressing machines, wood chipper, shredding, grinding machines, air flow drier and cooler, rotary drier, screener and other related equipment. They have passed the strict technical test by the related government offices and got good reputation form the customers!
Yinhao Machine Company is always proving the customers with the first-class service and high-quality products, specially the high technology. with the idea of making contributions to the human beings and repay our country with industry, the company will create a bright future together with the friends from all over the world.
Our company is always improving his design to confirm to the world market. High quality, creativeness, reliability are our strong points.Your satisfaction is our permanent pursue!
Old and New friends, welcome to our factory!
1.Q:Are you a factory or trading company?
A:We are the professional manufacturing factory and we have exported our products to many foreign countries.
2.Q:Where is your factory located? how can I visit there?
A:Our factory is located in Zhengzhou City( Henan Province, China, ).You can fly to Zhengzhou Xinzheng International Airport and we can go to airport to pick you up directly.
All our clients from home or abroad are warmly welcome to visit our factory and inspect our products!
3.Q:how does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, SGS authentication.
