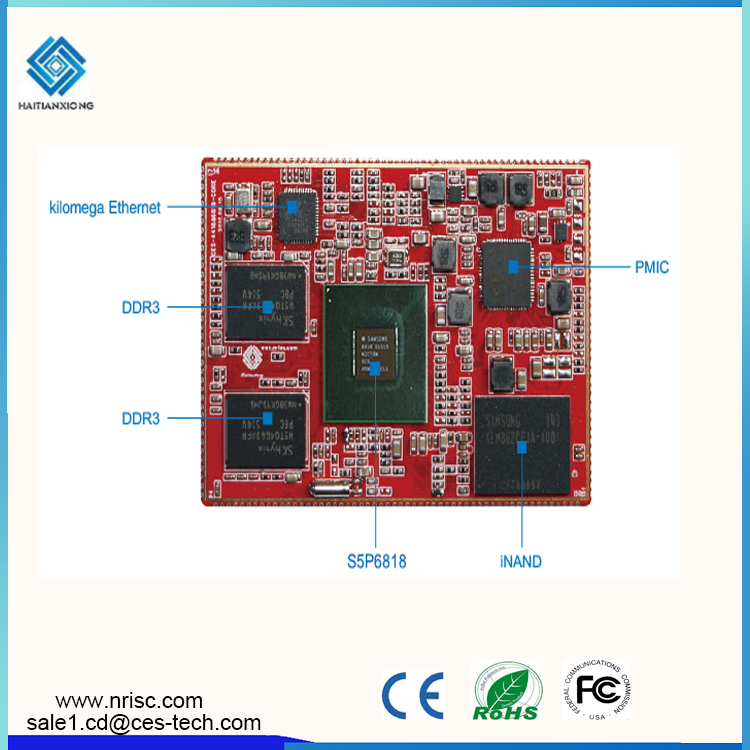

S5P6818 ARM Cortex-A53 Mother Board Eight Core 1G DDR
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | 7 days after payment |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1 picec/bag |
Quick Details
- Hard Drive Interface: SATA
- Graphics Card Type: Integrated
- Memory Type: DDR3
- Chipset Manufacturer: Intel
- Products Status: Stock
- Model Number: S5P6818
- Brand Name: Haitianxiong
Specifications
S5P6818 ARM Cortex-A53 Mother Board Eight Core 1G DDR
Introduction
CES-6818-CORE mother board integrated latest ARM Cortex-A53 Octa-Core S5P6818 application processor based on the 64-bit RISC processor, designed with 28nm low power process, the S5P6818 supports 2D/3D graphics accelerators, full HD 1080p Encode/decode hardware engine, provides 6.4GB/s highest memory bandwidth. with small size it is easy to design for difference application.
CES-6818-CORE provides PMU power management unit, supports dual Display control interfaces for LVDS and RGB, and HDMI 1.4a and MIPI-DSIinterface. Provides rich I/O, 4-channle USB 2.0 HOST, 1-channel USB OTG, 4-channel UART serials and extended GPIO and other peripheral Interface.
CES-6818-CORE applies to different product applications, Including equipment, Automotive electronics, POS, touch Machine, industrial control equipment, refueling auto-terminal Equipment, PDA, and other industry products.
Feature
ARM Cortex? -A53 S5P6818 Octa-Core 1.4GHz 64-bit RISCprocessor
Onboard DDR3 memory 1GB and 8GB eMMC, 6.4GB/s memory bandwidth
Parallel LVDS, MIPI DSI, RGB, CVBS, HDMI
1* 10/100/100M LAN, 3* SD/MMC, 3* I2S, 8* 12bit ADC, 1* USB2.0 HOST, 1* USB2.0 OTG, UART,
I2C, SPI
Support 1080p 60fps full HD video decoding and encodinghardware, 3D graphics hardware
Support ARM TrustZone technology
Support Android5.1, Embedded Linux3.4, Ubuntu12.04
Block Diagram
Dimensions
Specification
Processor | |
CPU |
ARM Cortex-A53 S5P6818 Octa-Core 1.4GHz 64bit RISC processor |
Cache |
32KB(Instruction)/32KB(Data)Cache and 1MB L2 Cache |
Memory | |
Technology |
32-bit DDR3/LVDDR3 800MHz |
Capacity |
on-board DDR3 1GB, Optional 2GB |
Flash |
on-board 8GB eMMC |
PMIC | |
Chipset |
AXP228 |
B2B Connectors | |
Connectors Type |
SMD |
Pin Numbers |
188pins |
Pin Function |
GPIO, ADC, MIPI DSI/CSI, LVDS, RGB, CVBS, HDMI, I2C, Audio I2S, UART, SPI, JTAG, USB HOST/OTG, HSIC, PWM, RESET |
B2B Fixed Hole | |
Fixed Hole |
NO |
Operation System | |
OS |
Optional Android 5.1, Embedded Linux 3.4, Ubuntu12.04 |
Environment | |
Operating Temp. |
-10~70, 50%~90%(Humidity) |
Storage Temp. |
-40~85, 50%~90%(Humidity) |
Physical | |
Dimension(mm) |
43.7*65.5mm |
