P5 Outdoor Full Color LED Screen Aluminum Cabinet 360x720mm
| FOB Price: | 1,000.00 - 1,600.00 USD/Square Meter |
|---|---|
| Supply Ability: | 1,000 Square Meter(s) per Month |
| Shipping: | by sea / air from Shenzhen |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Screen Dimension: 360x720mm
- Pixels: 5.625mm
- Display Function: Video
- Tube Chip Color: Full Color
- Usage: Outdoor
- Model Number: S-PH5.6FO
- Brand Name: TALK
- LEDs: SMD 2727
- Cabinet Case: Aluminum
- Protection Level: IP66
- Matrix Configuration: 64 x128
- Resolution: 31604 pixels/sqm
- Brightness: 6500 nits/sqm
- Net weight: 7.5 kg/pc
- Thickness: 60mm
- Max Power Consumption: 133W
Specifications
High Definition Outdoor Full Color LED Display Screen
P5.6 Aluminum Cabinet 360x720mm with ratio 1:2
Features:
Thin light aluminum cabinet 360x720mm.
Front service available.
High brightness LEDs, High refresh rate MBI IC driver with PWM.
4-layers thick PCB board, more durable.
IP66 waterproof, ok to work underwater.
Special perfect ventillation without fan inside cabinet.
High quality slim power supply.
Easy installation and maintenance.
Technical details:
| Parameters / Product Model | S-PH5.6FO |
| Working Environment | Outdoor |
| Pixel Pitch (mm) | 5.625mm |
| Pixel Configuration | SMD2727 |
| Pixel Matrix per panel | 64×128 |
| Panel Dimensions (HXW) (mm) | 360×720mm |
| Panel Material | Aluminum |
| Panel IP Rating (Front and Rear) | IP66/IP66 |
| Panel Weight (kgs/PC) | 7.5kg |
| Panel Thickness | 60mm |
| Panel Installation type | Fixed |
| Installation Access | Front Access / Back Access |
| Color Grayscale (Bit) | 16 |
| Gray Scale per Color (level) | 65536 |
| Refresh Rate (Hz) | 2880Hz |
| Driving Type | 1/8 scan |
| Monitoring and Detection | Power Status, Receiving card Status, Temperature, Humidity, Moisture, etc |
| Signal Transmission Distance (m) | CAT5 Cable: <100 m; Single mode Fiber: <10 km |
| Brightness (CD/㎡) | 6500 |
| Calibration | Brightness Calibration and Chromatic Calibration |
| Optimal Horizontal Viewing Angle (°) | 140 |
| Optimal Vertical Viewing Angle (°) | 120 |
| AC Input Voltage (V) | 90~240V |
| AC Input Frequency (Hz) | 50/60Hz |
| MAX power Consumption (W/Panel) | 234W |
| Average power Consumptio (W/Panel) | 70W |
| Storage Temperature (℃) | ﹣40 ℃~﹢60℃ |
| Operating Temperature (℃) | ﹣40 ℃~﹢60℃ |
| Storage Humidity (RH) | 10%~95% |
| Operating Humidity (RH) | 10%~95% |
| Lifetime Typical Value (hrs) | 100000 |
Operation method of useage:

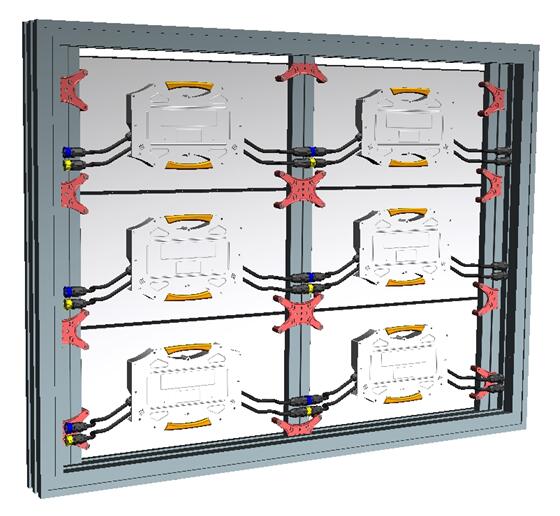

Fixed structure installation, available front access and back access.
Same cabinet, just by using different brackets and screws.
Package:
Carton with inner foam protection.
4 cabinets per carton, 83x41x47cm, 33.5kg/carton.
Flight case package for rental projects, 5 cabinets per case, 77x43x45cm.
Welcome sample test!
Send me your inquiry now.
