P15 Outdoor 1'X2' LED Message Sign Board Front Service
| FOB Price: | 1.00 - 1,000.00 USD/Square Meter |
|---|---|
| Supply Ability: | 1,000 Square Meter(s) per Month |
| Shipping: | by air, DHL/UPS/FEDEX express, by sea |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton with inner foam, 4 cabinets per carton, 20kg/ctn, 0.1m3/ctn. |
Quick Details
- Screen Dimension: 304.8 x 609.6mm
- Pixels: 15.24mm
- Display Function: Graphics
- Tube Chip Color: Full Color
- Usage: Outdoor
- Model Number: OP15FDO
- Panel size: 1' x 2'
- LED: 1R1G1B
- Matrix configuration: 20 x 40 pixels
- Resolution: 4305 pixels/sqm
- Net weight: 4kg/pc
- Thickness: 55mm
- Greyscale: 65536
- Refresh rate: 3000Hz
- Brightness: 11000cds/sqm
- Viewing angle: 110 horizontal / 55 vertical
Specifications

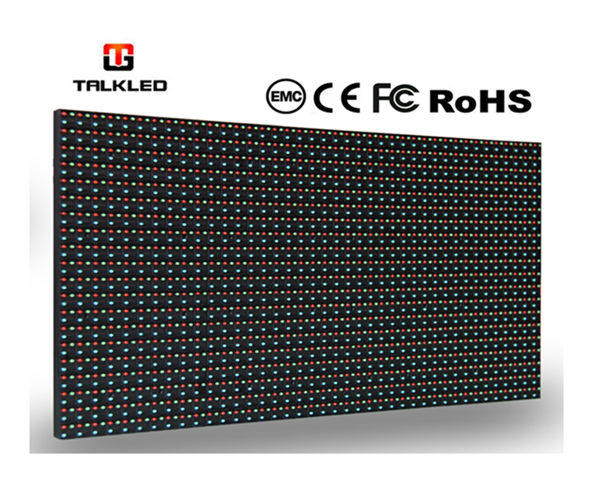

P15.24 DIP real pixel Outdoor Full Color LED Sign Panel.
Size 1'x2', ultra slim and light weight.
Front service available whole panel.
CE, ROHS Certificated, UL listed main components.
Wireless remote control through easy software.
Support WiFi, 3G, 4G, cloud.
IP65 waterproof.
High brightness, low power consumption.
Slow color decay, keep same high brightness after working 2 years.
Available color/brightness callibration.
Available sign working status monitoring alarm.
High quality raw materials with strict quality control, guarantee its longtime stable working for at least 6 years.
-- 4-layers thick PCB board.
-- selected high brightness LED diodes.
-- MBI IC driver with PWM function (high refresh rate)
-- Integrated power data cable.
-- High efficiency slim power supply.
-- Aviation waterproof cable connectors.
-- UL listed main components.
-- Quiet fan, great ventillation in the panel.

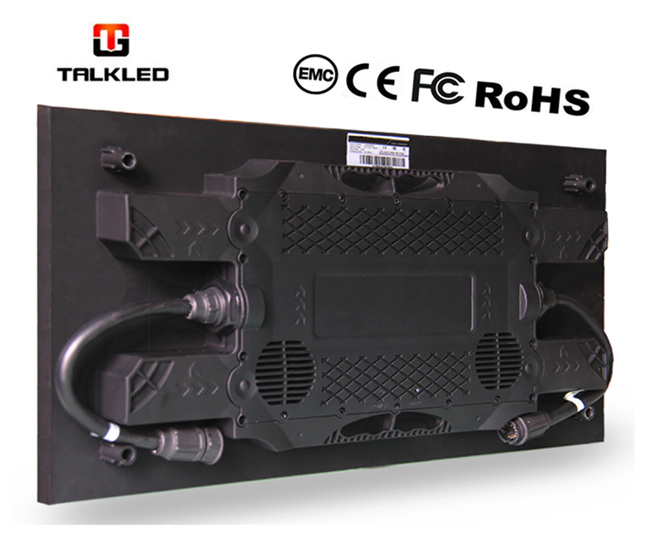

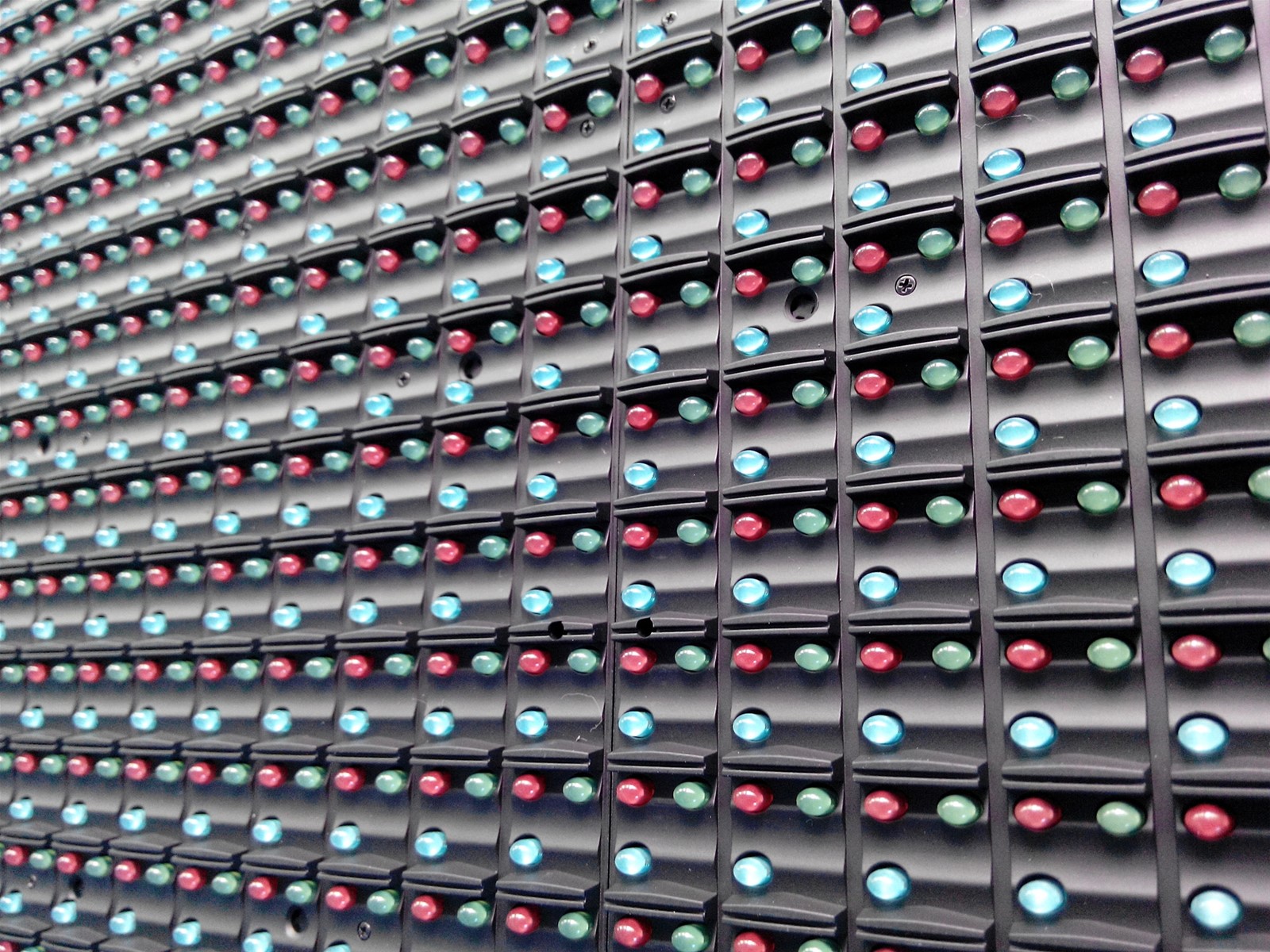

Front service through 4 screws holes on the panel and special brackets:
Technical details:
| Model Number | OP15FDO |
| Pixel Pitch | 15.24mm |
| Working Environment | Outdoor |
| LED type | DIP346# |
| Pixel Configuaration | Real Pixel 1R1G1B |
| Cabinet Dimensions (H x W) | 1'x2' |
| Cabinet Dimensions (H x W) | 304.8mm x 609.6mm |
| Waterproof: Front & Back | IP65 |
| Density of Pixel | 4,305pixel/㎡ |
| Matrix Configuration/cabinet | 20x40 Pixels |
| Weight/cabinet | 4kg |
| Cabinet Depth | 55mm |
| Service Access | Front & Back Service |
| Viewing Angle/horizontal | 110° |
| Viewing Angle/Vertical | 55° |
| Average Power/cabinet | 60W |
| Max Power/cabinet | 173W |
| Driving Method | Static |
| Refresh frame Frequency | ≥60HZ |
| Refresh rate | ≥3000HZ |
| Brightness | ≥11000cds/㎡ |
| Grey Scale/display color | 65536/281Trillion Color |
| Brightness Adjustment | Manual R.G.B each color 256,automatic 8 Grades are Adjustable |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITONS |
| Control System | PCTV Card(optional)+DVI Card+master Control Card+optical Transmitter(optional) |
| Data Transmission | Internet cable Transmission 100m. Multi-mode fiber Optics Transmission 500m; Single-mode optic fiber Transmission 10km. |
| System Operation Platform | Windows98/me/2000/NT/XP/WIN7/WIN8 |
| Average no Failure time | ≥10000hrs |
| Lifetime of LED | ≥100000hrs |
| Malfunction do rate | ＜0.0001 |
| Working Voltage | AC 110V/220V ±15﹪ 50-60HZ |
| Earth Leakage Current | ＜0.1mA |
| Working / Storage Temperature | Working -40℉～140℉ Storage -40℉～185℉ |
| Working / Storage Temperature | Working -40℃～60℃ Storage -40℃～85℃ |
Package:
Carton with inner foam protection.
4 panels per carton, 36x69x40cm, 20kg/ctn.
Shipping: by DHL/UPS/FEDEX/TNT express. or by air to local airport. Or by sea.
Welcome contact us for a quote and sample test!

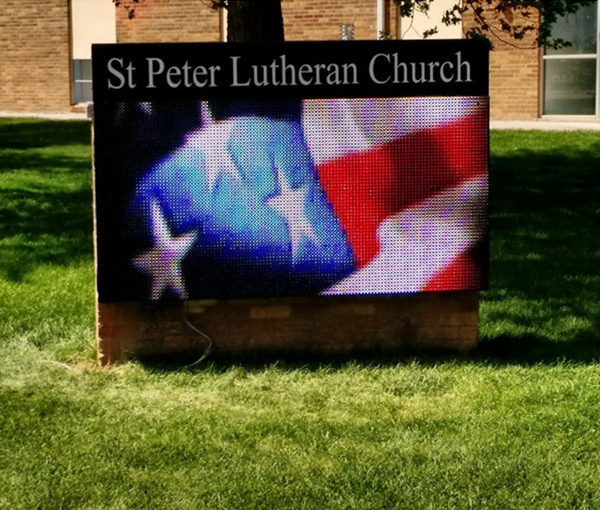

Welcome visit my youtube to check more videos of installation and display perfermance!
