DIP Real Pixel Outdoor LED Sign LED Message Board Pitch 12.7mm
| FOB Price: | 800.00 - 1,200.00 USD/Square Meter |
|---|---|
| Supply Ability: | 1,000 Square Meter(s) per Month |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton with inner foam protection. 4 panels per carton, 37x70x41cm, 20kg/ctn. |
Quick Details
- Pixels: 12.7mm
- Display Function: Graphics
- Tube Chip Color: Full Color
- Usage: Outdoor
- Brand Name: ONLYLED
- Screen Dimension: 1ft x 2ft
- Model Number: OP12FDO
- LED: DIP 346
- Pixel: 1R1G1B
- Resolution: 24 x 48
- Brightness: 11000nits/sqm
- Thickness: 55mm
- Net weight: 5kg
Specifications

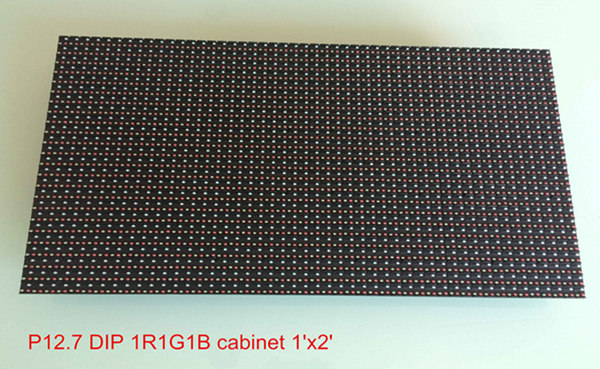

P12.7 Outdoor DIP Full Color LED Sign with panel size 1'x2'.
CE, ROHS Certificated, UL listed main components.
Easy installation and maintenance by front access.
Wireless remote control through easy software.
Support WiFi, 3G, 4G, cloud.
IP65 waterproof.
High brightness, low power consumption.
Slow color decay, keep same high brightness after working 2 years.
Available color/brightness callibration.
Available sign working status monitoring alarm.
High quality raw materials with strict quality control, guarantee its longtime stable working for at least 6 years.

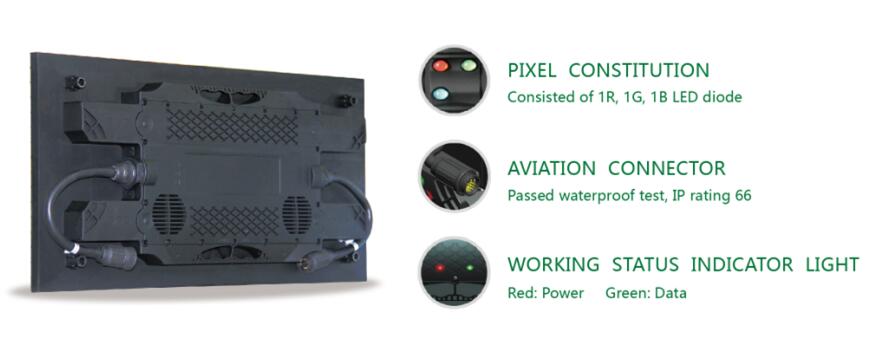

-- 4-layers thick PCB board.
-- selected high brightness LED diodes.
-- MBI IC driver with PWM function (high refresh rate)
-- Integrated power data cable.
-- High efficiency slim power supply.
-- Aviation waterproof cable connectors.
-- UL listed main components.
-- Quiet fan, great ventillation in the panel.
Front service through 4 screws holes on the panel and special brackets:
Technical details:
| Parameters / Product Model | M-PH12FRDO |
| Working Environment | Outdoor |
| Pixel Pitch (mm) | 12.7mm |
| Pixel Configuration | DIP 346# 1R1G1B |
| Pixel Matrix per panel | 24x48 |
| Panel Dimensions (HxW)/(mm) | 304.8x609.6mm (1'x2') |
| Resolution per Square meter | 6200 Pixels/sqm |
| Panel Material | Industrial Plastic |
| Panel IP Rating (Front and Rear) | IP65/IP65 |
| Panel Weight (kgs) | 4 |
| Panel Thickness (mm) | 55mm |
| Panel Installation type | Fixed |
| Installation Access | Front Access /Back Access |
| Color Grayscale (Bit) | 16 |
| Gray Scale per Color (level) | 65536 |
| Refresh Rate (Hz) | 2880 |
| Driving Type | Static |
| Brightness (CD/㎡) | 11000 |
| Monitoring and Detection | Power Status, Receiving card Status, Temperature, Humidity, Moisture, etc |
| Signal Transmission Distance (m) | CAT5 Cable: ＜100 m; Single mode Fiber: ＜10 km |
| Calibration | Brightness Calibration and Chromatic Calibration |
| Optimal Horizontal Viewing Angle (°) | 110 |
| Optimal Vertical Viewing Angle (°) | 55 |
| AC Input Voltage (V) | 110 /220V ±15﹪ |
| AC Input Frequency (Hz) | 50/60 |
| MAX power Consumption (W/Panel) | 131 |
| Average power Consumptio (W/Panel) | 46 |
| Storage Temperature (℃) | ﹣40~﹢60 |
| Operating Temperature (℃) | ﹣40~﹢60 |
| Storage Humidity (RH) | 10﹪~95﹪ |
| Operating Humidity (RH) | 10﹪~95﹪ |
| Lifetime Typical Value (hrs) | 100000 |
Package:
Carton with inner foam protection.
4 panels per carton, 37x70x41cm, 20kg/ctn.
Shipping: by DHL/UPS/FEDEX/TNT express. or by air to local airport. Or by sea.
Welcome inquiry & sample test!
