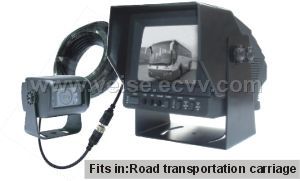

DF-8063 Water-resistance Day&Night Rear View B/W Camera
Image device: 1/3"LG B/W CCDHorizontal Resolution:380 TV Lines
Alloyed shell, Day/Night function, Weather-proof for outdoor usage
Effective pixel:NTSC:510(H)x492(V) ; PAL:500(H)x582(V)
Electronic Shutter speed: NTSC 1/60-1/100,000sec,PAL:1/50-1/100,000sec
Usable Illumination:0Lux(Built In 6 IR LED ON)
IR LED working distance:5mLens mount: Board Lens(2.8∽3.6mm)optional
Water resistance:IP66
Video Output:1.0Vp-p 75ΩPower supply:12V/150mA
TAM-662A 5.5" CRT Monitor
5.5" green picture tube
The display with two audio frequency/video frequency input (C1, C2)
Dispaly with audio frequency and video frequency output
This kind of product is suit to auto rearview mirror
The displays power output is DC12V
Mode: PAL or NTSC
Size: 5.5"
Frequency: 50HZ(PAL)60HZ(NTSC)
Video frequency input: 1VP-P(75Ω)
Audio frequency output: 0.1VP-P(75Ω)
Working temperature: -22F-+158F
Environment temperature: -20°C - +60°C
Working voltage range : DC11V-32V
Power: 15W
Wire Length: 15 meter (electrical outlet for)
