Hebei Honbak Metal Products Co., Ltd.
China Manufacturer with main products: Stainless Steel Wire Mesh, Stainless Steel Square Wire Mesh, Stainless Steel Reverse Dutch Wire Mesh, Stainless Steel Dutch Wire Mesh, Gabion... |
Chain Link Wire Mesh Machine
| FOB Price: | 10,000.00 - 13,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | plastic film or according to customers request |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: XM
- voltage: 380V
- weight: 1.8TONS
- Condition: NEW
- Model Number: XM
- WIRE DIA:1.5MM-4..5MM: WIDTH:1M-4M
- MESH SIZE:25MM-100MM: capacity:60-150M2/HOUR
- Machine size:6.3x2.0x2.0m: WEIGHT:2.3TONS
Specifications
Product Description

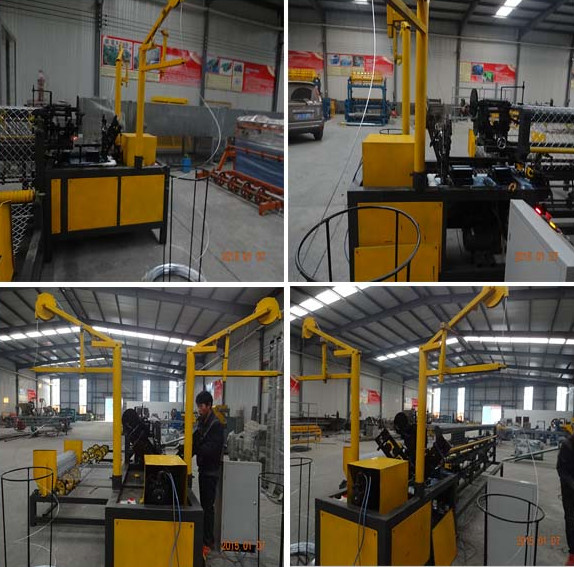

Full Automatic Chain Link Fence Machine
Technical Parameter:
1. Width scope of weaving: 1000-4000mm; Suitable for all kinds of Electro-galvanized, Hot-dipped galvanized diamond shape mesh
2. Mesh scope of weaving: 60--150mm(According to the requirements of customers, Can provide 2 different types of knife molds)
3. Wire diameter scope of weaving: 1.5- 4.5mm
4. the output per minute: for example: If the mesh is 50*50mm, width 3000mm, the Output will be 100/h
5. the machine is controlled by PLC automatic controller
6. Power consumption: Servo motor power:5.5KW Machinery total power:10KW
7. Suitable wire to the machine: High-quality low-carbon steel wire,
Galvanized Steel Wire, Stainless steel wire, Aluminum alloy wire, Aluminum-clad
Steel Wire
Installation and commissioning:
Machine to be installed and commissioned by SEMAI technicians.
the seller will send our engineer to install the machine accordingly if the buyer need.
the buyer have to pay the salary US$100 per day, and the air ticket, accommodation,
Eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
If you have any interest in our chain link fence machine,please feel free to contact with us.
Technical Parameter:
1. Width scope of weaving: 1000-4000mm; Suitable for all kinds of Electro-galvanized, Hot-dipped galvanized diamond shape mesh
2. Mesh scope of weaving: 60--150mm(According to the requirements of customers, Can provide 2 different types of knife molds)
3. Wire diameter scope of weaving: 1.5- 4.5mm
4. the output per minute: for example: If the mesh is 50*50mm, width 3000mm, the Output will be 100/h
5. the machine is controlled by PLC automatic controller
6. Power consumption: Servo motor power:5.5KW Machinery total power:10KW
7. Suitable wire to the machine: High-quality low-carbon steel wire,
Galvanized Steel Wire, Stainless steel wire, Aluminum alloy wire, Aluminum-clad
Steel Wire
| XINGMAO METAL WIRE MESH CO.,LTD | |
| Contact Name | Larry |
| Mesh width | 3000mm |
| Maximum mesh hole size | 80mm |
| Minimum mesh hole size | 40mm |
| Maximum Wire diameter | 4.5mm |
| Minimum Wire diameter | 1.5.Mm |
| Material type | Galvanized wire ,stainless wire, Aluminum alloy wire, PVC Coated wire. |
| Selvage type | Hook edge or Screw edge |
| Machine speed | 60-150/hours |
| Machine weight | 2.3T |
| Machine size | 6.3x2.0x2.0m |
| Machine voltage | Standard is:380V60Hz,We according to your needs |
| Drive system type | Servo motor(EURA) 5.5KW |
| PLC brand | Delta |
| Control system type | Touch screen control(English) |
| Adjustment parameters | on the touch screen |
| Delivery time | 25 -30 day |
Fully-automatic chain link fence machine performance
1.Designed for continuous working system as 24 hours.
2.Double wire input
3.Two sets mold for free
4.Long using time for mold
5.Low tolerance for mold +/-1mm
6.Wire fencing option up to 6 meters height.(the minimum could be any size)
7.Wire fencing capacity(speed):120m2/hour-(as result of tests 70mm mesh size)
8.It works with any thickness between of wire 1.5mm and 6mm.
9.between 25mm-100mm of mesh size wire fencing
10.Can be used with kinds of galvanized or PVC wire
Installation and commissioning:
Machine to be installed and commissioned by SEMAI technicians.
the seller will send our engineer to install the machine accordingly if the buyer need.
the buyer have to pay the salary US$100 per day, and the air ticket, accommodation,
Eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
If you have any interest in our chain link fence machine,please feel free to contact with us.
