Zhengzhou Free Fluid Control Technology Co., Ltd.
China Manufacturer with main products: Ceramic Knife Gate Valve, Pneumatic Ceramic Double Gate Valve, Pneumatic Ceramic Rotating Gate Valve, Ceramic Lined Ball Valve, Y Type Slurry... |

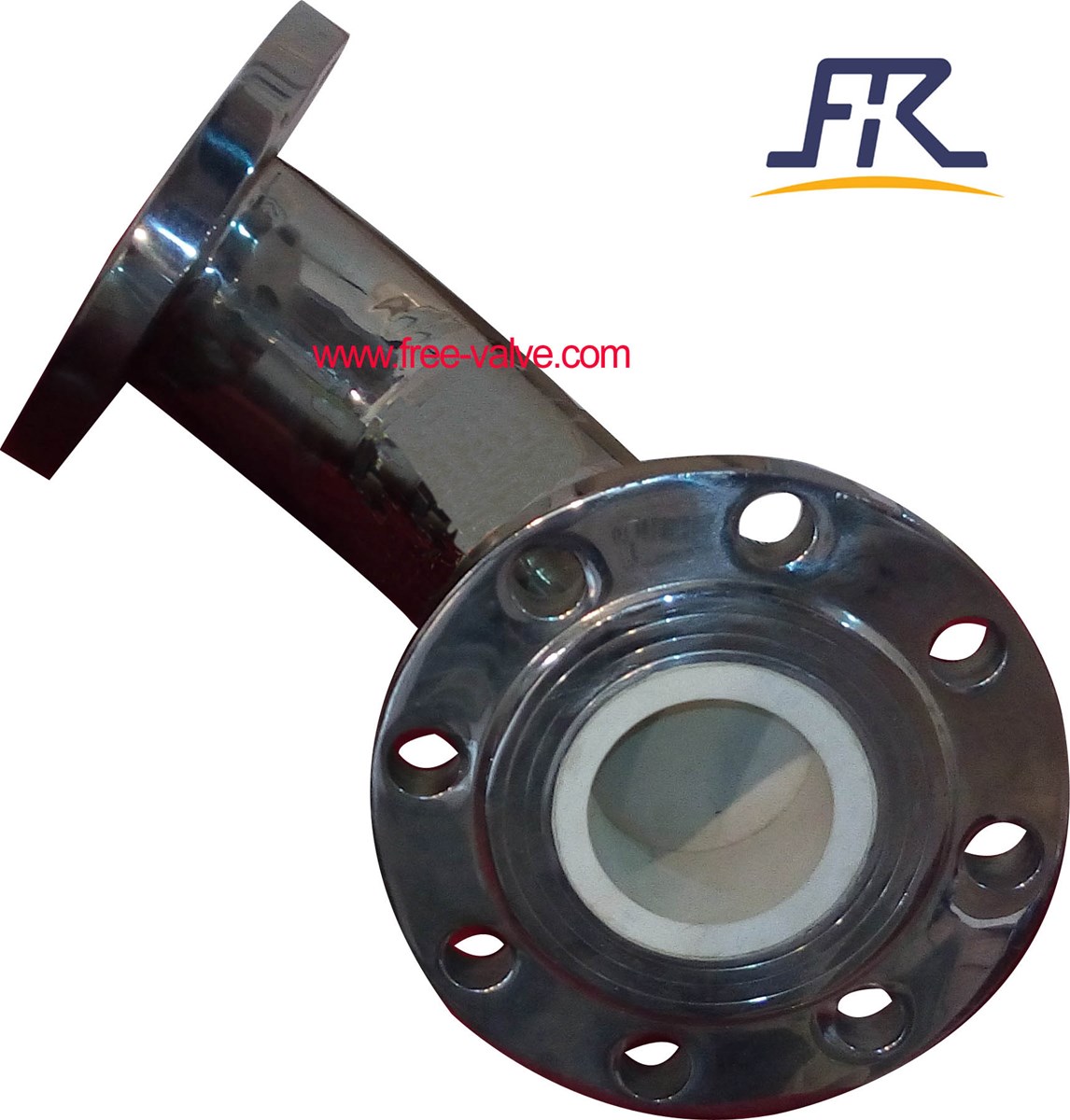

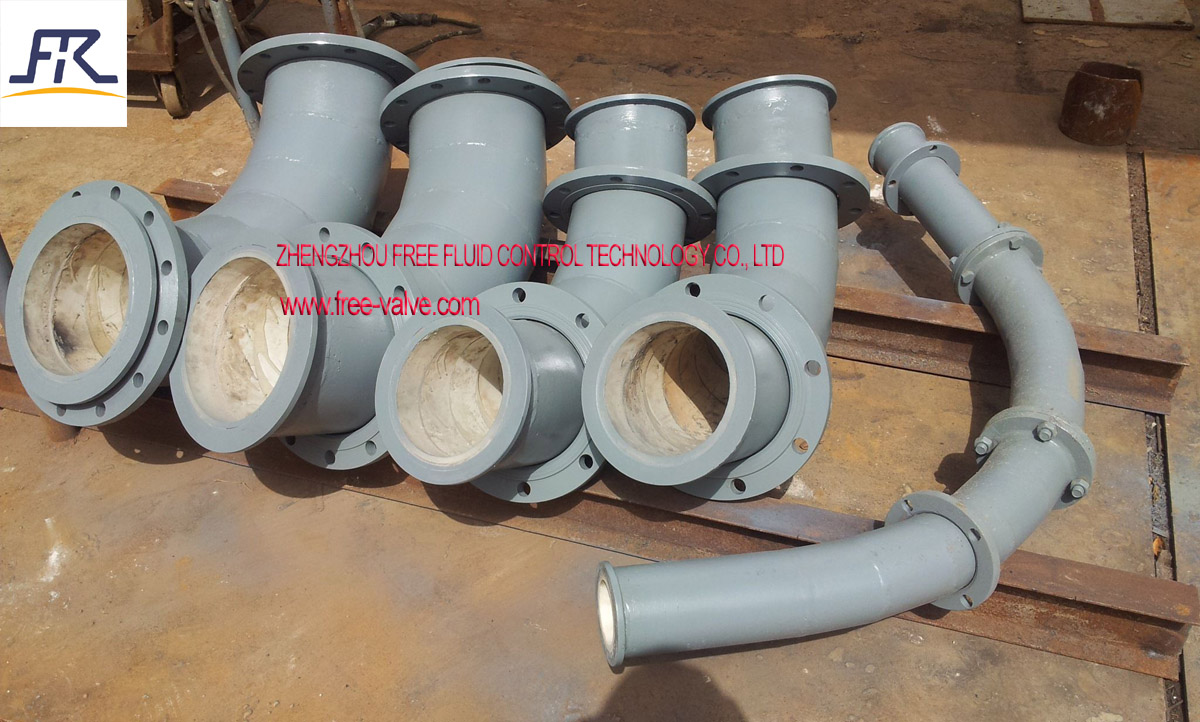

Ceramic Lined Composite Pipe & Ceramic Elbow
| FOB Price: | 1,000.00 - 1,500.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece(s) per Month |
| Shipping: | 30days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | wooden package |
Quick Details
- Connection: Flange
- Brand Name: FREE-VALVE
- Type: Coupling
- Technics: Engineering ceramic+ Steel
- Material: Engineering ceramic+ Steel
- Model Number: FR001
Specifications
FREE-Valve's Ceramic Lined Composite Pipe and Ceramic Elbow include elbow, short section,Tee joint,reducer etc,which are widely used in the powder of pneumatic conveying and pumping conveying. Due to the large abrasives, high hardness,high speed,large flow rate of medium,the ceramic ring lined composite pipes can greatly prolong the speed of pipes wear out.
Features
1.Ceramic lined steel pipe has strong wear resistance performance and ant-erosion capacity.
2.with Smooth inner wall, will not blocked by the powder medium.
3.Good anti-abrasive performance,longer working life time
Technical Specification
the standards of flange ends ASME B16.5, GB/T9113
Nominal Pressure 1.0MPa,Class150
Size Rang DN50～DN 300, NPS2 ～NPS12
Connection type Flange/ Welding
Working Temperature ≤200℃
Pipe material Engineering ceramic+ Steel
Application:
1. Slag draining, ash removal, powder feeding and back powder systems in power plants.
2.Iron alloy conveying of steel-making, slag conveying pipeline, external refining and so on in steel plant.
3. LiCoO2 powder , raw slurry conveying in cement plant, coal powder conveying, concrete conveying pipe.
.
