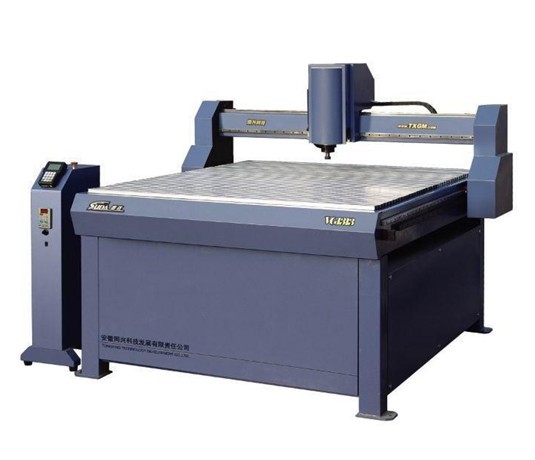

Large Format Metal/Plastic Plate CNC Engraver

FOB Price:	3,000.00 - 8,000.00 USD/Set

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: magical bridge
Weight: 1000kg
color: black and red

Specifications

High speed process:can process curves and straight lines simultaneously at the speed of 30m/min.
Massive Memory capacity:Standard allocation of 128M to suport transmitting data by USB flash Disk directly,which can save 30 processing files simultaneously for your choice
Multi-Compatibility:be compatible with popular CAD/CAM softwares: Type3/Artcam/Casmate/Proe/UG/Artgrave etc.
Convenient Operation:restoring function enable the machine stop running automatically when power off,and then automatically resume to work when power on,and also can store the break point from which for later operation to start,with the function of anticipating the working time,Auto-feeding blades,and support 9 Coordinate Systems Orientation, friendly designing.

Application:
Applicable to process,sign plate,acrylic cutting efficiently,and also can process many metal and non-metal materials such as iron,copper,aluminum,plastic plate etc.with following features:strong functions,convenient operation,and reliable performance sturdy and durable in work.

Technical Parameters:

Model	VG1313	VG1318	VG1515	VG1325	VG1520	VG1630	VG2030	VG2040
Working area	1300×1300 ×150mm	1300×1800 ×150mm	1500×1500 ×150mm	1300×2500 ×150mm	1500×2000 ×150mm	1550×3000 ×150mm	2000×3000 ×150mm	2000×4000 ×150mm
Spindle motor	2.2KW interter-driven spindle motor		3KW interter-driven spindle motor
Rotating speed of spindle	6000~24000rpm
Tool specification	Ф3.175,Ф4,Ф6,Ф8,Ф10,Ф12.7(Optional)
Motion speed	30000mm/min
Dictate format	HPGL,G-code
Resolution	0.01mm

Servo system of Panasonic from Japan is optional,whole machine can be running at 60m/min and working speed can be up to 40m/min when configuring servo system.

.Dust collecting System (optional)

.Vacuum System (optional)

.Water cooling device or air cooling device ( optional )

.Colombo, ELTE,HSD spondle motor from italy is optional.

.the colour of machine can be required by customers. large format metalplastic plate CNC engraver
