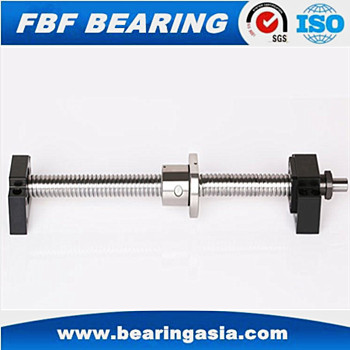

HIWIN FBF JIMBIL BRAND Ball Screw Factory Directly Sale Low Price Rolled CNC Ballscrew SFU1605

Supply Ability:	100,000 Piece(s) per Month
Shipping:	Stock delivery within 3 days, OEM orders delivery within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	1. Polybag + box +wooden carton 2. according to customer's requirements.

Quick Details

Brand Name: HIWIN FBF JIMBIL
Length: 1000-6000mm
Material: Chrome steel, stainless steel
Manufacturing Process: Milled Thread
Delivery time: 3 days
Model Number: SFU1605
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: SFU DFU SFE SFI
Condition: New
Guide Length:: 1000mm
Length:: 0-6000mm
Ball screw diameter:: dia 16mm,pitch 5mm
precision rate: C7 grade
Nut type:: Single or double nut
Color: sliver and black Linear Guide

Specifications

HIWIN FBF JIMBIL Rolled CNC Ballscrew SFU1605

Linear slide rail as a type of rolling guide, run by the power between infinite scroll circulation steel ball in the slider and slippery course, along the slippery course load platform can easily do high precision linear movement.

Compared with the traditional sliding guide, rolling guided friction coefficient can drop to as low as 1/50 of the original, greatly decrease relatively less invalid movement, therefore, it can easily achieve m class feed and positioning.

Plus bound unit design between the slider and slippery course, making the linear slide rail withstand the load from up and down and other directions, above displayed characteristics traditional sliding guide can't match, then if the machine can cooperate with ball screw, use linear slide rail for guidance, will greatly improve the accuracy and efficiency of the mechanical equipment.
