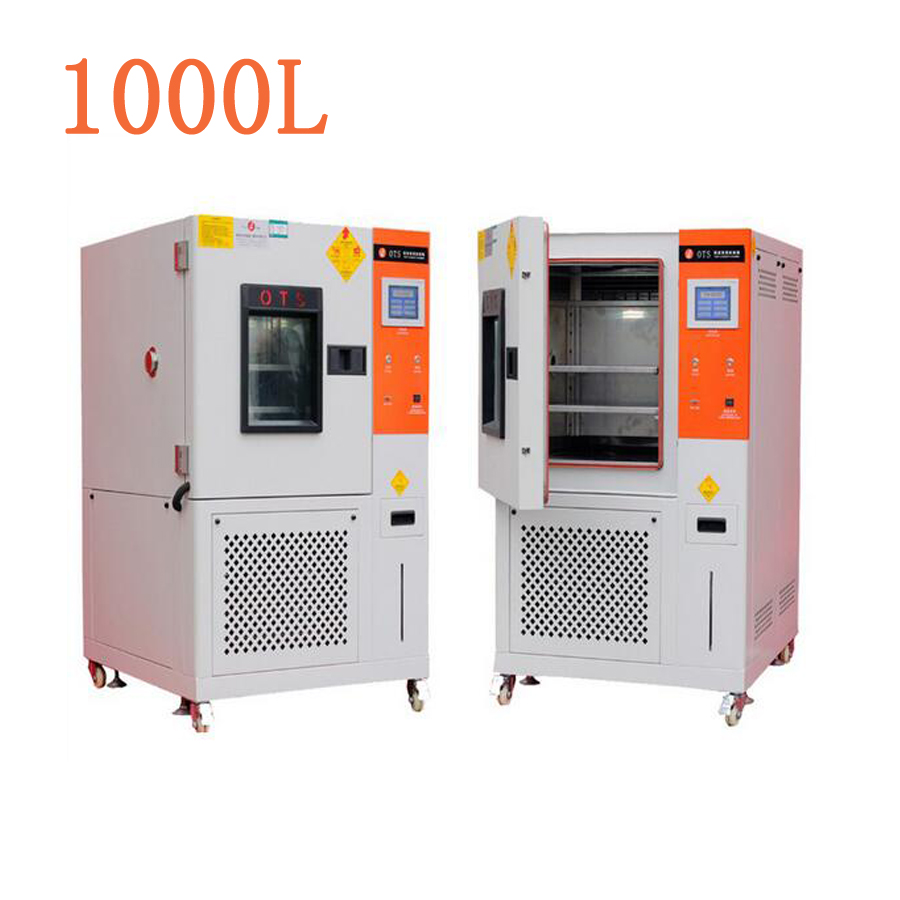

1000L Temperature Test Chamber

Price: $ 9000
Wholesale: 1 Sheet(s)
Supply Ability: 100 Set(s) per Month
Shipping: Shenzhen, China
Payment Terms: T/T
Update Time: 7/21/2017
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Strong Wooden Case

Quick Details

  • Temperature range: -60~150
  • Accuracy: +0.5,-0.5/+2.0,-2.0
  • Theory: Temperature Recorder
  • Usage: Industrial
  • Brand Name: OTS JUNYUAN
  • Model Number: JY-OTS-1000
  • Application: Industry, School, Hosipital, Lab

Specifications

Product Description
1000L  Temperature Test Chamber
1000L Temperature Test Chamber
Introduction:
Test material heat, cold, dry resistance, Humidity resistance.Suitable for electronics, electrical Appliances,Communications, instrumentation, vehicles, plastic products, Metal, food, chemical,building materials, medical, aerospaceand Other  products.
                                   Applicable  Industries   and  Test  Items

1000L Temperature Test Chamber
1000L Temperature Test Chamber
Specification:

Model JY-OTS-80 JY-OTS-150 JY-OTS-225 JY-OTS-408 JY-OTS-800 JY-OTS-1000
Inner size
W*H*DCM
40*50*40 50*60*50 50*75*60 60*85*80 100*100*800 100*100*100
External size W*H*DCM 90*143*100 100*153*110 110*168*110 130*178*120 150*193*140 150*193*160
Temperature range -20°C~+150°C(180°C),-40°C~+150°C(180°C),-60°C~+150°C(180°C)-
-70°C~+150°C(180°C)

(A:-20°C B:-40°C C:-60°C D:-70°C )
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H)
Temp humidity
Analytic accuracy
/ uniformity
±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.Is special optional condition.
Temperature  humidity
Control accuracy/fluctuation
±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.
Heat/cooling time about 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition

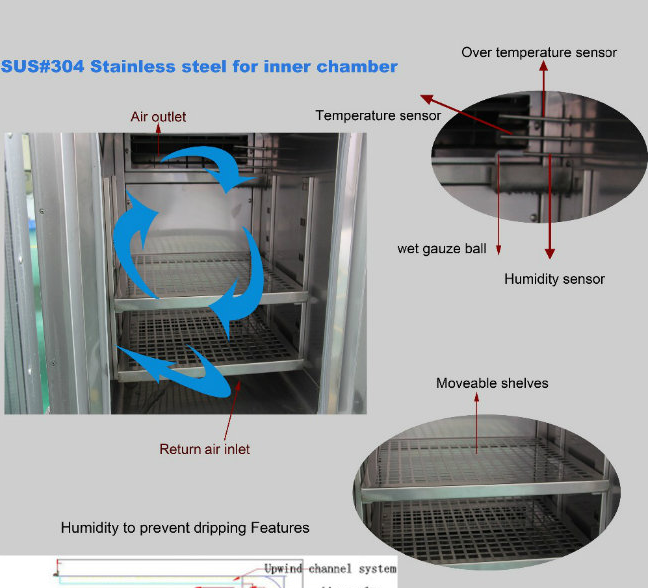

Inner and outer materials SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.
Insulation materials Resistant to high temp,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system Air cooling/single segment compressor(-20°C),air and water double segment compressor
(-40°C~-70°C)
Protection devices Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
Super humidity over-temperature protection switch, fuse, failure warning system
Parts Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
Controller TEMI" South Korea"TEMI" "OYO" Japan's "OYO" Brand  optional
Compressor Original France"Tecumseh"brand
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

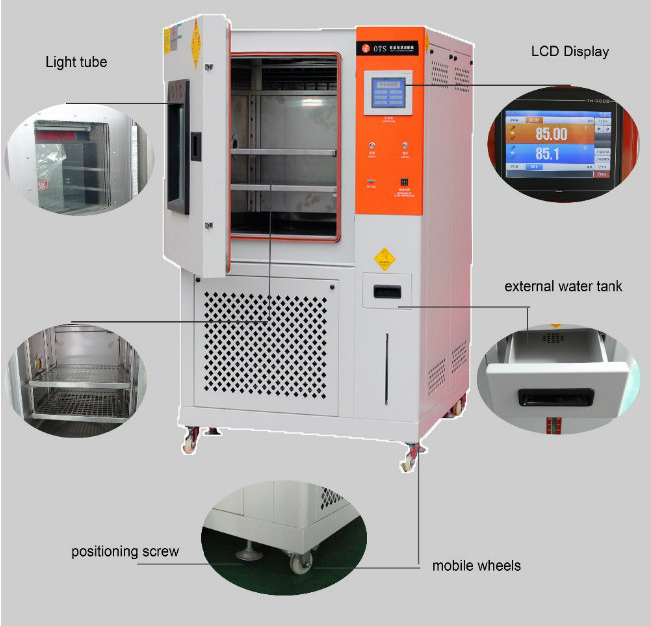

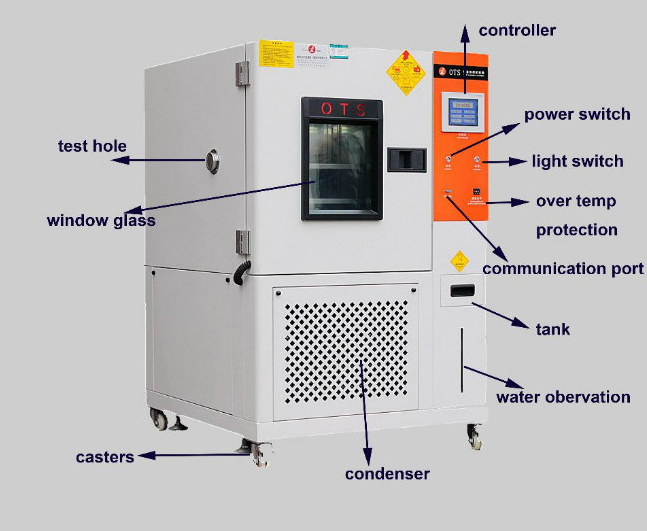

Features:
1000L Temperature Test Chamber

1000L Temperature Test Chamber1000L Temperature Test Chamber

*.High-texture Appearance, the body adopted an arc shape, surface matte stripes Processing, and flat-handle, easy to operate, safe and reliable.

*.Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window witt  Anti-sweat heaters device prevents water gas condensate ,Knot, water droplets, PL fluorescent lamps to keep the inside lighting.

*.Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of the leak

*.with external water supply system, convenient to supplement the cylinder water supply, and automatic Recovery using.

*.Compressor cycling system used France"Tecumseh"Brand which can effectively remove condenser pipe and between  capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404, R507)

*.Controller uses the imported LED display screen, can display measured values and setting time

*.Controller with multisegment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.

*.Built-in mobile wheels allow easy movement and placed and has a strong positioning screw position.

Standard:

GB/Bb T2423.2-89 high temperature test method              GB2423.1-89 test A: low temperature Test method 6

Ab IEC60068-2-1 low temperature test method                  GJB150.4-1986 test at low temperature

EIA - 364-59 test at low temperature                                   IEC60068-2-38 temperature cycle

IEC60068-2-78 Constant   temperature                               IEC60068-2-30   temperature cycle

EIA - 364-31C temp resistance                                           GB/T2423.3 constant  heat test method

Certificate:

Global safety design, use our chambers safely and with peace of mind for many years to come.

We deliver chambers that conform to international safety standards.

Our chambers conform to ISO risk assessment as well as global safety design electrical safety standards Such as CE marking and EMC directive.

the production process of the test chambers:
Our Services:

We are here to help you. Services available:

Replacement manuals

  • Consumables and replacement parts
  • on-site maintenance and repair
  • Warranty support
  • over-the-phone service support and advice

If you have an OTS chamber  , we will do our best to help you in whatever way we can.

 Manuals: PDF Files of manuals for current models are available free. Please contact Us to request a copy. Older and printed copies at additional charge.

  • Service repair:  We Prefer you contact us direct at the factory with any problems you may Be experiencing.  We help diagnose the problem, arrange for any needed Parts, and schedule a technician to do the repairs.  Rarely can a local Contractor get all that done for you as quickly as we can.  We also Guarantee the work.

FAQ:

Q1:  Can you customize the product?

   A:   Yes, We can customize any products according to requirements.Hot selling lab Electronic temperature humidity cabinet/Environmental climate test Chamber also can be customized.

 Q2:  how to choose the most suitable products?

   A:   Our Professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.

 Q3:  Can you arrange installations and commissioning in our lab?

   A:   Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate

        Secondly; we had detailed operation manual with chamber, any problems you can find and solve in it

           Thirdly, some of customized chambers we should to install and teach your team to operate.
