High Brightness Outdoor LED Display Thin Light Aluminum Cabinet DIP Front Service 12.7mm 15.24mm LED Message Board
| Supply Ability: | 1,000 Square Meter(s) per Month |
|---|---|
| Shipping: | By air first recommended. By UPS/FEDEX/DHL express. By sea from Shenzhen Port. |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton with inner foam protection. 4 panels per carton, 36x69x40cm, 20kg/ctn. |
Quick Details
- Pixels: 12.7mm
- Display Function: Video
- Tube Chip Color: Full Color
- Usage: Outdoor
- Brand Name: TalkLED
- Screen Dimension: 304.8 x 609.6mm
- Model Number: OP12FDO
- Pixel configuration: 1R1G1B
- LED: DIP 346
- Net weight: 4kg
- Thickness: 55mm
- Brightness: 12000nits
- Refresh rate: 3000Hz
- Max power consumption: 153W
- Average power consumption: 54W
- Scan mode: 1/2 scan
- Greyscale: 65536
Specifications
Outdoor DIP Full Color LED Sign P12.7 with panel size 1'x2'.
CE, ROHS Certificated, UL listed main components.
Easy installation and maintenance by front access.
Wireless remote control through easy software.
Support WiFi, 3G, 4G, cloud.
IP65 waterproof.
High brightness, low power consumption.
Slow color decay, keep same high brightness after working 2 years.
Available color/brightness callibration.
Available sign working status monitoring alarm.
High quality raw materials with strict quality control, guarantee its longtime stable working for at least 6 years.
-- 4-layers thick PCB board.
-- selected high brightness LED diodes.
-- MBI IC driver with PWM function (high refresh rate)
-- Integrated power data cable.
-- High efficiency slim power supply.
-- Aviation waterproof cable connectors.
-- UL listed main components.
-- Quiet fan, great ventillation in the panel.

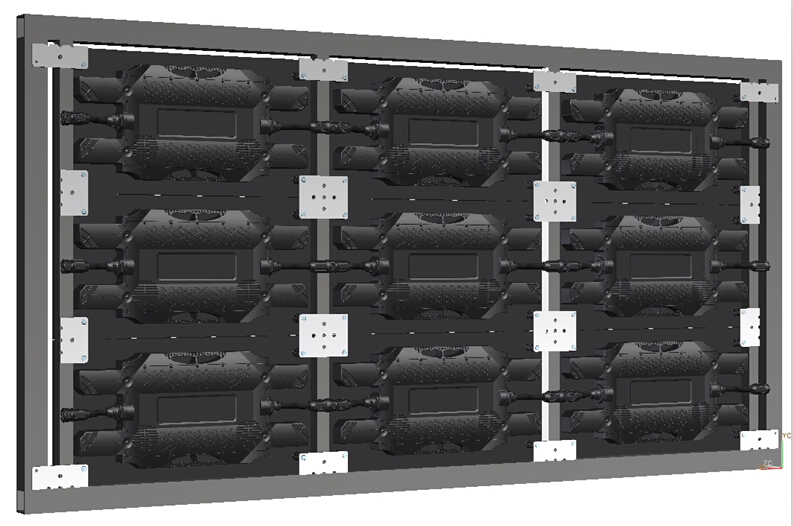

Front service through 4 screws holes on the panel and special brackets:
| Model Number | OP12FDO |
| LED type | DIP 346 # |
| Working Environment | Outdoor |
| Pixel Pitch | 12.7mm |
| Pixel Configuaration | Real Pixel 1R1G1B |
| Panel Dimensions (H x W) | 1'x2' |
| Panel Dimensions (H x W) | 304.8mm x 609.6mm |
| Waterproof: Front & Back | IP65 |
| Density of Pixel | 6200pixel/ |
| Matrix Configuration/cabinet | 24x48 Pixels |
| Weight/cabinet | 4kg |
| Panel Depth | 55mm |
| Service Access | Front & Back Service |
| Viewing Angle/horizontal | 110 |
| Viewing Angle/Vertical | 55 |
| Average Power/cabinet | 54W |
| Max Power/cabinet | 153W |
| Driving Method | 1/2 scan |
| Refresh frame Frequency | 60HZ |
| Refresh rate | 3000HZ |
| Brightness | 11000cds/ |
| Grey Scale/display color | 65536/281Trillion Color |
| Brightness Adjustment | Manual R.G.B each color 256,automatic 8 Grades are Adjustable |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITONS |
| Control System | PCTV Card(optional)+DVI Card+master Control Card+optical Transmitter(optional) |
| Data Transmission | Internet cable Transmission 100m. Multi-mode fiber Optics Transmission 500m; Single-mode optic fiber Transmission 10km. |
| System Operation Platform | Windows98/me/2000/NT/XP/WIN7/WIN8 |
| Average no Failure time | 10000hrs |
| Lifetime of LED | 100000hrs |
| Malfunction do rate | 0.0001 |
| Working Voltage | AC 110V/220V 15 50-60HZ |
| Earth Leakage Current | 0.1mA |
| Working / Storage Temperature | Working -40140 Storage -40185 |
| Working / Storage Temperature | Working -4060 Storage -4085 |
Package:
Carton with inner foam protection.
4 panels per carton, 36x69x40cm, 20kg/ctn.
Shipping: by DHL/UPS/FEDEX/TNT express. or by air to local airport. Or by sea.
Easy Control System Support Remote Control through WiFi / Cloud
Contact me right now for a price! Thank you.
