Home >Products Catalog > SW38A Double Head Pipe Bending Machines Special Use for U Shape & W Shape with Fast Bending Solution

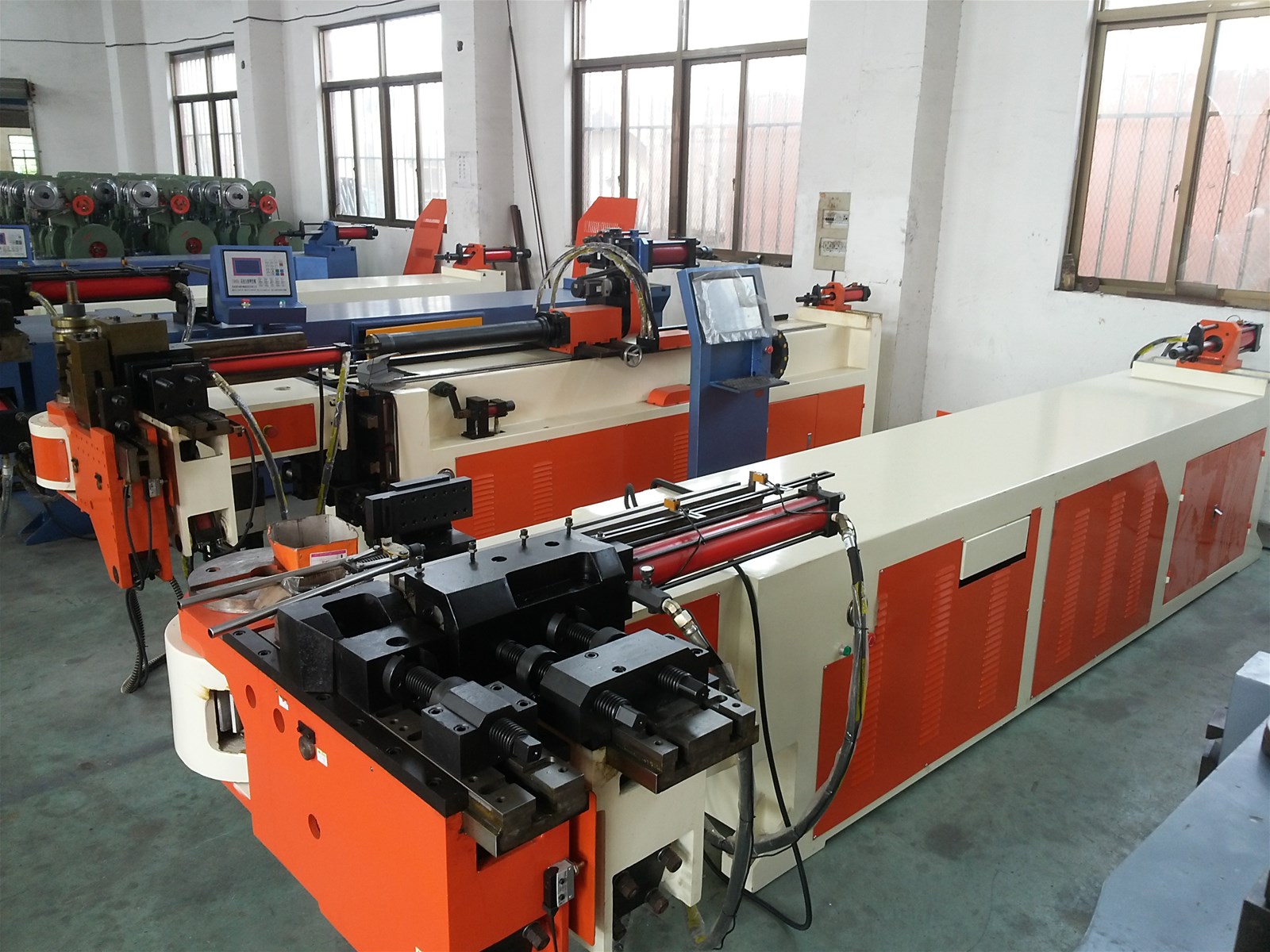

SW38A Double Head Pipe Bending Machines Special Use for U Shape & W Shape with Fast Bending Solution

Supply Ability:	20 Set(s) per Month
Shipping:	FOB Shanghai
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1SET/WOODEN CASE

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Automation: Manual
Power: Hydraulic
Brand Name: humper
Condition: New
Extra Services: Machining
Material / Metal Processed: Stainless Steel
Raw Material: Sheet / Plate Rolling
Machine Type: Pipe and Tube Bending Machine
Model Number: AW38A
Color: Optional
Name: Pipe Bending Machine
Type: AW38A
Power: Hydraulic
control: Automatic

Specifications

SW38A Double Head Pipe Bending Machines Special Use for U Shape and W Shape with Fast Bending Solution

Categories	Other pipe processing machines
Brand	TELHOO bending machine
Model	SW38A
Condition	New
Raw Material	Pipe
Power	Hydraulic
Automation	Automatic
Certificate	CE
after-sales Service Provided	Engineers available to service machinery overseas
Head	Double
Double Head Pipe Bending Machines	Double Head Pipe Bending Machines
FOB port	Shanghai, China
Terms of Payment	L/C, T/T, Western Union, MoneyGram
Download DOC
Update Time	2017-05-19

SW38A Double Head Pipe Bending Machines Special Use for U Shape and W Shape with Fast Bending Solution

Detail Information

SW38A Double Head Pipe Bending Machines Special Use for U Shape and W shape with fast bending solution

Adapted material:

Steel pipe, stainless steel, copper pipe, aluminum pipe etc.

Main specification:

Uses the microcomputer control,operates easily,performance stable,double-end curving synchronization shapes work piece of the bended pipe opens,the angle is precise, Double-end curving angle may adjust from0-1850,but must consider the material-taking problem.May establish two ases different angles to be curving

1. According to different base frame, it can be divided into standard type and rotary type.

2. Hand-operated, auto, semi-circulation and other functions can be chosen.

3.PLC control, imported electric elements. the program can be stored forever, no losing.

4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.

5. Double head can be used separately.

6.Three pieces can be bended one times.

Main Technical Parameter

Item Model	SW38A	SW50A
Power of electric machine	5.5	7.5
Max. Steel, Tube O.D.	38x1.8t	50x2.0t
Max. Stainless Steel, Tube O.D.	32x1.8	48x2.5
Max. Bending Radius (mm)	38-200	50-250
Center Distance between Two Shafts (mm)	170-1700	170-1700
Max. Bending Angle ()	185	185
Bending-Pipes quantity once	22x2	25x2
Motor power for Hydraulic (M PA)	14	14
Gross Weight	1500	2500
Machine Dimension	270x126x132	350x150x190
