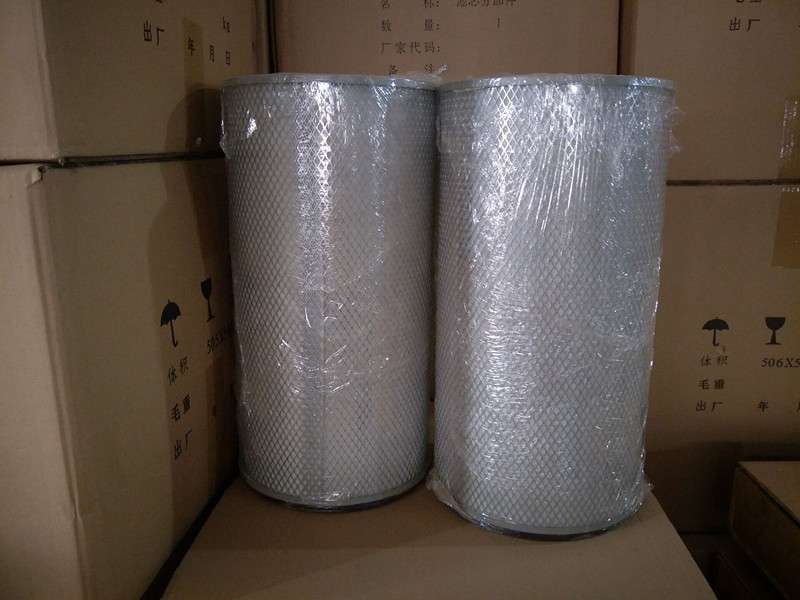

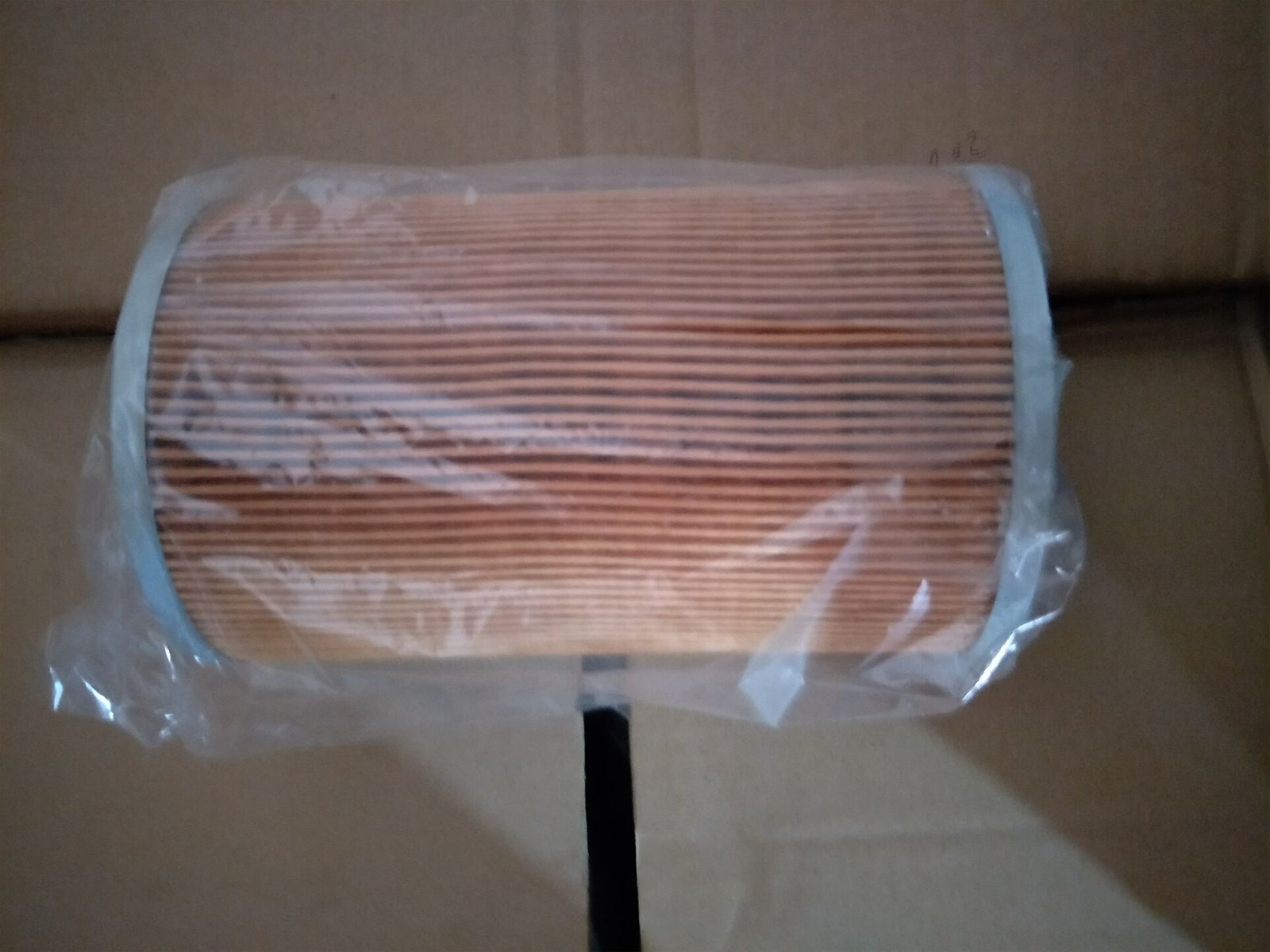

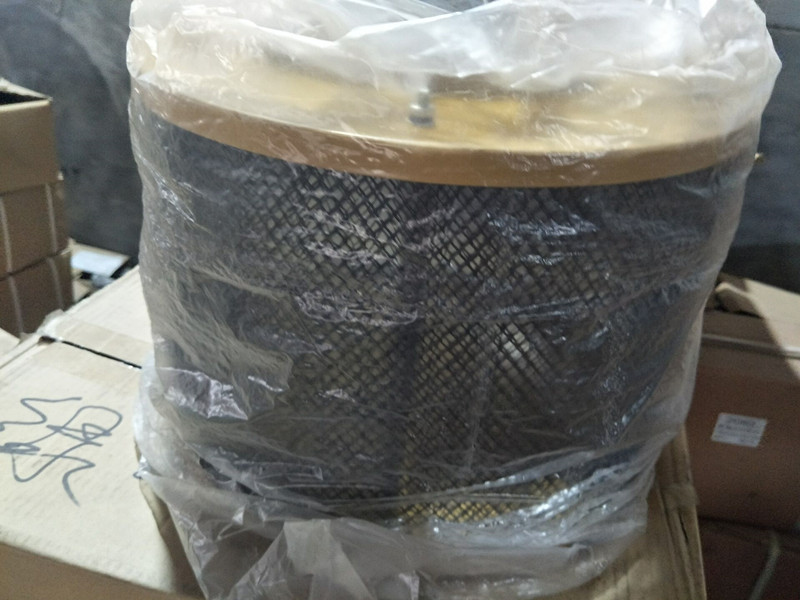

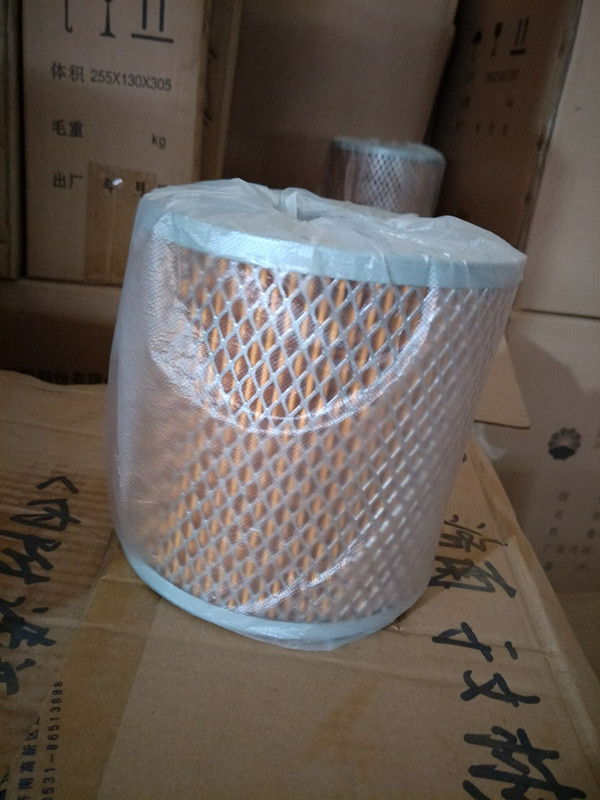

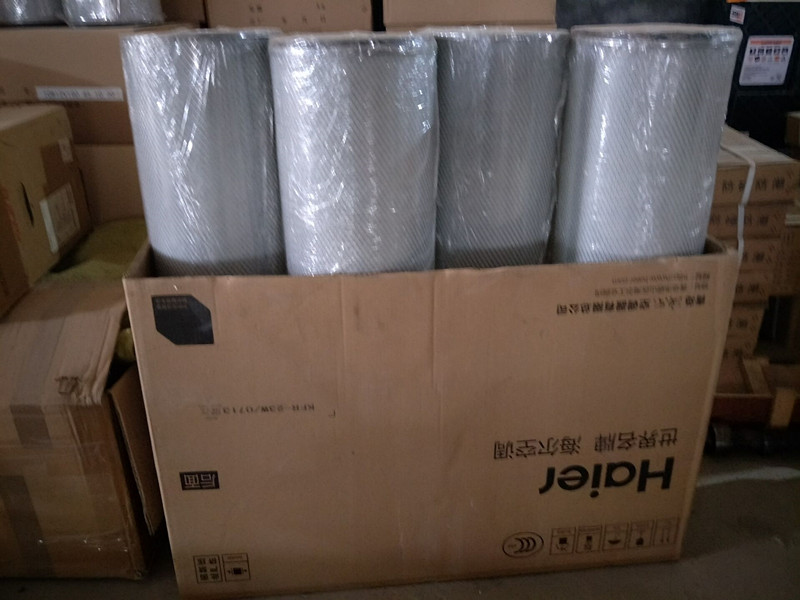

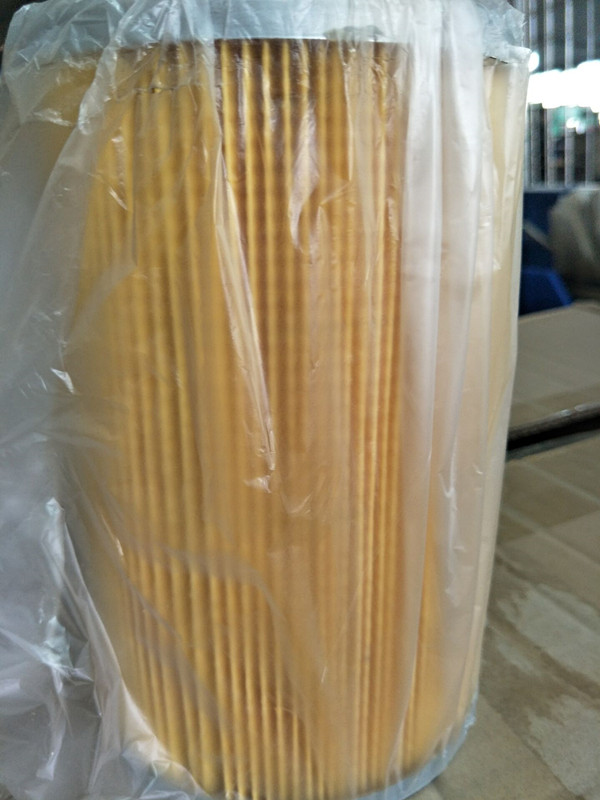

Jichai 190 Series Marine Diesel Engine Parts Air Filter/Oil Filter

Inquiry Now Start Order

Quick Details

Dimensions (L x W x H) (mm): Two two nine zero*one two four zero*one seven five zero
Engine Position: Inboard
Fuel Type: Diesel
Condition: New
Brand Name: JDEC jichai 190

Here are the models and main technical specifications of some types.

Model Item	8190Z_LD	8190Z_LC_Z-R	8190Z_LC_Z-1R	8190Z_LC_Z1-1R	8190Z_LC_Z1-2R	8190Z_LC_Z1-3R
Model Item	8190Z_LD	8190Z_LC	8190Z_LC-1	8190Z_LC₁-1	8190Z_LC₁-2	8190Z_LC₁-3
Type	Four stroke,direct injection,water cooled,turbocharged and inter cooled
No.of cylinders	8
Cylinder arrangement	in line
Cylinder bore (mm)	190
Piston stroke	210
Total piston displacement	47.63
Compression ration	14.5:1
Rated power (KW)	720	720	600	490	500	650
Rated speed(r/min)	1500	1450	1200	1200	1000	1300
One hour power (kw)	800	792	660	539	550	715
One hour speed (r/min)	1500	1496	1239	1239	1032	1342
Min stabilized operating speed (r/min)	650	650	540	540	400	580
Min stabilized operating speed(r/min)	600
Specific fuel consumption(g/kw.H)	204		202
Specific oil consumption(g/kw.H)	1.2
Max firing pressure(Mpa)	12
Mean effective pressure(Mpa)	1.2	1.251	1.26	1.03	1.26	1.26
Mean piston speed(m/s)	10.5	10.51	8.40	8.40	7.00	9.10
Stabilized speed droop(%)	8;for generating set5
Exhaust temperature before turbine(C)	600
Oil pressure in main passage(KPa)	300~600
Oil temperature in main passage(KPa)	90
Net weight (kg)	4500
Overall dimension(LWH)	317512082055

Main technical data

No. and arrangement of cylinders:8-cylinder,in-line

Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection

Bore:190mm

Stroke:210mm

Total displacement:47.6L

Compression ration:14.5:1

Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)

Starting method:Air motor or electric motor

Lubricating method:Pressure and splash lubrication
