Full HD 1080p CCTV Camera TVI/AHD/CVBS/CVI 4 in 1 Mini Pinholoe Cameras SafeBuy Supplier Member

FOB Reference Price: $ 99
Wholesale: ≥1 Piece(s)
Supply Ability: 50,000 Piece(s) per Month
Shipping: 2-6 work days for samples;7-20 work days for bulk order
Payment Terms: T/T, Western Union, PayPal
Update Time: 2018/8/2
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Color Box,Neutral Packing,Export Carton

Quick Details

  • Special Features: AHD/TVI/CVI/CVBS Analog
  • Technology: Pinhole
  • Sensor: CMOS
  • Type: Analog Camera
  • Brand Name: MiyeaEYE
  • Style: Mini Camera
  • Model Number: ACT200-AST1-P4
  • Pixel: 1080p Full HD
  • Lens: 3.7mm pinhole lens
  • Camera type:: Analog/AHD/CVI/TVI Camera
  • Image Sensor:: 1/3 inch CMOS Sensor

Specifications

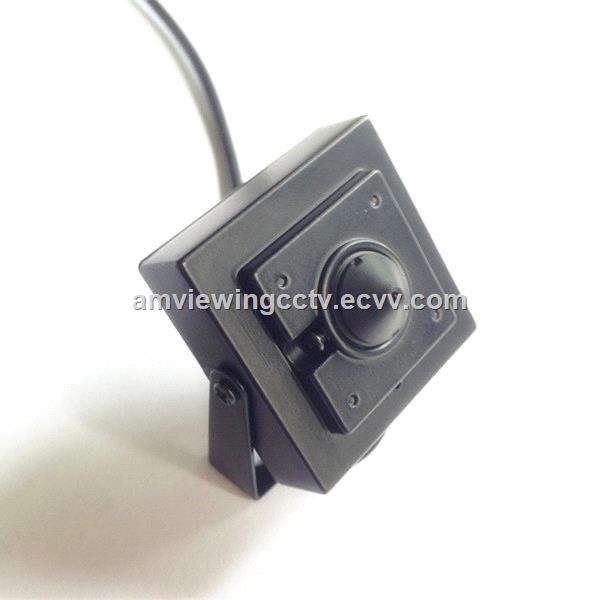

1080P TVI/AHD/CVBS/CVI 4 in 1 pinhole camera
Full hd 1080p cctv camera TVIAHDCVBSCVI 4 in 1 mini pinholoe cameras

1080P PIR Style Camera Night Vision TVIAHDCVBSCVI 4 in 1 PIR Security CCTV Camera

*1/3"  HDIS CMOS (1080P/960P/720P) High resolution picture;

*AHD analog camera
*720P/960P/1080P High definition video
*OSD menu(optional)

*DWDR,DNR,Motion dection,Mask

*Fixed Megapixel lens

*Indoor



Specification

Model

ACT200-AST1-P4

Resolution

2.0Mega Pixel  1080p

Main Chip

High Performance

Image Sensor

1/3" CMOS of sony 2441+IMX323 IR-cut

Effective Pixel

PAL:  1920*1080@25fps
NTSC: 1920*1080@30fps

Signal System

PAL/NTSC

Video Standard

Follow AHD/CVI/TVI and CVBS Standard

Video Output

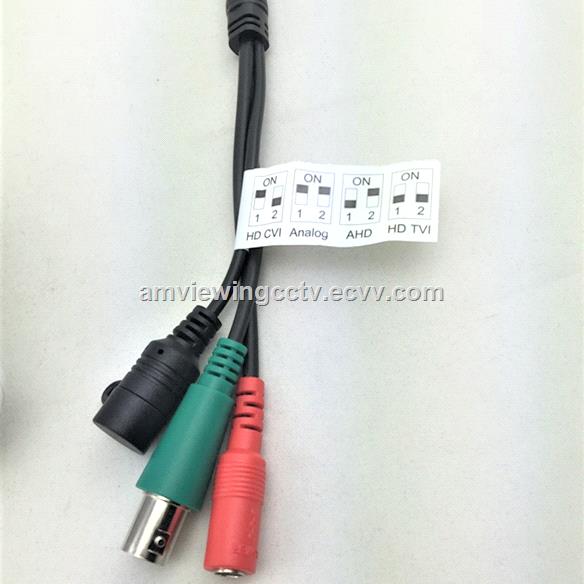

1CH AHD/CVI/TVI/CVBS Standard Signal Output(Switchable)

Max Transmission Distance

Common 75-3lines can be up to 500m

Lens Size

3.7mm Megapixel lens

Minimum Illumination

0LUX/F1.2(LED on)

IR-CUT

Auto Switch

LED

w/o

IR Distance

10m

Shutter Speed

4/25s-1/45,000s

BLC

off/Low/Medium/High/Highest

White Balance

Auto White Balance

HLC

Support

Operation Temperature

-10C~55C

Power Supply

DC12V

Housing

Metal

IP Rate

Indoor Use
