Flag Type Overhead Type Short Circuit &Ground Fault Indicator

Supply Ability:	5,000 Stone(s) per Month
Shipping:	7-10 working days
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	With Cabinet

Quick Details

Brand Name: SNOVA
Rated Voltage: 10KV-50KV
application: Ring Network Cabinet
Material: Plastic
name: Fault Indicator
Model Number: FDR-330-M/Q
Output Voltage: 220V
Input Voltage: 220V
Output Type: Multiple
Output Power: 101 - 200W

Specifications

SNV309 Remote communication terminal

Instruction Manual

NOTE: the below INTROUCE USE for " GSM MOBILE PHONE VERSION" and " GPRS WEB SERVICE VERSION", " GSM /GPS MOBILE PHONE VERSION" and " GPRS/GPS WEB SERVICE VERSION", READER CHOOSE to READ ACCORDING YOUR PURCHASE REQUIREMENT!!!!

Description

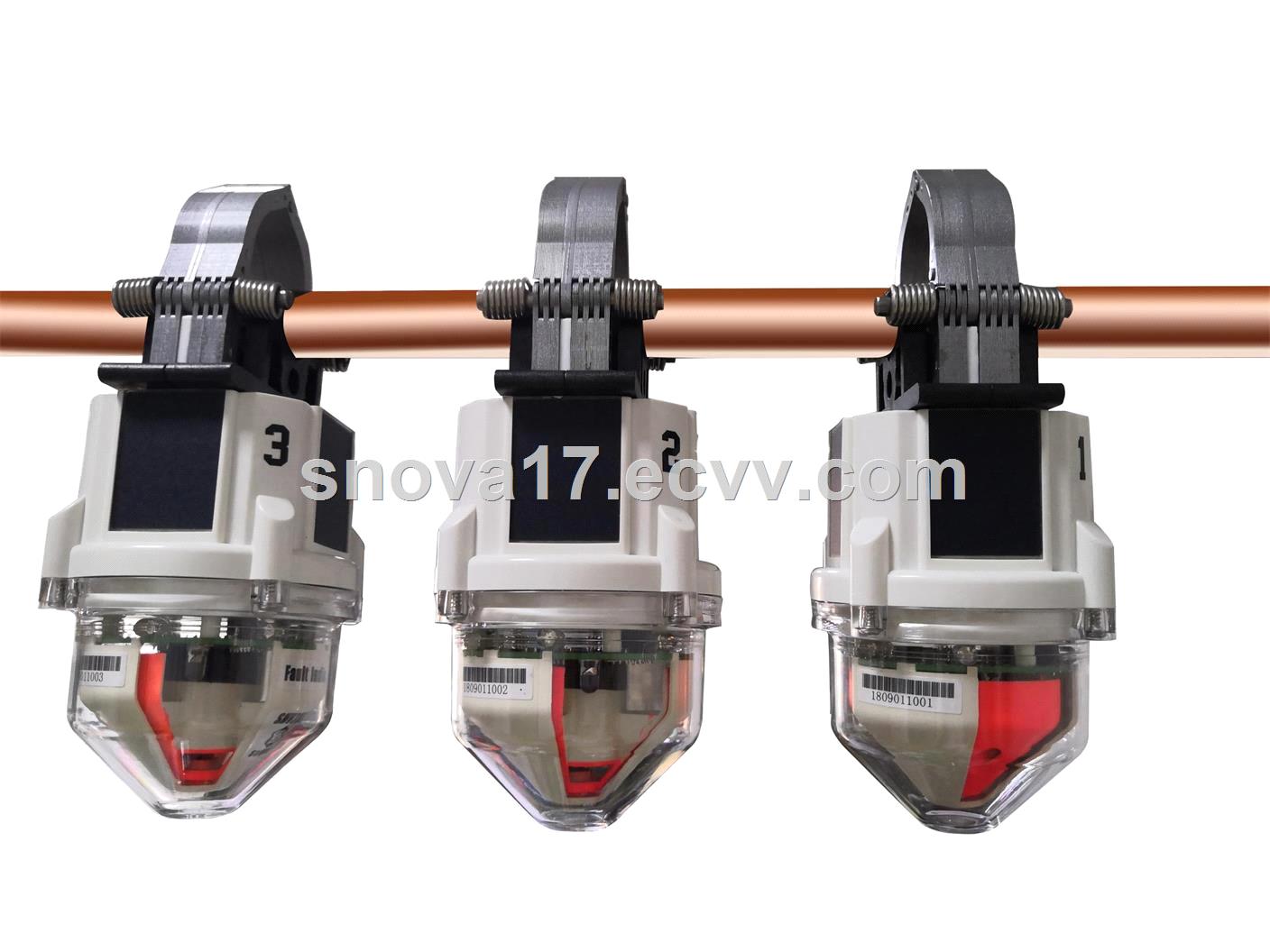

* SNV series overhead type Fault Indicator system is based on the Sensor that through CT get the (10KV-50KV) line's current signal, through smart computer chip by program calculating, Analysis,judge the short circuit or ground fault. When Sensor detect the fault happen, then the Fault indicator warn the manager through turn red flag, and shine red LED. It is good for power managing user to find the fault happen reason and place, then fast solve the problem and make the power restore.

* SNV Fault Indicator with the aid of the professional control terminal equipment and Web server, it can achieve to remote read and manage the Fault indicator state on times.

* There are two channels for reading and managing the remote fault indicators. One is through GSM mobile phone SMS command control. Second is user computer software control. Power managing user, can get the fault indicator information on times

Control Terminal

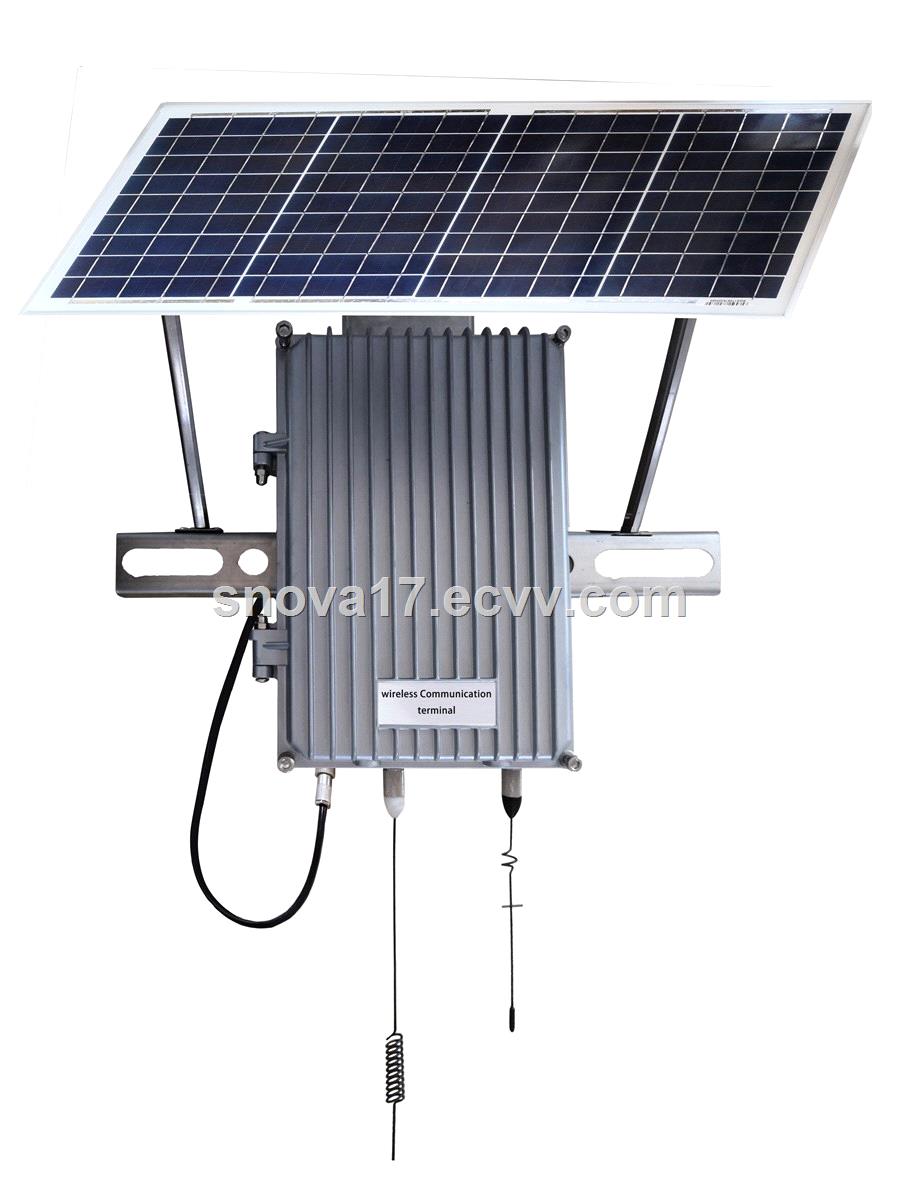

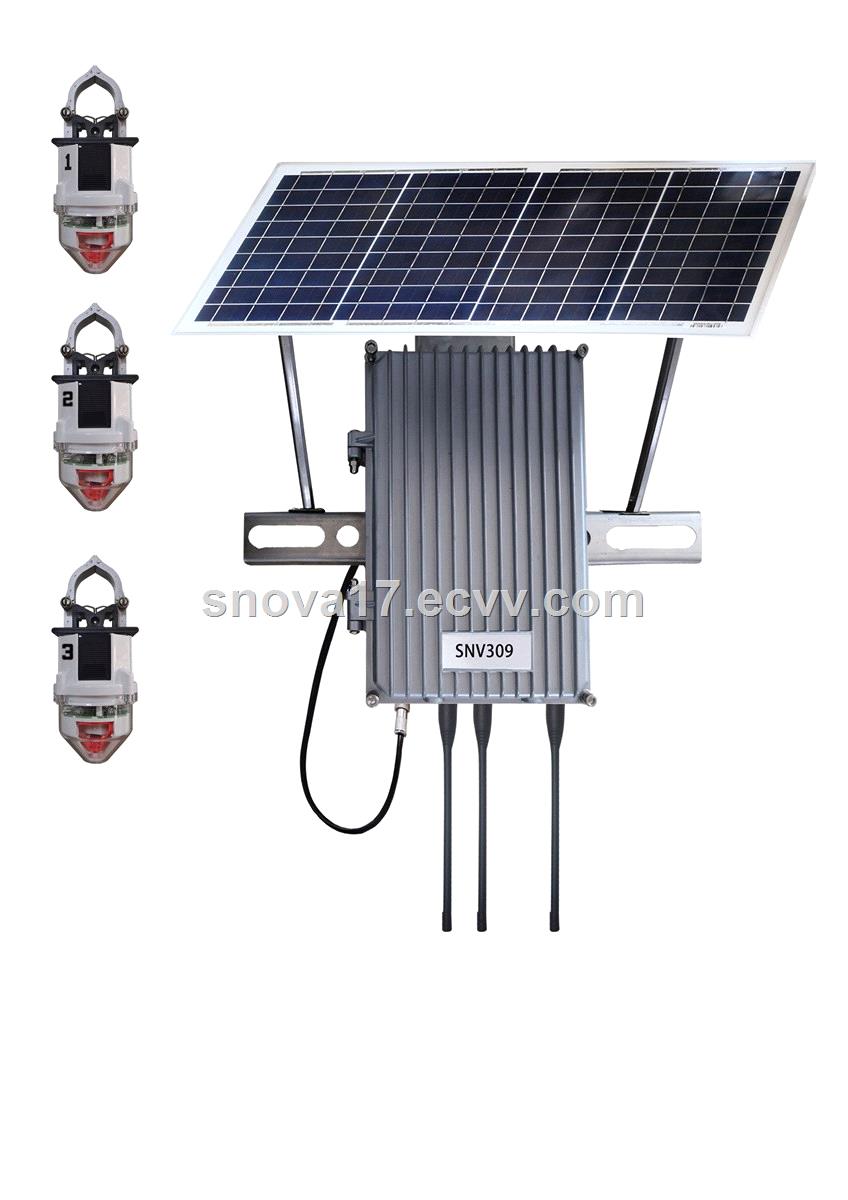

Type: SNV309-CommunicationTerminal RTU

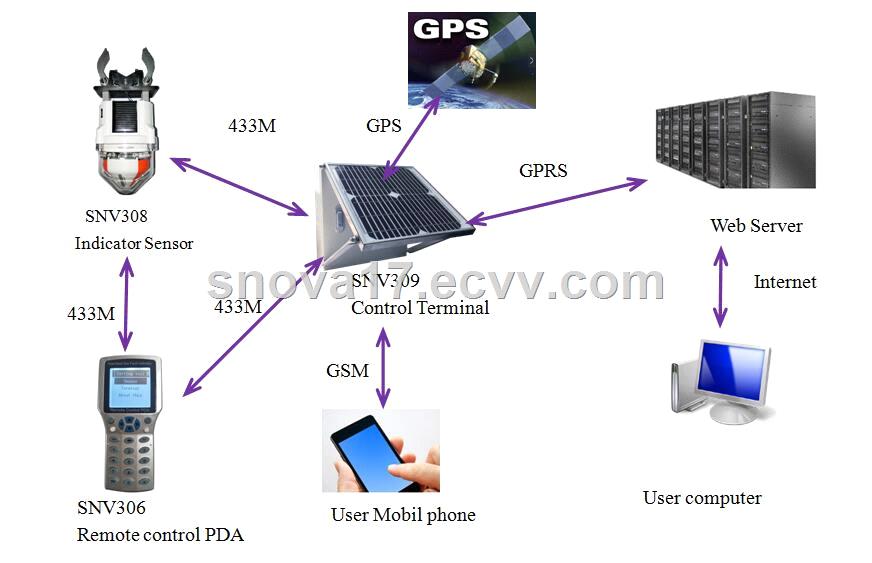

  Control terminal is use for the communication between the fault indicator, GPS satellite and web server or user GSM mobile phone. There need insert a SIM card with GPRS and GSM function.

* First, Fault indicator will auto upload information to Control Terminal real time through 433M wireless communication..

* Second, When user use mobile phone, send SMS command to control terminal, then terminal will execute command and send Corresponding information to user mobile phone.

* Third, When the control accessed with web server, the terminal will upload all information to web sever. User can read and manage the all the accessed fault sensor state real time through run a professional software on computer. Computer required connected with internet.

*Fourth, GPS Function, when the terminal put outside, then the GPS antenna will connect with GPS satellite and terminal will get the GPS position, longitude and latitude value.
