Shenzhen Richroc Electronic Co., Ltd.
China Manufacturer with main products: 12v Mini UPS, Mini UPS, UPS Battery, Router UPS, 12v DC UPS, Mini UPS for WiFi Router, DC Mini UPS, 5v UPS |
11th
Home
>Products Catalog > Other DC UPS > 12V 12W 2200mAh Mini Rechargeable Li-Ion Battery UPS DC 12v Power Supply UPS Battery for CCTV Cam Monitoring

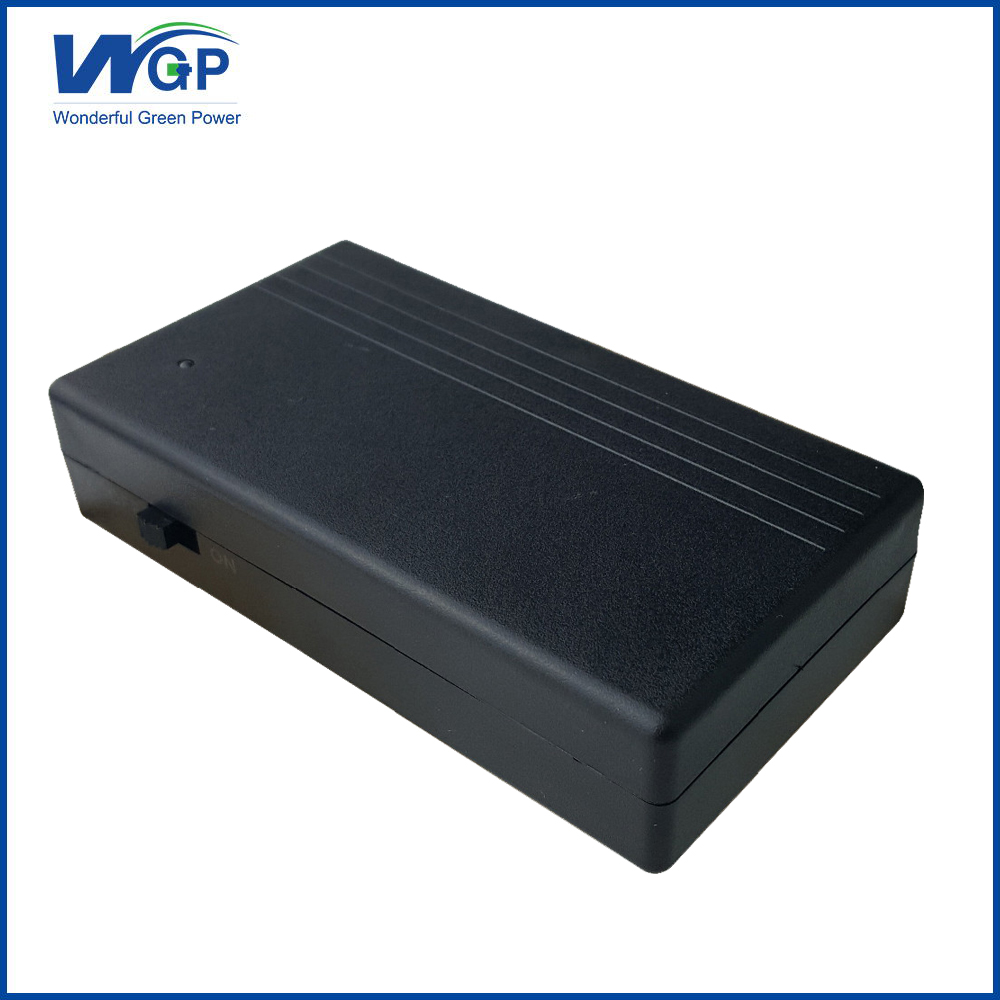

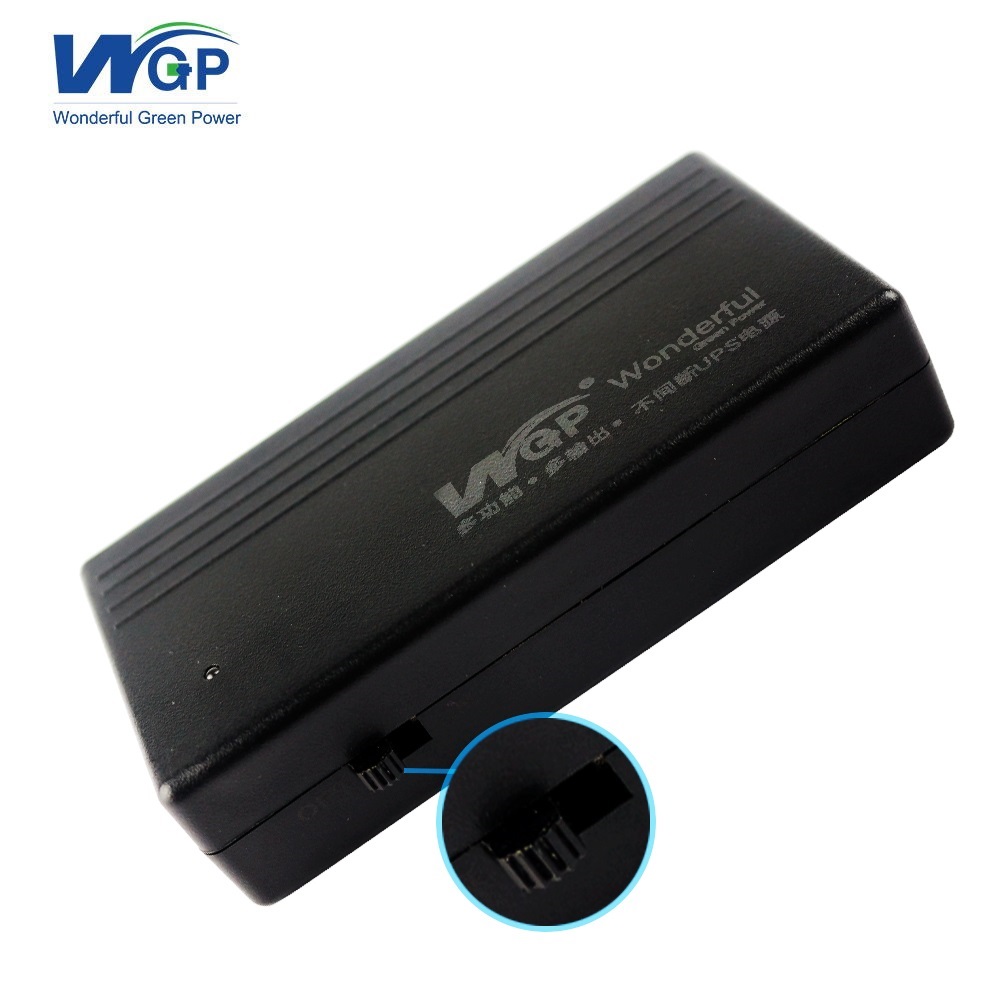

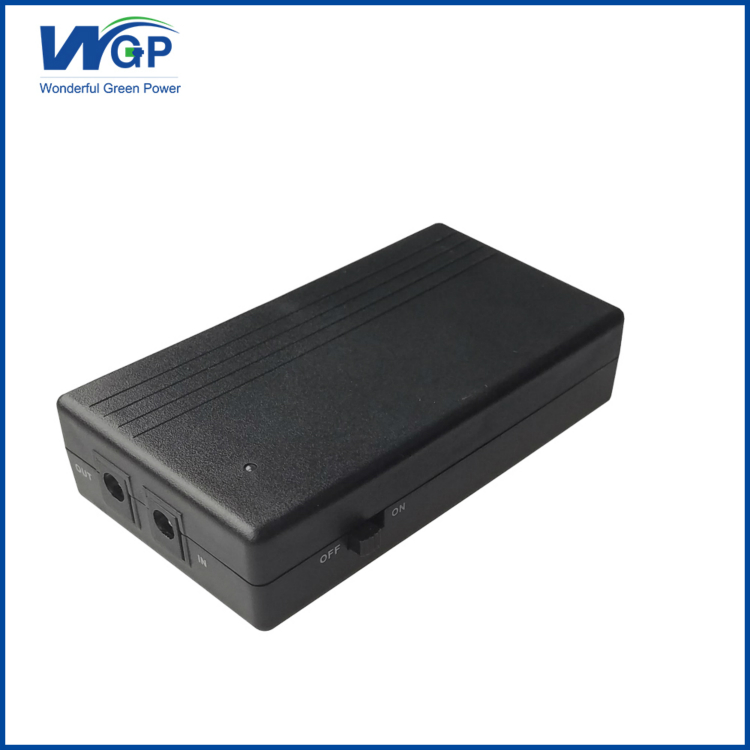

12V 12W 2200mAh Mini Rechargeable Li-Ion Battery UPS DC 12v Power Supply UPS Battery for CCTV Cam Monitoring
| Supply Ability: | 3,000 Piece(s) per Week |
|---|---|
| Shipping: | Bpost international,Turkey Post,China Air mail |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | carton box |
Quick Details
- Application: Security / Monitoring / Alarm
- Type: On-line
- Protection: Overcurrent
- Phase: Single Phase
- Brand Name: WGP
- Output Voltage: 12V
- Weight: 153g
- Model Number: UPS1201A-02
- Capacity: 2200mAh/16.28wh
- Type: 12V 1A mini ups
- Battery Type: 18650 li ion battery
- Input: 12V 1A
- Output: 12V 1A
- Dimension: 111*60*26mm
- Net Weight: 153g
- DC cable: 5.5*2.5mm~5.5*2.1mm
- Input jack: 5.5*2.1mm OUT:5.5*2.5mm
- Keywords: mini ups 12v dc
Specifications
12V 12W 2200mAh mini rechargeable Li-ion battery UPS DC 12v power supply battery for CCTV cam monitoring
Mini-UPS uninterrupted power supply acts as a backup battery during power interruption. CCTV cameras are supplied with direct current from the adapter while the Mini-UPS is automatically charged. for the estimate back up time,please contact me,I'll calculate for you.
1, Used safe and environmental lithium ion cells,
2,with credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS,
3,Created by high performance and efficiency DC-DC, boosting and switching circuit.
4,Also wiith perfect over-charged, over-discharged, over-current and short-circuit protection.
Product Specification:
| 12V mini UPS Basic Information | |
| Model | UPS1201A |
| Capacity | 2200mAh/16.28wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 12V10% |
| Input current | 1000mA |
| OutPut Voltage | 12V10% |
| OutPut current | 1000mA |
| Discharging transfer efficiency | 85% |
| Protection | over charge,over discharge,over current,short circuit |
| over-discharged protection(battery) | 6.0V( over-discharged release 6.3V) |
| over-charged protection(battery) | 8.5V( over-charged release 8.25V) |
| with load current(battery) | 2000mA |
| Working temperature | -20C~85C |
| Weight | 153g |
| Size | 111x60x26mm |
| Warranty | 1 year |
| Certification | CE,RoHS,FCC,PSE |
WHY CHOOSE US:
1. Accept sample order: Before choose us as business partner,you can place sample order to test our products and services.
2. Low MOQ: We are factory not wholesaler or trading company,we can controll the order to support your business,we accept low MOQ.
3.OEM/ODM:We have our own Design Dept. and experienced engineering team,we can develop new samples according to the market change and need,to win the market for our customer. If you are not ready for the design, our engineers will help you about it freely with their expertise.
4. Factory price: Factory directly sell,price is much lower than retailer,wholesaler or agents, save you much cost!
5.Quality and delivery time: 80% of employees with at least 3 years experience in production,engineering and technology.What's more,we have our own PCBA Dept,so we can control the qaulity of PCB part and producing process.
6.Warranty: 1 year warranty.If you have problem,just show us the picture or vedio,we will resend free one in your next order.
7.Protection: Your market will get well protected.If you be our agent,we won't sell to other buyer in your country,you are the only occupant of the market.
