Home  >Products Catalog > Weaving Mesh Machine > 25-120mm Hole Double Wire Feeding Fully Automatic Chain Link Fence Machine

25-120mm Hole Double Wire Feeding Fully Automatic Chain Link Fence Machine SafeBuy Supplier Member

FOB Reference Price: $ 12000
Wholesale: ≥1 Set(s)
Supply Ability: 50 Set(s) per Month
Shipping: Sea ,land
Payment Terms: T/T
Update Time: 2018/5/2
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: bulk or according to customers request

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Condition: New
  • Brand Name: ZT-HH
  • Weight: 2 tons
  • color: customerized
  • Model Number: Chain link fence machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Condition: New
  • Weight: 5 tons
  • color: customerized
  • Function of Machine: Weaving Chain Link Fence
  • Machine Width: 2m-6m
  • Wire dia:: 1.5-4.5mm
  • Hole opening: 25mmx25mm-100mmx100mm
  • Speed: 80-150m2/H
  • Wire Feeding System:: Single wire & Double wire

Specifications


China 2m-4m width double wire feeding Fully Automatic Chain Link Fence Machine for fence

25120mm hole double wire feeding Fully Automatic Chain Link Fence Machine

Key Specifications/Special Features:1. the specification of Chain Link  fence mesh machine:
1. Wire diameter: 2.0-4.0mm (What is your requirement of wire diameter?)
2. Hole size: 30x30-120x120mm (What is your requirement of mesh hole size?)
3. Netting width: 600-4000mm (What is your requirement of mesh netting width?)
4. Mesh edge: bending, twisting (Please check if bending or twisting, both ok.)

2.the Material ofChain Link  fence meshMachine:
Galvanized wire, PVC wire. Stainless-steel wire

 3.the Type of Chain Link  fence meshMachine:
Technology: automatic type, Semiautomatic type,
 Feedingsysyterm:double wire and single wire twisting
4.Electrical Systems ofChain Link  fence mesH machine:
 1). Germany Siemens PLC origin
 2). Frequency converter is selected from Japan "YASKAWA Electrical
 3). Low-voltage electrical from Germany Schneider
 4). Motor is from Taiwan Teco Electric
 5). Clutch & Brake is from Taiwan YA CO,.LTD.
I.Double wire Automatic Chain Link Fence Machine
Wire Diameter(mm)
1.8-4.0mm Feeding Wire numbers:two(Note:Steel Wire Standard:GB3081-82)
Mesh Size(mm) 25x25-100x100
Netting width(mm) 500--4000
Capacity(m2/hour) 50-120
Rated Voltage 380V,50HZ
Motor Power 9.0KW
Weight (T) 4.2
Outside Size 7000*1430* 1800mm, 5000*1700* 1250mm
Delivery time 30days
Payment T/T 30% in advance,balance 70% before loading machine.


II.Single wire Automatic Chain Link Fence Machine


Product Name Automatic Chain Link Fence Machine
Wire Diameter(mm) 1.5-4.0mm Feeding Wire numbers:single(Note:Steel Wire Standard:GB3081-82)                                                                                         1.8-4.0mm Feeding Wire numbers:single(Note:Steel Wire Standard:GB3081-82)
Mesh Size(mm) 20x20-50x50 40x40-100x100
Netting width(mm) 600--2000 600--2000
Capacity(m2/hour) 40-80 50-100
Rated Voltage 380V,50HZ 380V,50HZ
Motor Power 6.0KW 6.0KW
Weight (T) 2.8 2.8
Outside Size 3700*850* 1600mm 3500*1000* 1500mm2800*1400*1400mm 3700*850* 1600mm 3500*1000* 1500mm2800*1400*1400mm

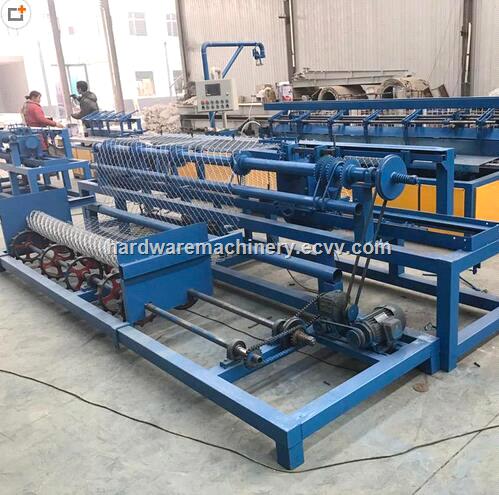

25120mm hole double wire feeding Fully Automatic Chain Link Fence Machine


Chain Link fence mesh Machine Performance:

1.Designed for continuous working system as 24 hours.
2.Double wire input
3.Two sets mold for free
4.Long using time for mold
5.Low tolerance for mold +/-1mm
6.Wire fencing option up to 6 meters height.(the minimum could be any size)
7.Wire fencing capacity(speed):120m2/hour-(as result of tests 70mm mesh size)
8.It works with any thickness between of wire 1.5mm and 6mm.
9.between 25mm-100mm of mesh size wire fencing
10.Can be used with kinds of galvanized or PVC wire

 chain link fence mesh machine after-sales service:

Installation and commissioning:
Machine to be installed and commissioned by ZT-HH technicians.
the seller will send our engineer to install the machine accordingly if the buyer need.
the buyer have to pay the salary US$100 per day, and the air ticket, accommodation,
Eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.

 We promise:
1. No matter we cooperate or not, when you click this site, we promise to Answer you quickly and supply enough information for your query, share the condition of China market with you;
2. No matter your orders are small or big, we promise that you can receive " client is god" service
3. Project service: no matter your project is big or small, we are glad to Collect required materials to ship them containers. You don't need to Contact several factories but receive several " NO" from them due to Small quantity. You also don't need to worry quality as we inspect Everything here for you.


If you have any interest in our chain link fence machine,please feel free to contact with us.

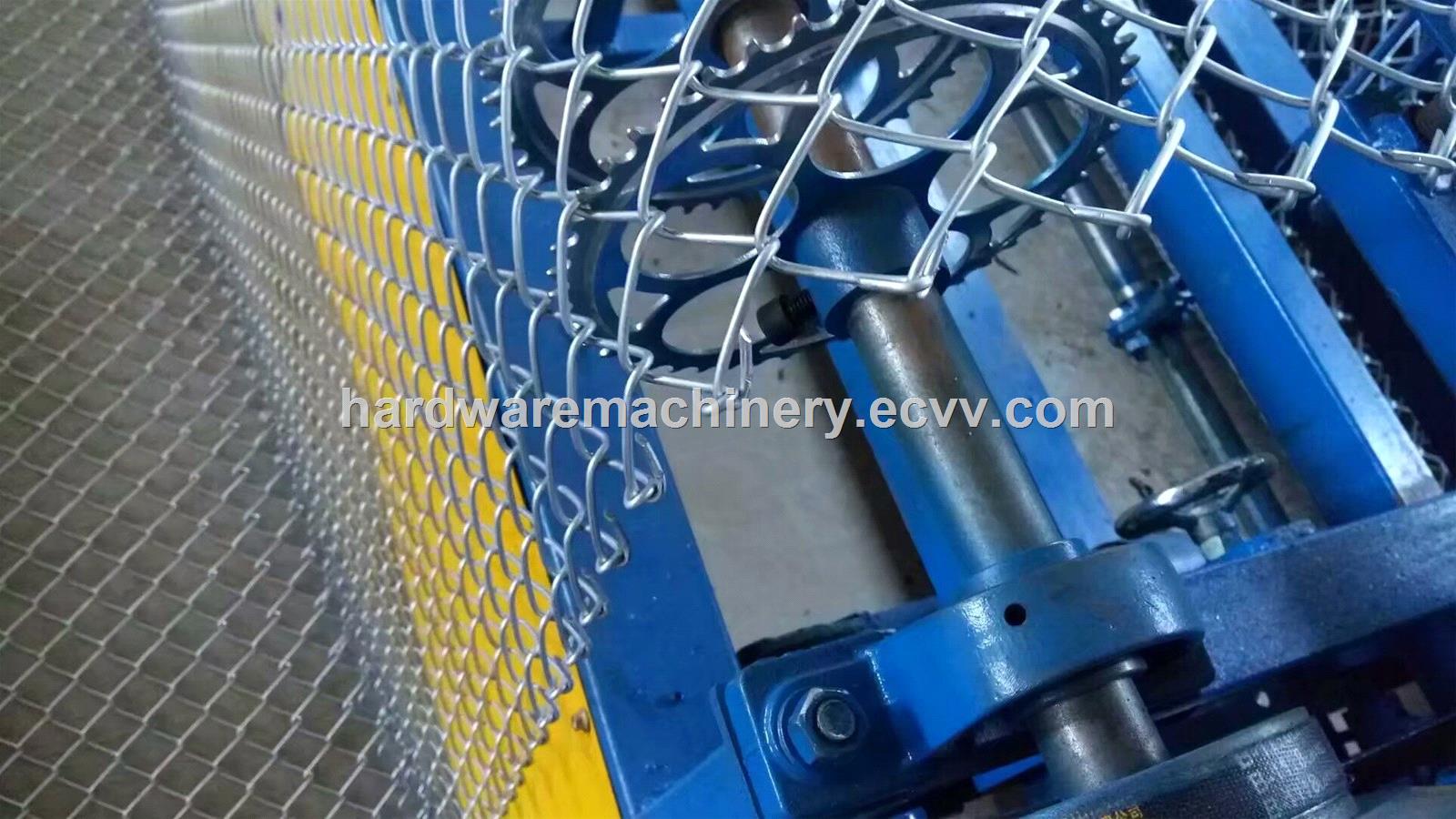

25120mm hole double wire feeding Fully Automatic Chain Link Fence Machine

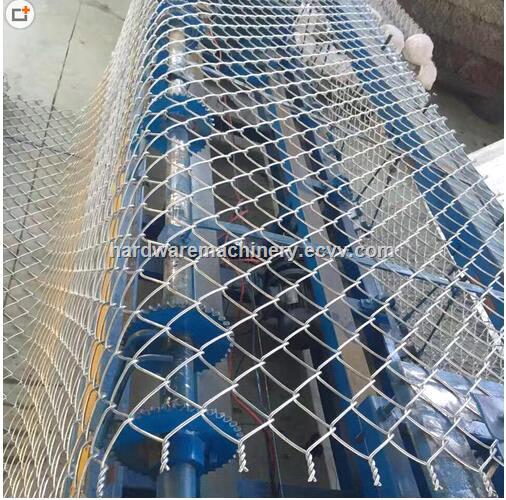

25120mm hole double wire feeding Fully Automatic Chain Link Fence Machine25120mm hole double wire feeding Fully Automatic Chain Link Fence Machine
