EKL4 Short Circuit & Grounding Fault Indicator

Specifications

Description

 SNV-EKL4 v2.1, Earth fault and short circuit indicator, it Widely used in various ring cabinets, high/ Medium or low -voltage switch gear and cable branch box in power system, can accurately and reliably detect the fault section and fault type of power grid in the Low/medium voltage network. the use of cable type grounding fault and short circuit indicator is an efficient way to check cable fault, and is an effective way to improve the operation level of distribution network and the efficiency of fault handling. the design uses electromagnetic induction, and single chip microcomputer control technology to make fault alarm with high accuracy and strong anti-interference ability.

Equipped with fault remote transmission port, suitable for distribution network automation;  Battery low power alarm indication; Low-power consumption design, high-capacity lithium battery power supply, long battery life (more than 10 years); external structure using card or lock design, the whole machine is easy to load and unload.

Function character:

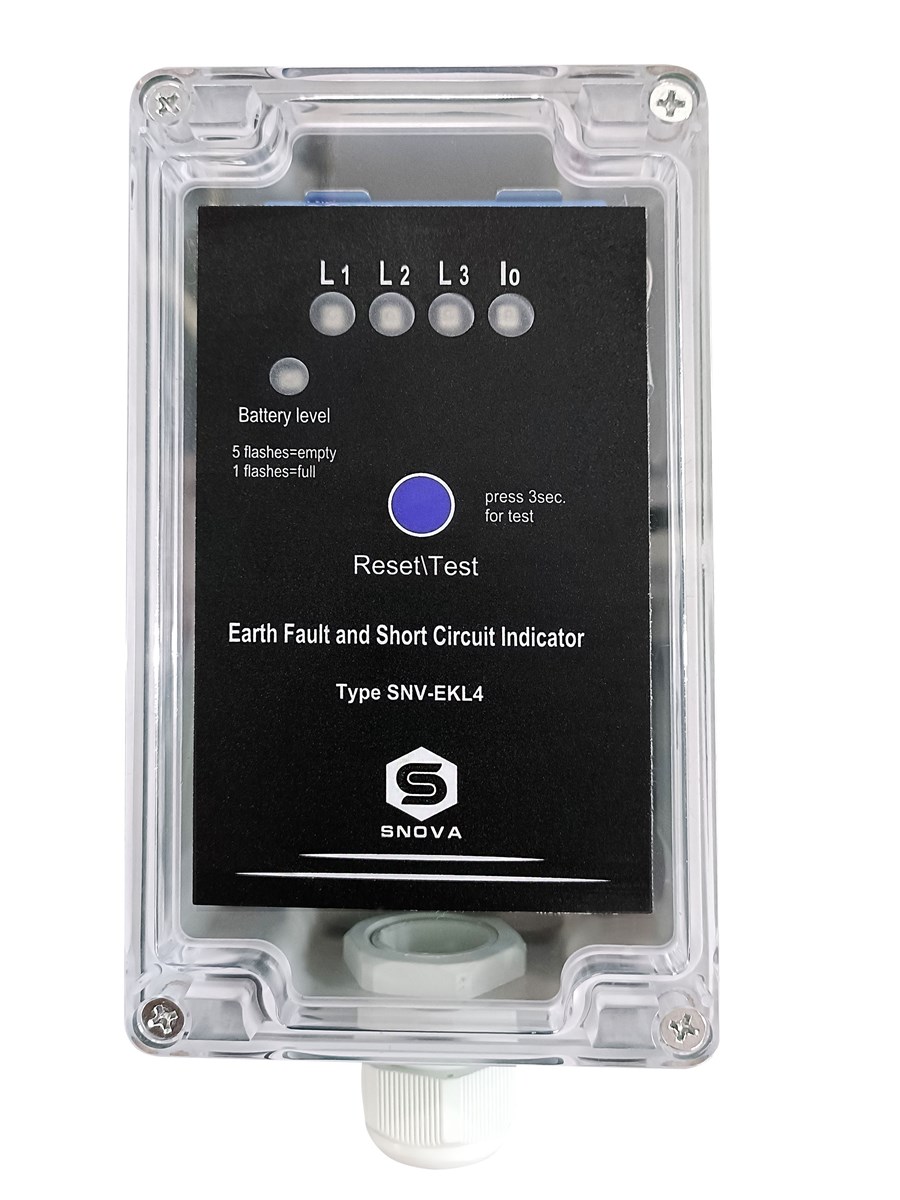

1) Intelligent detection of ground fault and through the corresponding LED (I0),on the display unit to indicate fault.

2) Intelligent detection of short circuit fault of phase to phase and through the corresponding LED (L1, L2,L3),on the display unit to indicate fault.

3)Display unit designed with button, it is convenient for reset or test.

4)the pulse width time of fault current (Response time) can be set to prevent incorrect fault indication caused by surge current through modbus of RS485 port.

5)It can reset and detect the remote fault indication device remotely by SCADA or press key.

6)It can provide switch volume for external devices through remote contact.

7)It canChange the reset time after fault happen through Modbus of RS485 port. (when purchase, it need to tell factory to set,default 8hours).

8)Remote fault indicating can be made by externallamp.

9)Earth fault alarm current (40/50/60/70/80/100/120/250A)

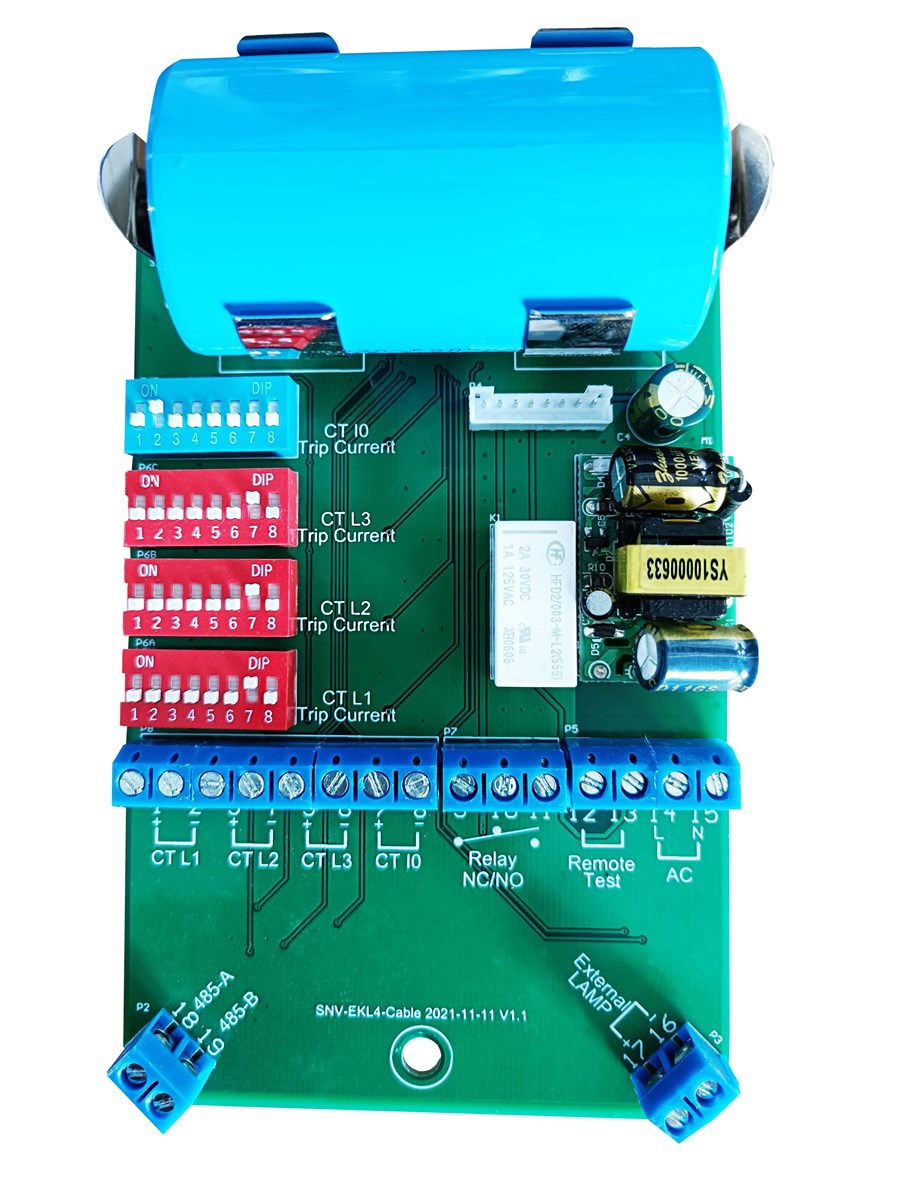

Tripping current(350/400/450/500/550/600/650/700A),8-level can be settable through a DIP switch inside of the display unit.(optional).

10)Low battery display and alarm test through press the " Test/reset" key by 3seconds.

11) Battery can be changeable conveniently, Big capacity 19000mHA,D- Size, ER34615.

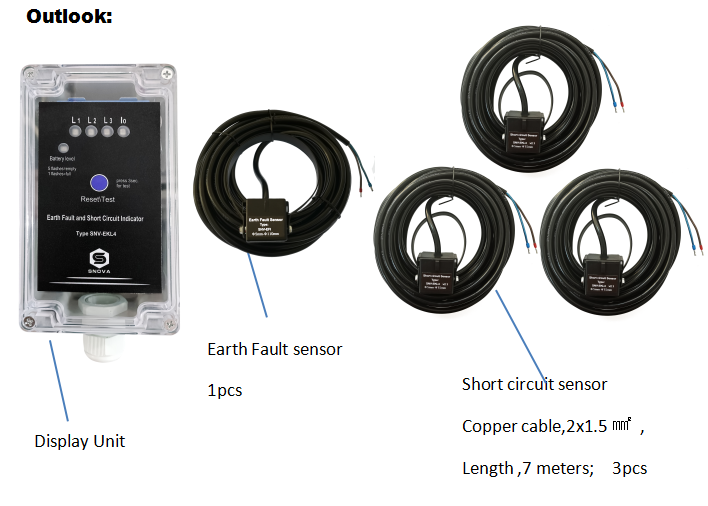

12) Sensor cable spec: NYAF,copper cable,(2x1.5),7 meters length.

13) Support AC/DC power input, AC48-240V.

14) Support Automatic Low voltage reset, AC>30V.
