20ft 40ft 3 Axle Skeleton Semi Trailer for Sale

Supply Ability:	50 Unit(s) per Month
Shipping:	Qingdao port
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	Nude packing

Quick Details

Use: Truck Trailer
Brand Name: HYCH
Max Payload: 32T
Size: 12500*2500*1550mm
Material: Steel
Use: transport 20ft 40ft container
Type: Semi-Trailer
Product name: 40ft container trailer
Axle Brand: BPW/FUWA
Suspension: Mechanical Suspension
Tire: 12R22.5
Function: Transport 20ft 40ft Container
Landing Gear: Heavy Duty Landing Gear
King pin: 2"(50mm)or3.5"(90mm) JOST
Color: Customers Optional
Axle capacity: 13T
leaf spring: leaf spring or air bag

Specifications

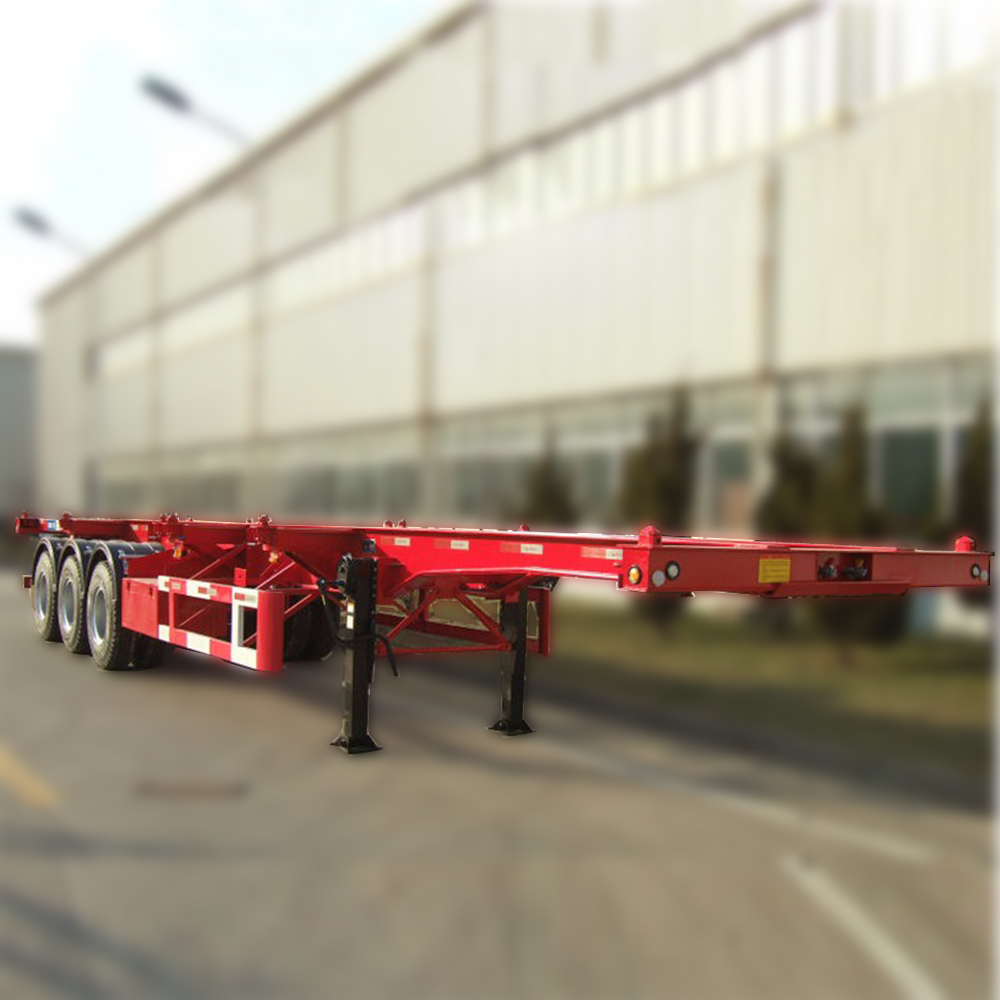

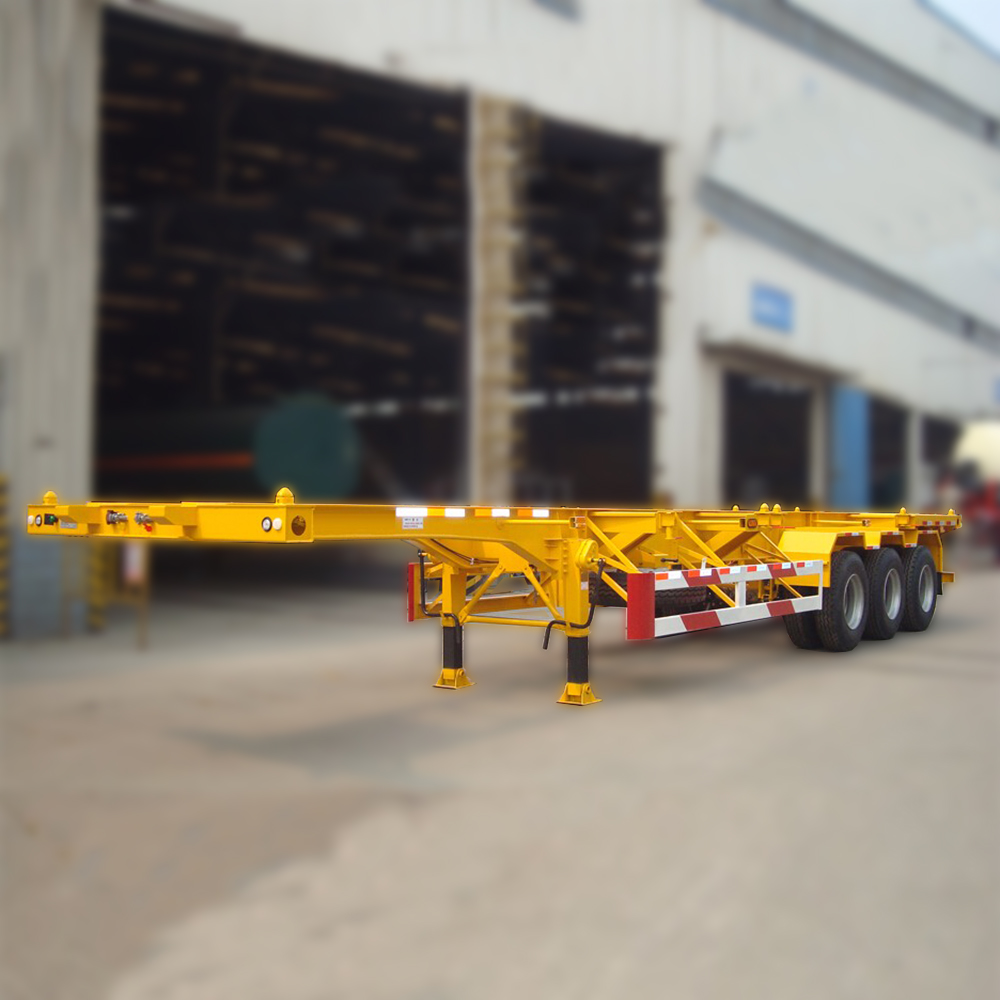

20ft 40ft 3 Axle skeleton semi trailer for sale

1.Product Information

the skeleton semi trailer is specially designed to carry vaious cargo containers.You can choose to use you load trailer transport one 20 inch,40inch or 45 inch container or two 20 inch containers at one time.the only difference that your choice makes is the number of locks required for specific transportation appplications.

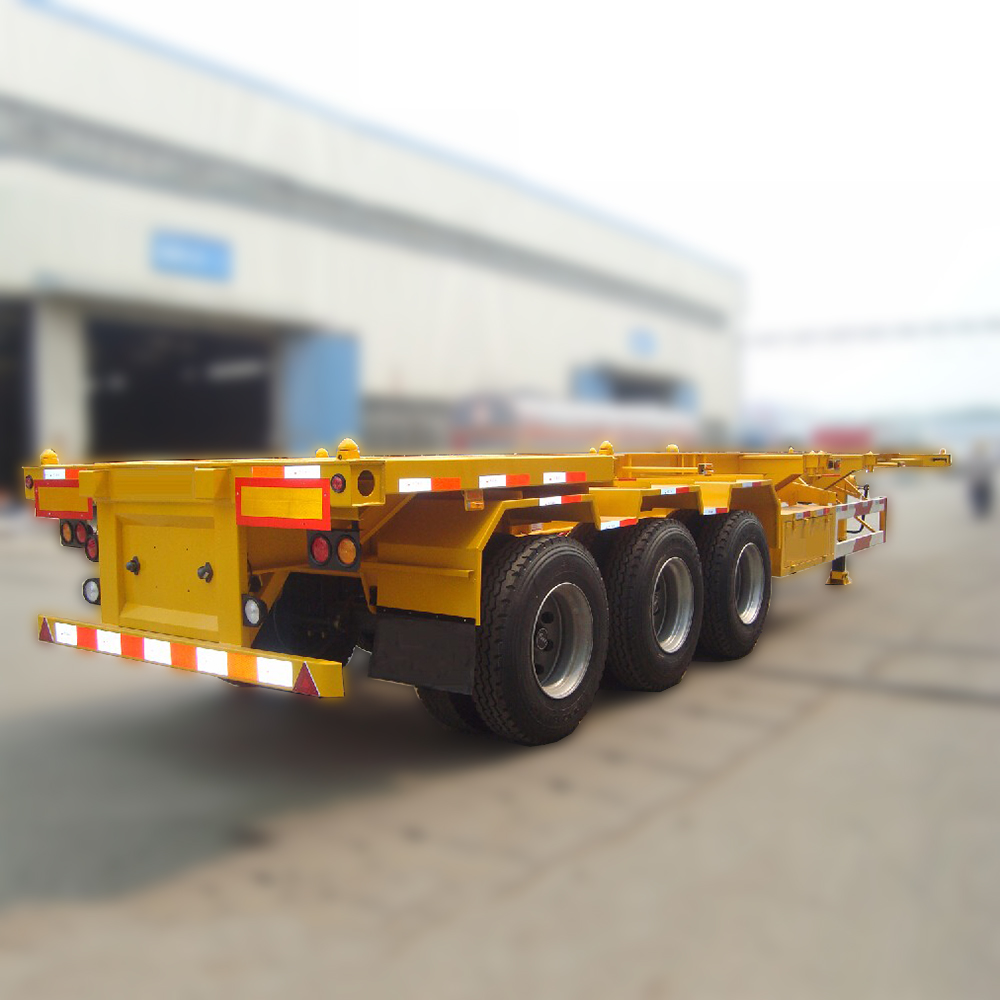

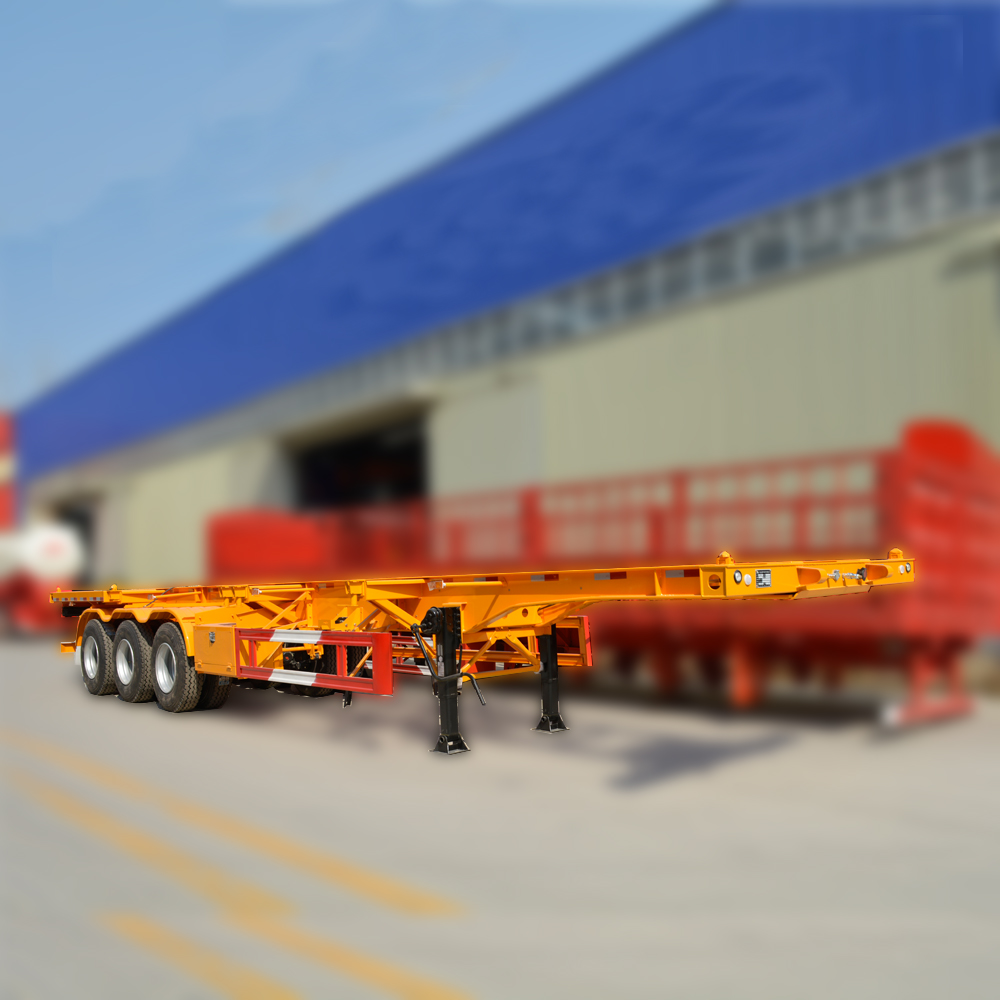

3 Axle skeleton semi trailer

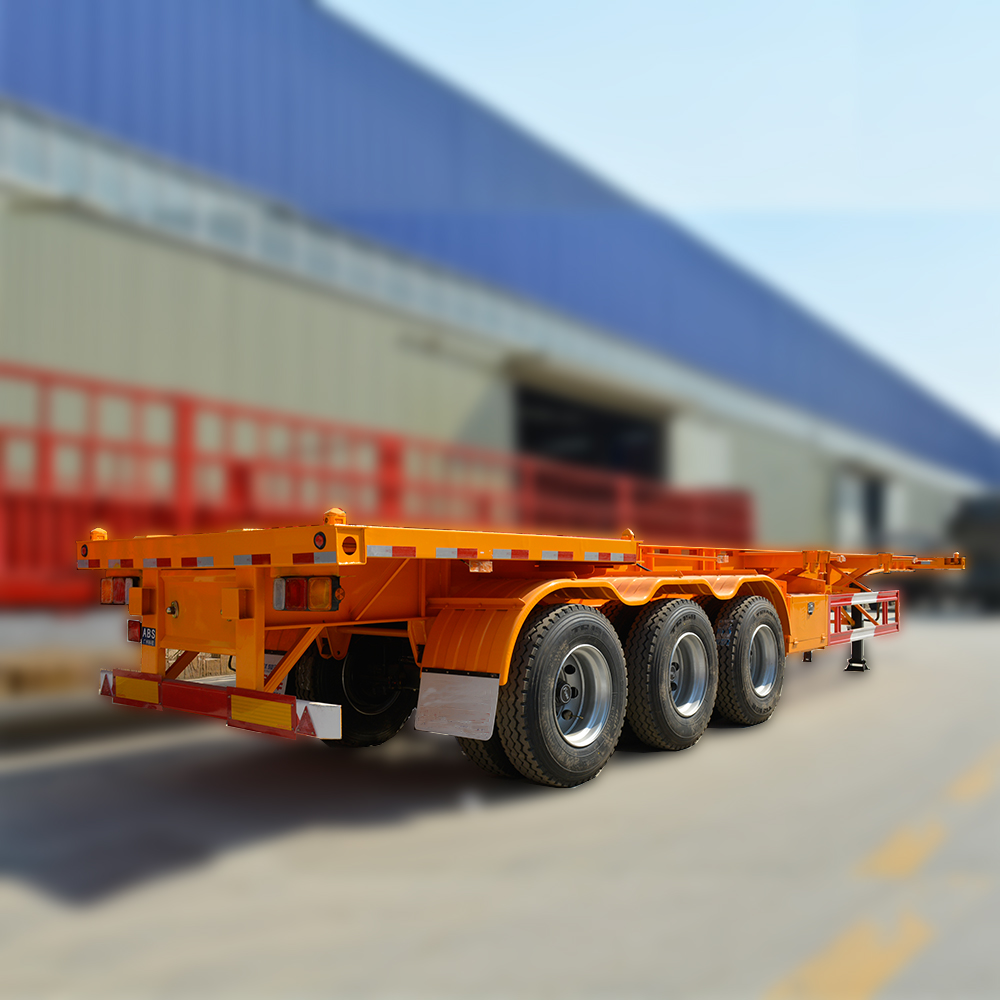

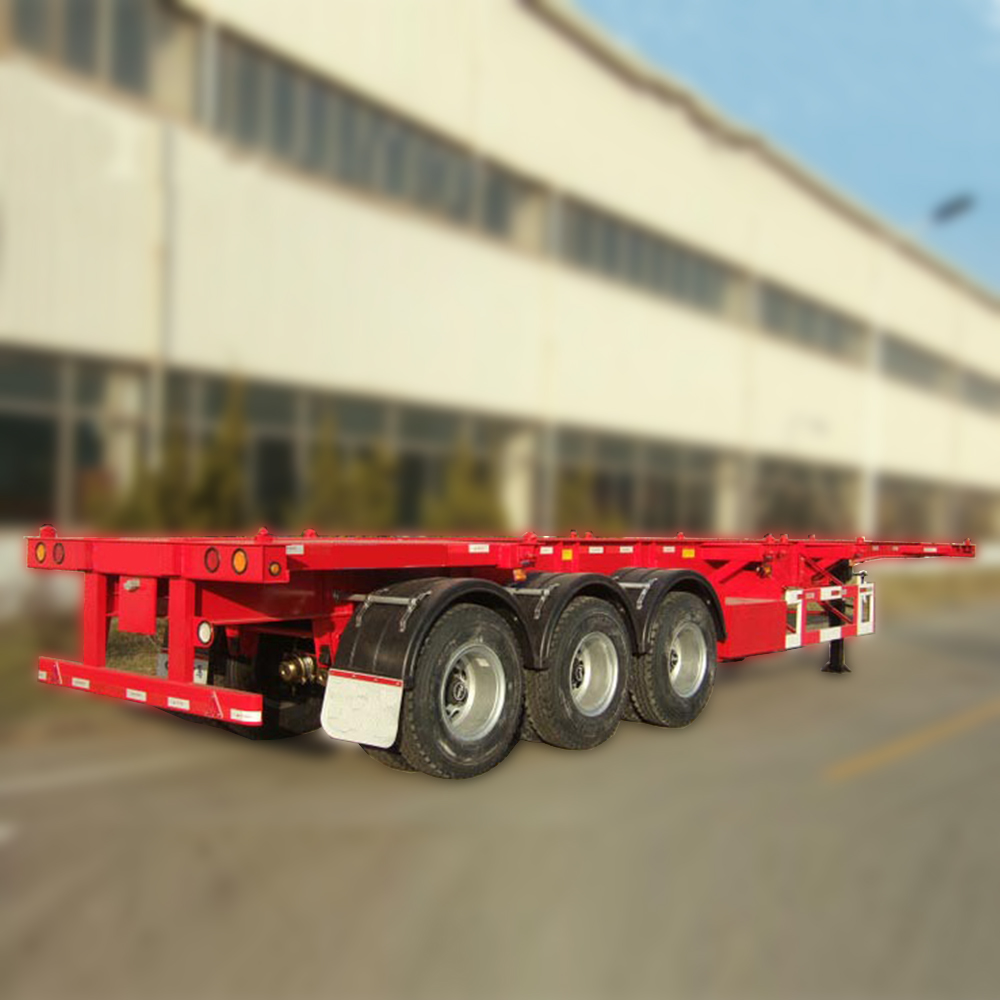

3 Axle skeleton semi trailer

2 axle 20ft container trailer

2.Product parameters

DIMENSIONS

Tare weight

6000kg

Payload

40000kg

Overall length

12470mm

Overall width

2500mm

Overall height

1550mm

SPECIFICATION

Chassis

Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Arc processes.Top flange 14mm,width 140mm;Middle flange 6mm;bottom flange 16mm;width 140mm

Axle

Number

3

Brand

Optional upon choice

Capacity

13T

Suspension

Mechanical suspension or air suspension

Leaf spring

Leaf spring or air bag

Tire

11.00R20,12.00R20,11.R22.5,12R22.5,315/80R22.5 Tire optional

Wheel rim

8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice

Kinpin

2" /3.5" bolt-in kinpin

Landing gear

JOST brand two-speed,manual operating,heavy duty landing gear

Twist lock

12no.of ISO twist lock for 1*20ft,2*20ft,1*40ft container

Vehicular applications

Container(20ft.40ft.45ft) transport

Braking system

WABOC RE6 relay valve;T30/30 spring brake chamber;40L air tanks

Painting

Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint

Accessories

One standard tool box
