Home  >Products Catalog > Concertina Razor Barbed Wire > 450mm, 600mm, 900mm, 960mm, 980mm Coil Diameter Fencing Concertina Wire Roll

450mm, 600mm, 900mm, 960mm, 980mm Coil Diameter Fencing Concertina Wire Roll SafeBuy Supplier Member

FOB Reference Price: $ 700
Wholesale: 1 Ton(s)
Supply Ability: 500 Tonne(s) per Month
Shipping: By Ship ,By Train ,By Truck
Payment Terms: T/T, Western Union, MoneyGram
Update Time: 2018/5/2
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: Waterproof paper inside ,woven bag outside Waterproof paper inside ,woven bag outside+wooden case Good Carton Bulk packing

Quick Details

  • Brand Name: XKH
  • Technique: Perforated
  • Application: Protecting Mesh
  • Type: PUNCHING
  • Material: Steel sheet + steel /iron core wire
  • Wire Diameter: 0.5mm-2.7mm
  • Product name:: Helical Razor Wire
  • Balde Tape: BTO-10,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28,BTO-30,CBT-60,CBT-65
  • Coil Diameter: 200mm,300mm,350mm,400mm,450mm,500mm,600mm,700mm,730mm,800mm,900mm,960mm,980mm,1050mm
  • Galvanized: electro ,hot dipped ,heavy zinc coating
  • Weight /roll: 2-15kg/roll
  • Type: cross ,single ,flatwarp
  • blade thickness: 0.25mm-0.6mm
  • core wire diameter: 2.0-2.7mm
  • Applycation: as security fence wire to protect in army ,road ,residential ,etc

Specifications

450mm,600mm,900mm,960mm,980mm coil diameter fencing concertina wire roll

450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll

MaterialHigh quality low carbon steel wire / Hot dipped Galvanzied Iron Wire

Usage: Mainly Used for the importance safeguard, such as the frontier defense line Wire, sentry, prison, military base and airport, etc.

Specification: BTO-10,12,18,22,28,30,CBT-60,65.

1.Razor thickness:0.5mm
2.Wire diameter:2.5mm
3.Razor width: 15 mm
4.Razor length: 22 mm
5.Outside diameter of roll:600 mm

6.Number of loops:33--102
7.Standard spreading length per roll:8m --16m
8.Razor barbed type:  cross type


Picture show:

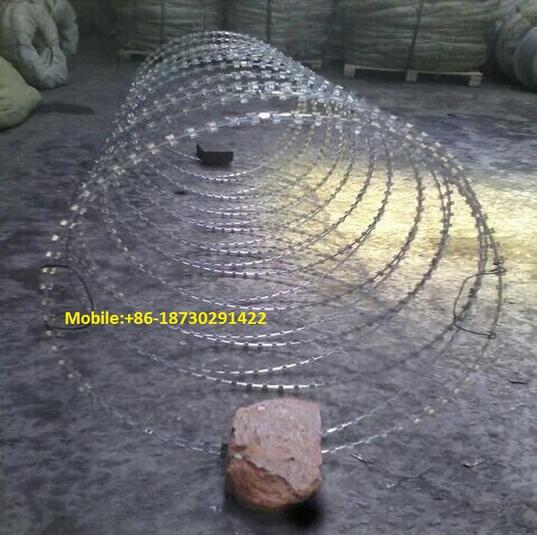

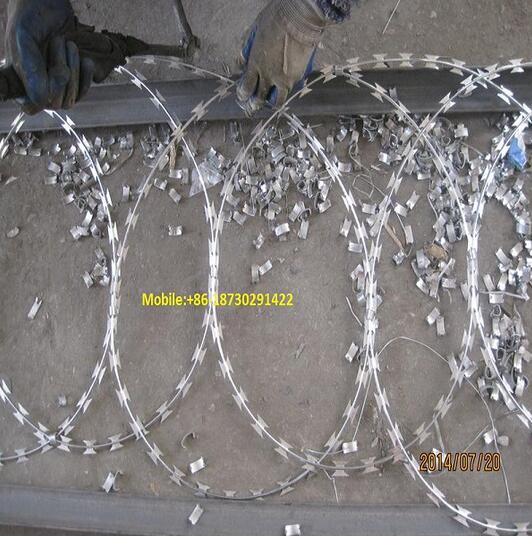

1. Cross wire type - with 4 handles:

450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll

2. Cross wire type - without Handles ( with 3/5 clips ):
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll

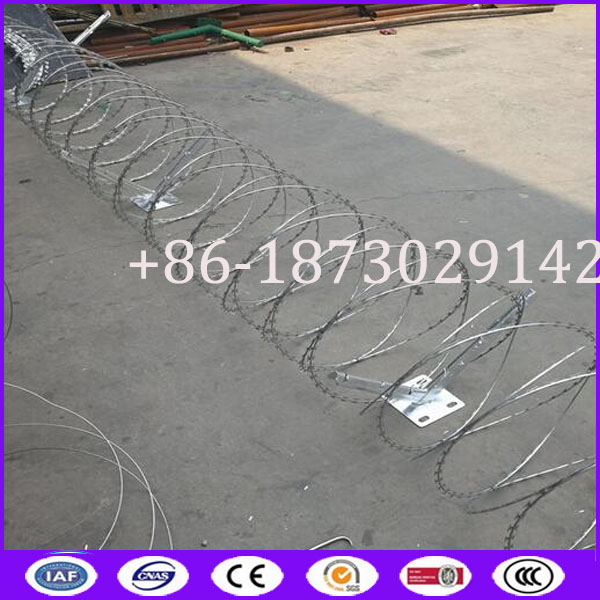

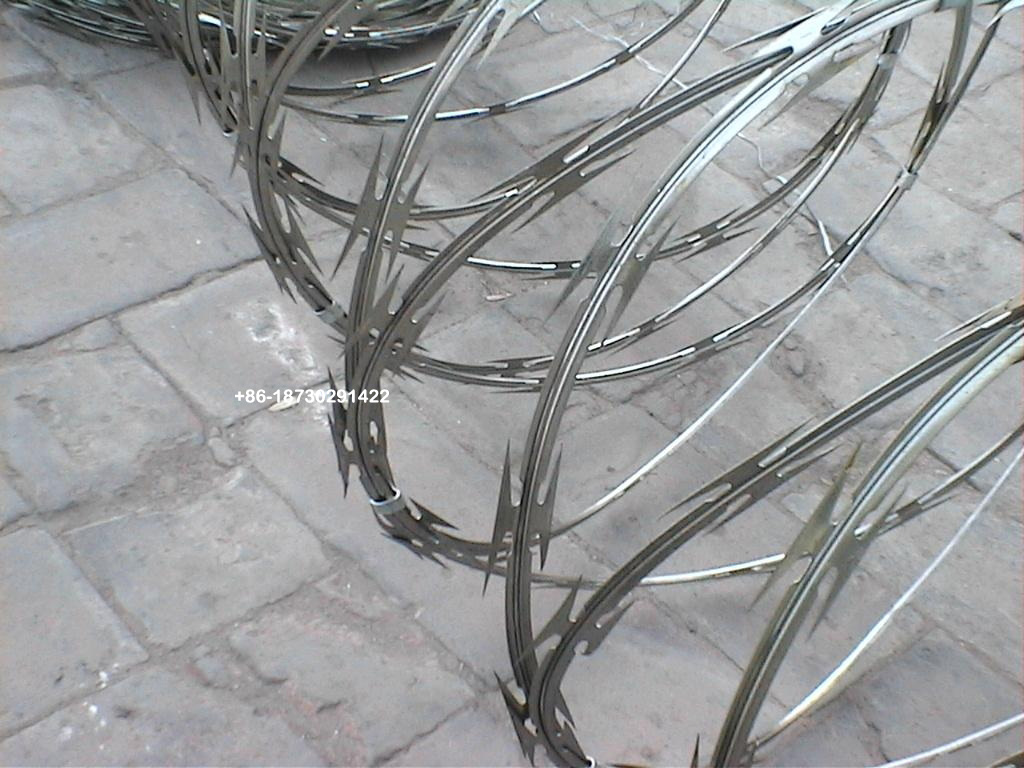

3. Helical /Single Coil wire type - without  any  clips

450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll

4. Flatwrap razor wire
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll
5. Many Colors  of  PVC/Expocy  razor concertina wire:
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll


BTO28 700mm coil core wire 25mm01mm Cross Concertina Razor Barbed Wire

Barbed Tape Wire Specification:
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
8M
CBT-65
Single coil
500mm
41
10M
CBT-65
Single coil
700mm
41
10M
CBT-65
Single coil
960mm
53
13M
CBT-65
Single coil
500mm
102
16M
BTO-10.15.22
Cross type
600mm
86
14M
BTO-10.15.22
Cross type
700mm
72
12M
BTO-10.15.22
Cross type
800mm
64
10M
BTO-10.15.22
Cross type
960mm
52
9M
BTO-10.15.22
Cross type
Notes: Standard products are shown in the tables above, special specifications Available on request. Standard materials are either galvanized or Stainless steel.

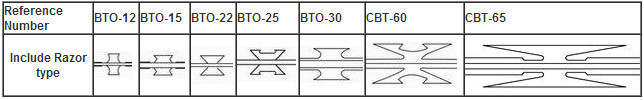

REference Number

Thickness

Wire Dia

Barb Length

Barb Width

Barb spacing

BTO-10

0.50.05

2.50.1

101

131

251

BTO-12

0.50.05

2.50.1

121

151

251

BTO-18

0.50.05

2.50.1

181

151

351

BTO-22

0.50.05

2.50.1

221

151

361

BTO-28

0.50.05

2.5

28

15

461

BTO-30

0.50.05

2.5

30

18

461

CBT-65

0.60.05

2.50.1

652

211

1012

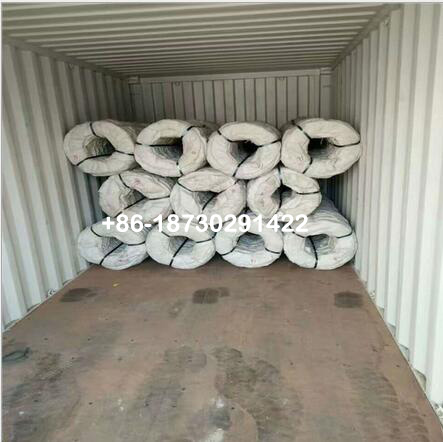

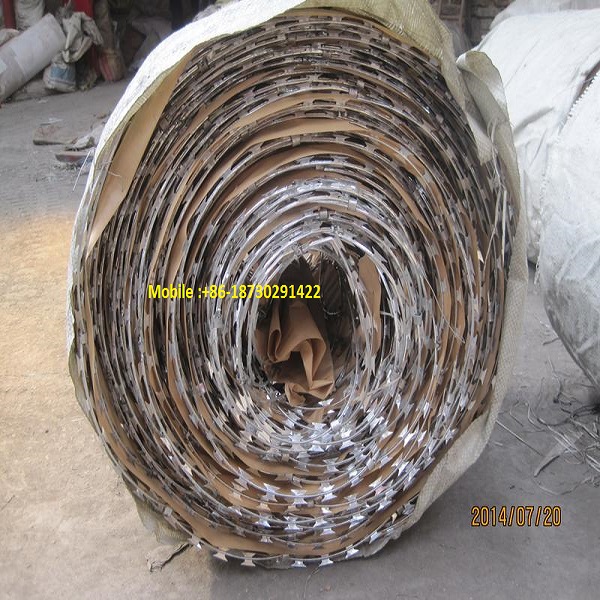

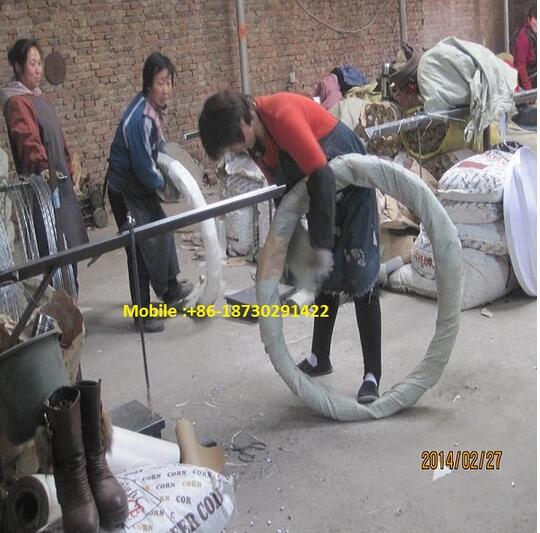

Packing of Razor wire  :

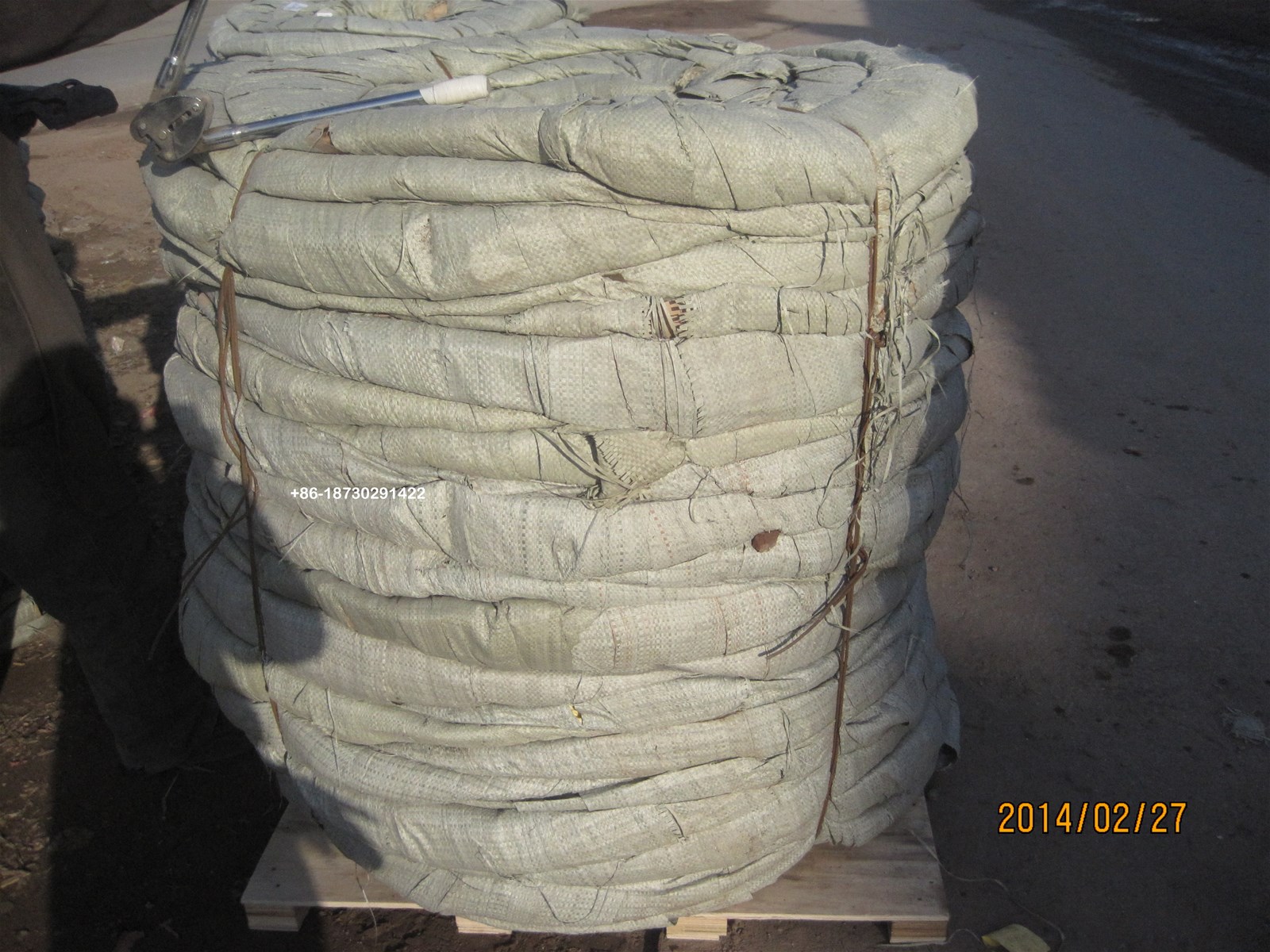

1.Waterproof paper inside,woven bag outside

2. with good wood /metal pallet

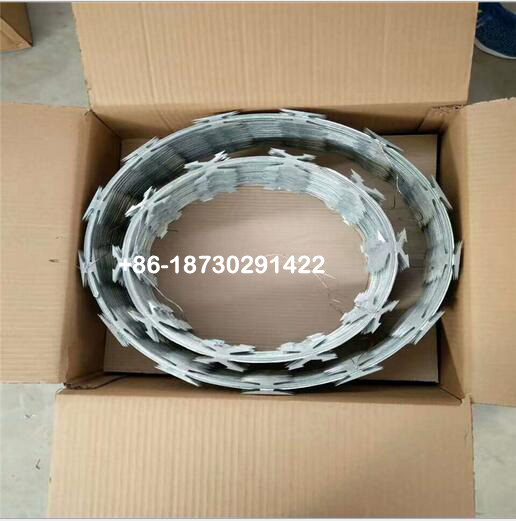

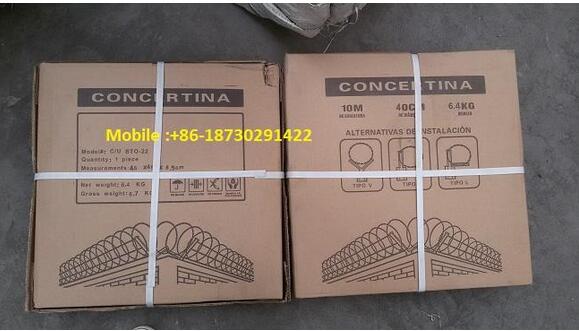

3.Carton box
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll
450mm600mm900mm 960mm980mm coil diameter fencing concertina wire roll


BTO28 700mm coil core wire 25mm01mm Cross Concertina Razor Barbed Wire
