Home  >Products Catalog > High Flexible Cable / Robot Cable/ CNC Cable > Double Screened Cable for Frequency Converters 2YSLCY-J 0.6/1 KV

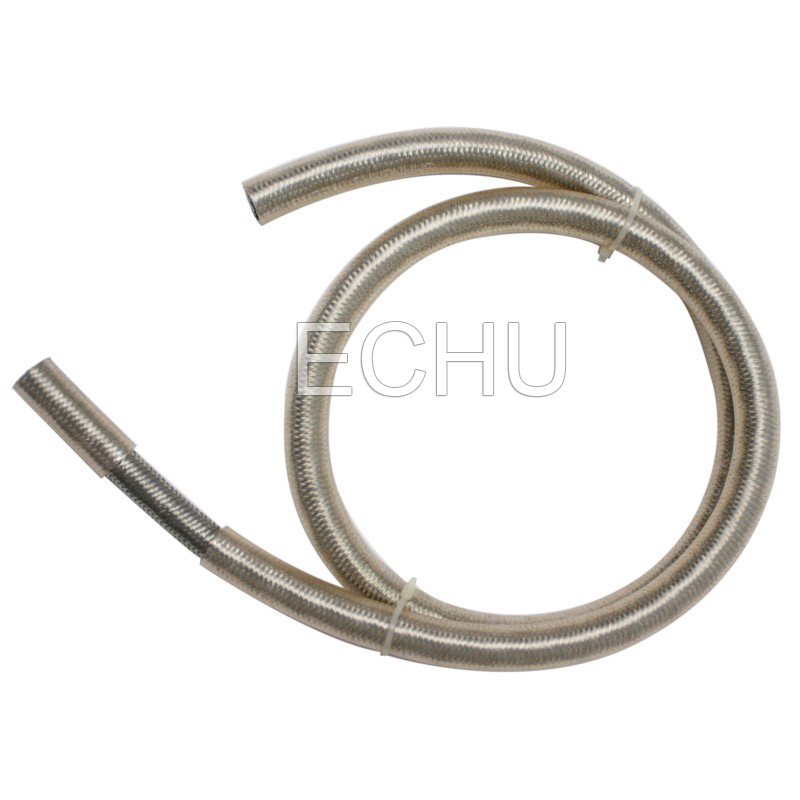

Double Screened Cable for Frequency Converters 2YSLCY-J 0.6/1 KV SafeBuy Supplier Member

FOB Reference Price: $ 0.88
Wholesale: 1000 Meter(s)
Supply Ability: 1,000,000,000 Kilometer(s) per Week
Shipping: FOB or CIF
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Update Time: 2018/6/12
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanghai in China
Packaging Details: ROLLS

Quick Details

  • Insulation Material: XLPE
  • Conductor Material: bare copper or tinned copper
  • Application: Power Station
  • Brand Name: ECHU/ OEM
  • Type: 2YSLCY and 2YSLCY-J or BPYJVP
  • Model Number: 2YSLCY and 2YSLCY-J or BPYJVP

Specifications

2YSLCY and 2YSLCYK Oilresistant Control Cable EMC Preferred2YSLCY and 2YSLCYK Oilresistant Control Cable EMC Preferred

this motor power supply cable for frequency converters ensures electromagnetic compatibility in industrial buildings, facilities with operating equipment where electromagnetic interference might negatively influence surroundings. the cable is also suitable as supply and connecting cable for medium mechanical stress in fixed installation and forced movements in dry, moist and wet environments but not suitable for open-air use. the cable is used in automotive industry, food industry, packaging, tool making machinery, handling technics, as a connecting cable to industrial pumps, ventilators, conveyor belts and air-conditioning installation. the optimal screening of those cables ensures an interference-free operation of frequency converters.
    Stranded bare copper conductor according to DIN VDE 0295, IEC 60228 cl. 5
    Core insulation of polyethylene (PE)
    Core colors: black, brown, grey, green-yellow, cores stranded in concentric layers
    First screening with special aluminum foil
    Second screening with tinned copper braiding, coverage approx. 80%
    Special PVC sheath, transparent
    PVC self-extinguishing and flame-retardant, cl. B according to VDE 0472 part 804 and IEC 60332-1
    Low mutual capacitance according to DIN VDE 0472 part 804, test method B

Technical data

    Special flexible cables for frequency converters according to DIN VDE 0250
    Temperature range flexing from -5C to +70C; fixed from -40C to +70C
    Nominal voltage Uo/U 600/1000 V
    Operating voltage max. a.c. and 3-phase 700/1200V, DC operation 900/1800V
    Test voltage a.c. 4000 V
    Insulation resistance min. 200 M x km
    Coupling resistance max. 250 /km
    Radiation resistance up to 80 x 106 cJ/kg (up to 80 Mrad)
    Mutual capacitance depending on cross-section: core/core 70 to 250 nF/km, core/braiding 110 to 410 nF/km
    Minimum bending radius
        fixed installation for outer diameter up to 12 mm - 5 x cable diameter;
        12 to 20 mm - 7,5 x cable diameter; > 20 mm - 10 x cable diameter
        free-movement for outer diameter up to 12 mm - 10 x cable diameter;
        12 to 20 mm - 15 x cable diameter; > 20 mm - 20 x cable diameter

    PE core insulation ensures low dielectric loss, double potential strenght, long durability and low level of interference
    Installation in hazardous areas, meets EMC requirements according to EN 55011
    Low coupling resistance due to high EMC compatibility
