Henan Quanshun Flow Control Science & Technology Co., Ltd.
China Manufacturer with main products: Segment Ball Valve, Bi Directional Sealing Valve, Slurry Valve, Y Type Globe Valve, Semi-Ball Valve, Tank Bottom Angle Valve, Ceramic Valve,... |

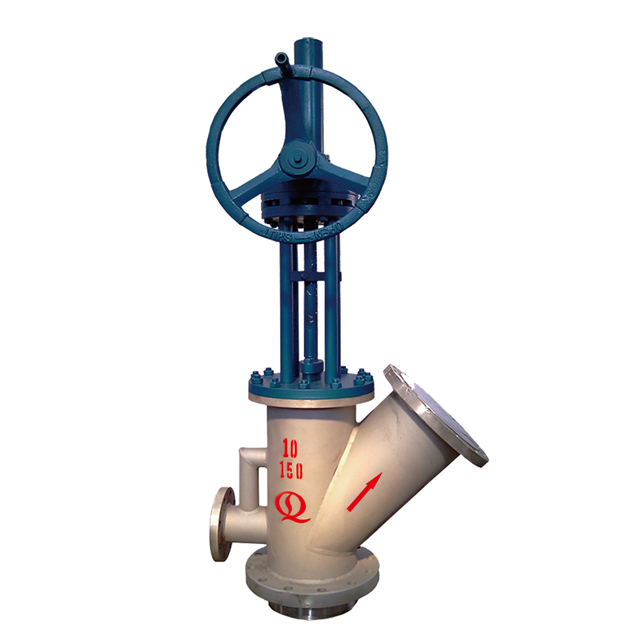

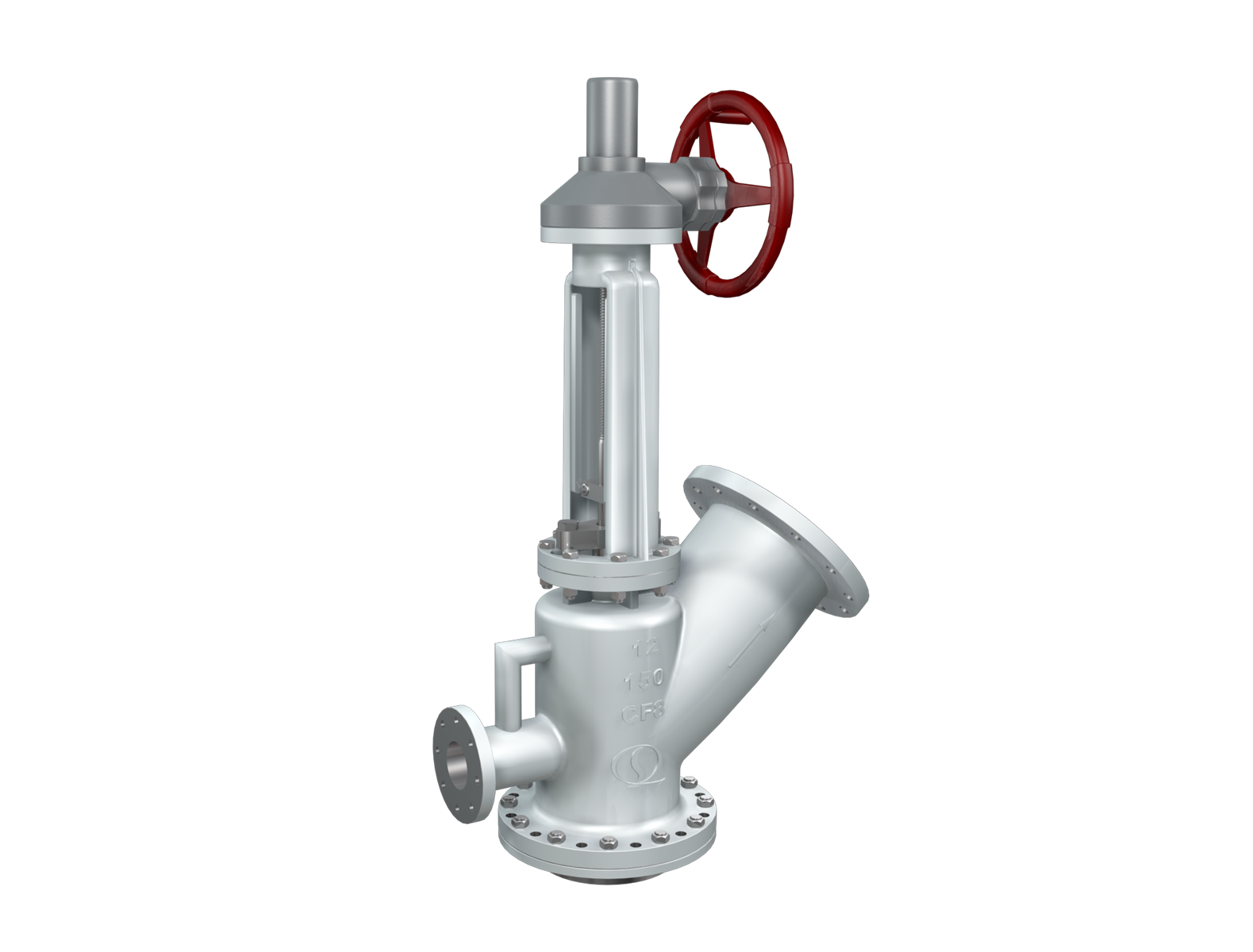

Special Tank Bottom Angle Valve for Coal Slurry
| Shipping: | ocean shipping |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wooden box |
Quick Details
- Brand Name: QUANSHUN
- Temperature of Media: Normal Temperature
- Material: Casting
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Structure: Angle
Specifications
the Special Tank Bottom Angle Valve for Coal Slurry is designed based on
Practical situation of the coal chemical industry. during the development of the
Product, characteristic of the coal slurry has been taken into consideration as
Well, the stainless steel dump valve is generally installed at the bottom of the
Coal slurry tank to discharge the medium
.
Features
1.Special cleaning device is offered for the
Valve body of the flange connection valve,which can be used to clean the inside
Of the product periodically. so caking and blocking of the coal slurry can be
Avoided.
2.Made of corrosion-resistant material,the inner cavity of the valve
Body is painted.
3.the sealing surface made of bead weld cemented carbide
Makes for the longer service of the special dump valve for coal slurry.
4.the
Anti-rotation mechanism of the dump valve for coal slurry can guarantee the
Rectilinear motion of the valve stem.
Technical
Parameters
Size: 2" ~8" DN50~DN200
Pressure: Class 150~Class 300
PN1.0~PN16
Body Material: WCB(A105), CF8(304), CF8M(316), CF3(304L),
CF3M(316L) etc.
Connection Type: Flange
Driving Type: Manual,bevel
Gear
Application
Coal chemical industry.
