Good Roll Former Price Corporation For Metal Sheet Material Forming Process

Supply Ability:	100 Set(s) per Year
Shipping:	By sea
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Machine into container

Quick Details

Type: Steel Frame & Purlin Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Brand Name: Superda
Condition: New
Type: Construction machinery
Warranty: 1 year
Weight: 3600kgs
Dimension(L*W*H): 12*1.6*1.2m
Power(W): 18.5kw
Voltage: 380v
Model Number: YX52-850
Production Capacity: 100set/Year
Work Pressure: 16Mpa
After sale: Engineer available to oveasea

Specifications

the following example is for you reference.

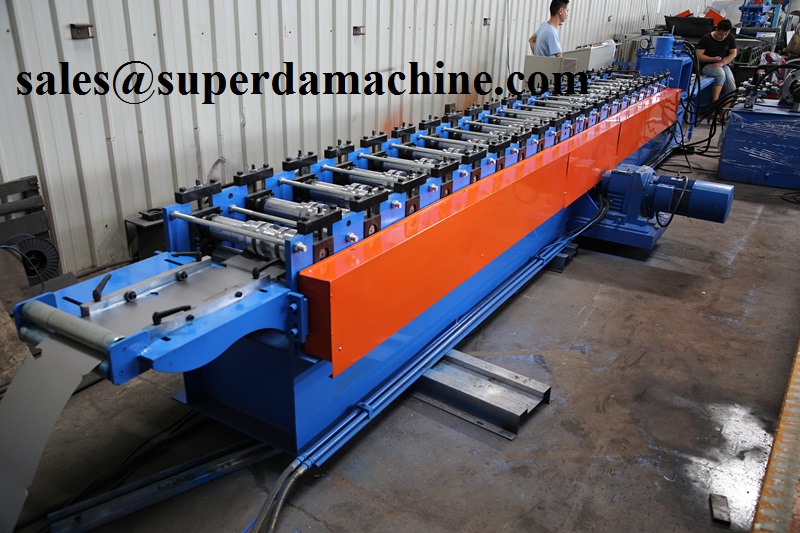

Good roll former price corporation for metal sheet material forming process

1.Brief Introduction:

the entire forming line imported PLC control, LCD touch screen, Man-machine interface. People interact with the PLC. Operator setting the Program to run automatically (programmable control) and control process Monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault Indication. Workpiece length digital setting, adjustable length can be Adjustable as well. Real-time monitoring of equipment operating status and Fault indication.

2.Techincal parameters:

Hydraulic press,Hydraulic hole punching System;
Hydraulic Function,Hydraulic punch Breach (Mould 1 set);
Hydraulic pressure,16MPa;
Hydraulic station,18.5KW;

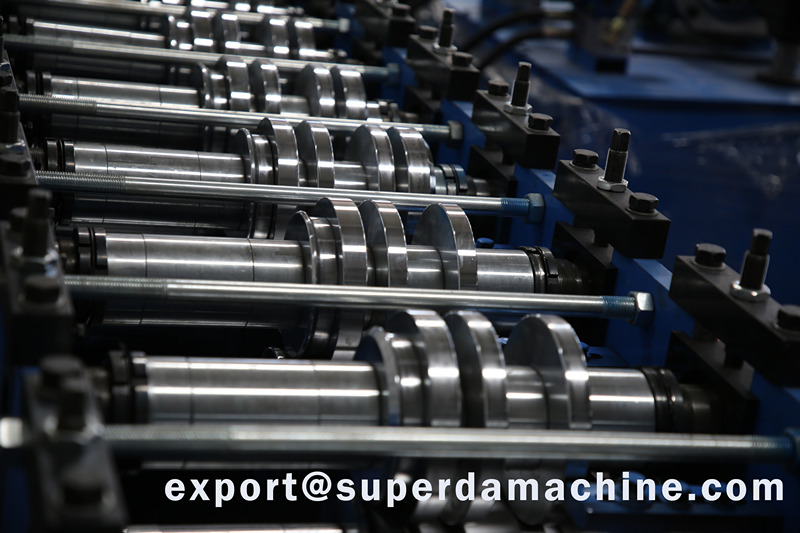

Roller station,20 stations and add Rub-roll to make sure the surface profile no scratches;
Side Panel,T18mm A3 steel Heavy duty;
Rolling speeding,2-8 m/min;
Roller material,GCr15 overall quenching Hardness HRC56-62 ;
Motor power,7.5KW;
Main Roller,Dia75mm;
Equipment base,45 # H type using welded Steel plate;

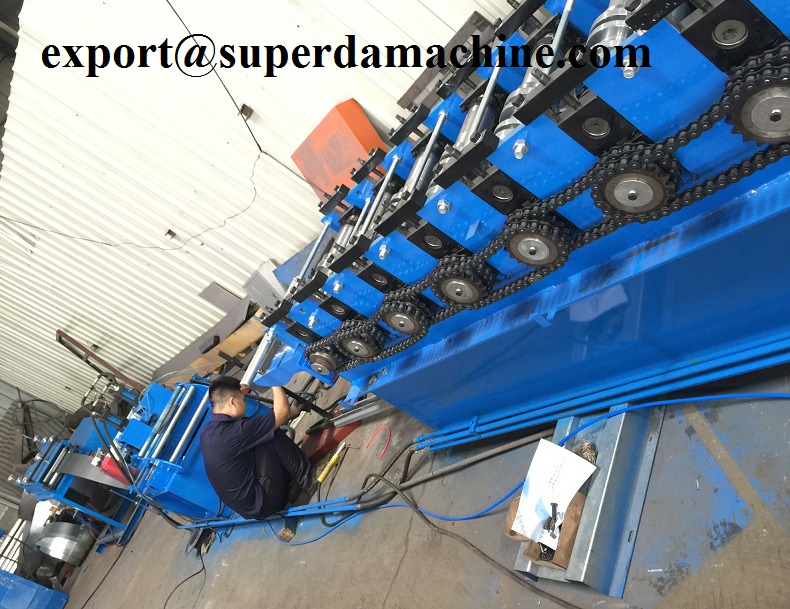

Transmission,chain drive;
Security,emergency stop buttons with;
PLC control system,Siemens;
Inverter,Taiwan Shilin;
Encoder,Omron;
Touch screen, Siemens;

3.Performance features:
2 in 1 Uncoiler StraighteningServo feederHydraulic press breach device Guide device roll forming machine hydraulic Punch shear device (including knife) finished product rack
