Home >Products Catalog > Spiral cable glands > Spiral Cable Gland PG7 / Cable Range 4-8mm / IP68 Protection

Spiral Cable Gland PG7 / Cable Range 4-8mm / IP68 Protection

FOB Price:	0.18 - 0.18 USD/Piece
Supply Ability:	100,000 Piece(s) per Month
Shipping:	FOB Ningbo or Shanghai China
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	50pcs/polybag

Quick Details

Material: Nylon
Size: PG7, PG9, PG11, PG13.5, PG16, PG21, PG25, PG29, PG36, PG42, PG48
Protection Level: IP68
Brand Name: GSH Electric
Color: Black color
Model Number: PG7

Specifications

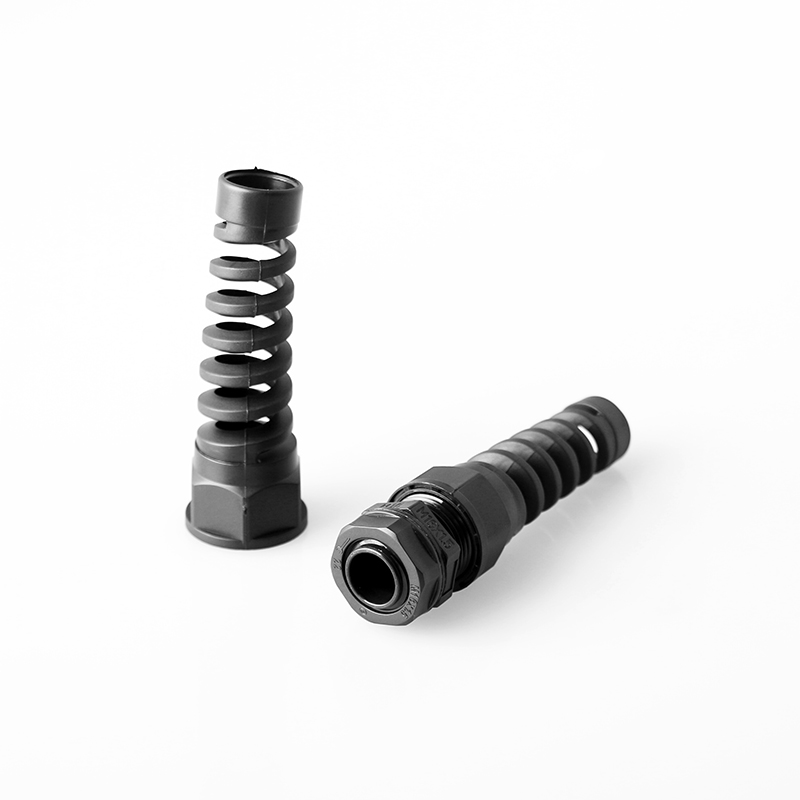

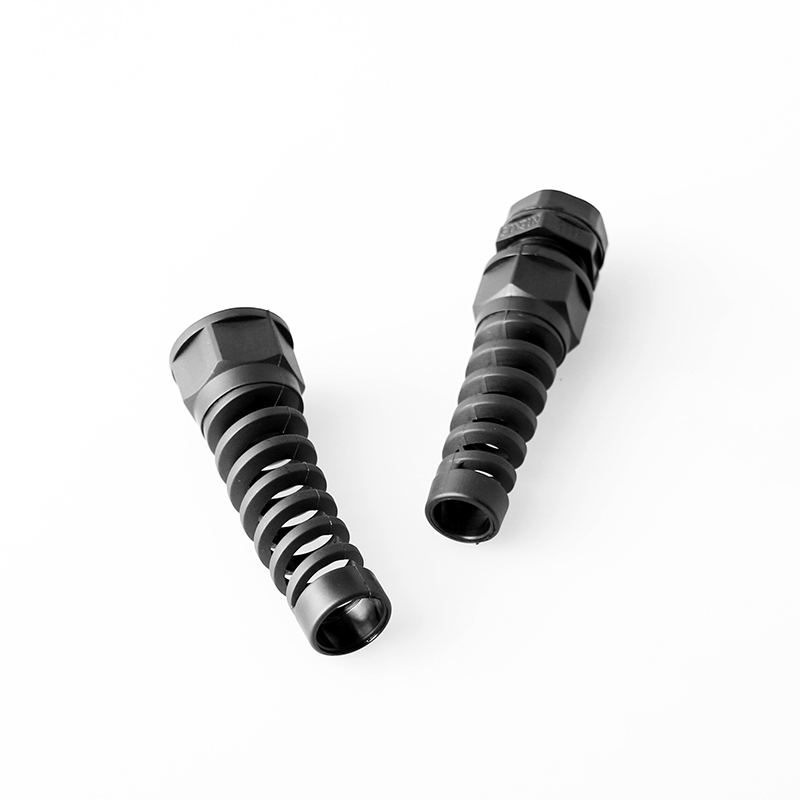

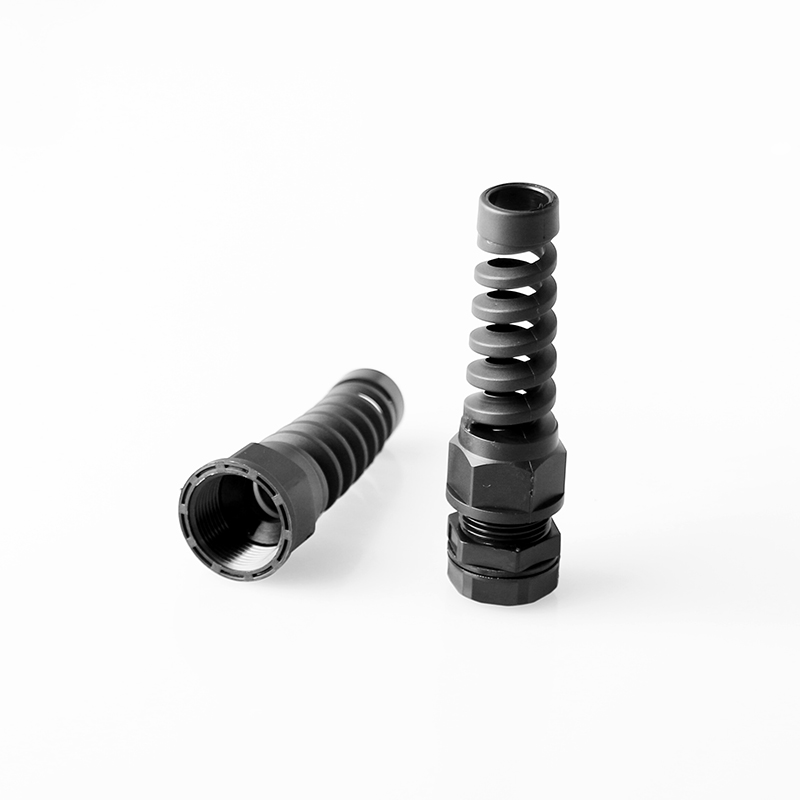

Spiral Cable Gland PG7 / cable range 4-8mm / IP68 protection

Spiral Cable Gland PG7 cable range 48mm IP68 protection
Thread Type: Metric, PG, G(PF) and NPT(without lock nut)

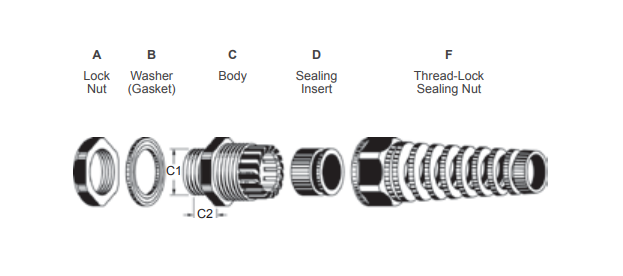

Material: Halogen-free UL approved nylon PA66 for A, C, F parts;. NBR rubber for B, D parts.
Working temperature: -40 to 100.
Color: Black(RAL9005), Light grey (RAL7035).
IP Protection: IP68
Application: Spiral cable gland is the best for cable entry system which protects against bending break failure. this is an important safety feature for a flexible cable on hand-held equipment, moving machine parts or other instruments.
Spiral Cable Gland PG7 cable range 48mm IP68 protection

Thread		Item No.		Cable Range Mm	Thread O. D. C1 mm	Panel Mounting Hole mm	Thread Length C2 mm	SpannerSize A/ F mm
Thread		Black	Light grey	Cable Range Mm	Thread O. D. C1 mm	Panel Mounting Hole mm	Thread Length C2 mm	SpannerSize A/ F mm
Short Thread	M12 X 1.5 M12 X 1.5 M16 X 1.5 M16 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M25 X 1.5	M12-P-05B-ST M12-P-07B-ST M16-P-07B-ST M16-P-10B-ST M20M-P-09B-ST M20M-P-12B-ST M20-P-10B-ST M20-P-14B-ST M25-P-16B-ST	M12-P-05G-ST M12-P-07G-ST M16-P-07G-ST M16-P-10G-ST M20M-P-09G-ST M20M-P-12G-ST M20-P-10G-ST M20-P-14G-ST M25-P-16G-ST	5.5 ~ 3 6.8 ~ 4 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 15.8 ~ 10	12 12 16 16 20 20 20 20 25	12 ~ 12.3 12 ~ 12.3 16 ~ 16.3 16 ~ 16.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 25 ~ 25.4	8.5 8.5 10 10 10 10 10 10 10	18 / 15 18 / 15 22 / 22 22 / 22 24 / 24 24 / 24 27 / 27 27 / 27 33 / 33
Long Thread	M12 X 1.5 M12 X 1.5 M16 X 1.5 M16 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M20 X 1.5 M25 X 1.5	M12-P-05B M12-P-07B M16-P-07B M16-P-10B M20M-P-09B M20M-P-12B M20-P-10B M20-P-14B M25-P-16B	M12-P-05G M12-P-07G M16-P-07G M16-P-10G M20M-P-09G M20M-P-12G M20-P-10G M20-P-14G M25-P-16G	5.5 ~ 3 6.8 ~ 4 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 15.8 ~ 10	12 12 16 16 20 20 20 20 25	12 ~ 12.3 12 ~ 12.3 16 ~ 16.3 16 ~ 16.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 20 ~ 20.3 25 ~ 25.4	15 15 15 15 15 15 15 15 15	18 / 15 18 / 15 22 / 22 22 / 22 24 / 24 24 / 24 27 / 27 27 / 27 33 / 33
PG7 PG7 PG9 PG 9 PG 11 PG 11 PG 13.5 PG 13.5 PG 16 PG 16 PG 21		PG7-P-05B PG7-P-07B PG9-P-05B PG9-P-08B PG11-P-07B PG11-P-10B PG13.5-P-09B PG13.5-P-12B PG16-P-10B PG16-P-14B PG21-P-16B	PG7-P-05G PG7-P-07G PG9-P-05G PG9-P-08G PG11-P-07G PG11-P-10G PG13.5-P-09G PG13.5-P-12G PG16-P-10G PG16-P-14G PG21-P-16G	5.5 ~ 3 6.8 ~ 4 5.5 ~ 3 8 ~ 4 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 15.8 ~ 10	12.5 12.5 15.2 15.2 18.6 18.6 20.4 20.4 22.5 22.5 28.3	12.5 ~ 12.8 12.5 ~ 12.8 15.2 ~ 15.5 15.2 ~ 15.5 18.6 ~ 18.9 18.6 ~ 18.9 20.4 ~ 20.7 20.4 ~ 20.7 22.5 ~ 22.8 22.5 ~ 22.8 28.3 ~ 28.7	8 8 8.5 8.5 9 9 10 10 10 10 12	17 / 15 17 / 15 22 / 19 22 / 19 24 / 22 24 / 22 27 / 24 27 / 24 30 / 27 30 / 27 36 / 33
G(PF)1/4 G(PF)1/4 G(PF)3/8 G(PF)3/8 G(PF)1/2 G(PF)1/2 G(PF)3/4		G1/4-P-05B G1/4-P-08B G3/8-P-07B G3/8-P-10B G1/2-P-09B G1/2-P-12B G3/4-P-16B	G1/4-P-05G G1/4-P-08G G3/8-P-07G G3/8-P-10G G1/2-P-09G G1/2-P-12G G3/4-P-16G	5.3 ~ 3 7.8~ 4.5 7 ~ 4 10 ~ 6 8.8~ 5 12 ~ 7 15.8 ~ 10	13.157 13.157 16.662 16.662 20.955 20.955 26.441	13.2 ~ 13.4 13.2 ~ 13.4 16.7 ~ 16.9 16.7 ~ 16.9 21.0 ~ 21.2 21.0 ~ 21.2 26.5 ~ 26.8	8 8 10 10 10 10 12	19 / 19 19 / 19 22 / 22 22 / 22 27 / 24 27 / 24 33 / 33
NPT3/8 NPT3/8 NPT1/2 NPT1/2 NPT3/4		NPT3/8-P-07B NPT3/8-P-10B NPT1/2-P-09B NPT1/2-P-12B NPT3/4-P-16B	NPT3/8-P-07G NPT3/8-P-10G NPT1/2-P-09G NPT1/2-P-12G NPT3/4-P-16G	7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 15.8 ~ 10	17.055 17.055 21.223 21.223 26.568	- - - - -	15 15 15 15 15	22 22 24 24 33
