Addressable Fire Alarm Control Panel Security Controller Fire System 1 Loop 128/200points
| FOB Price: | 250.00 - 300.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | FOB,EXW shenzhen |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | neutral packing |
Quick Details
- Brand Name: zoanco
- input: 220v
- output: 24v
- Product: fire alarm control panel
- requency: 50/60HZ
- Model Number: FW6000
- Product name: fire alarm control panel
- Primary AC: 220VAC 50/60 Hz
- Main supply output current: 2.5A &27VDC and 0.3A &32VDC
- Battery charging voltage(VDC): 27VDC
Specifications
Skype firealarm87 /wechat 15220176087
General Description

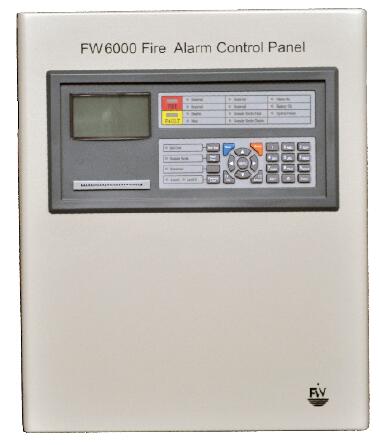

FW6000 Intelligent Fire Alarm Control Panel (FACP) is the new-generation fire alarm control unit designed by our company for applications in small and medium projects. It is wall-mounted type and has the advantages of powerful function, high reliability and flexible configuration. the panel is equipped with a LCD monitor to display all the information on fire alarms, faults and various operations, which can be printed out by the built-in printer. FW6000 is a oneloop control panel with maximum 240 points, which can work together with all FW 3 series field devices.
Features:
Powerful Function and High Reliability

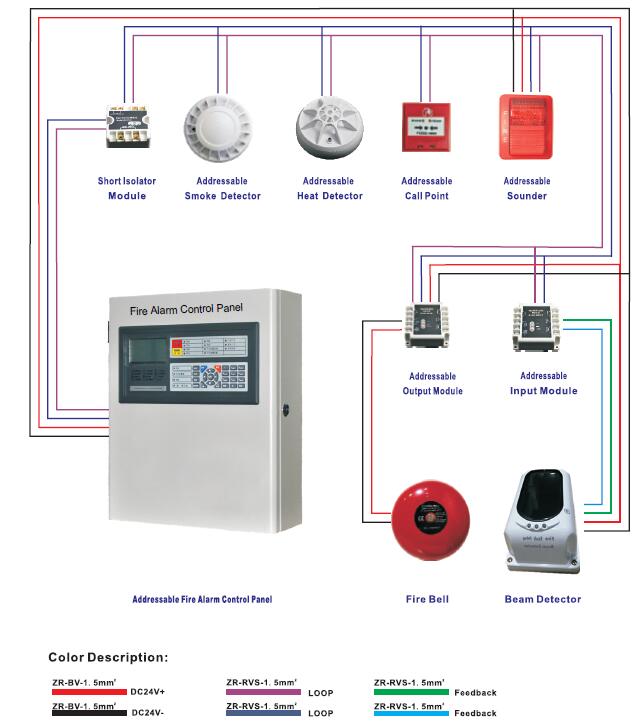

this FACP uses two-wire bus system to control up to 200 addressable devices
Wall mount design makes it easy to use and operate.
the FACP is composed of a main control module, a driver board and a communication board
this FACP is compatible with the complete range of the FW series fire alarm devices like intelligent detectors, manual call point,
Input module, I/O module, etc.
this FACP also has the function of dust contamination warning to make sure the detectors work properly and effectively.
this FACP adopts windows-based operational menus, which are convenient and easily understood.
All the system functions can be realized just by simple operation to select the corresponding numbers or move the cursor.
the fire alarm sent out by this FACP is not only visible & audible, it can also be displayed on the LCD screen and be printed out
by the built-in printer simultaneously, meanwhile, it can be recorded in the history log as well.
Specifications:
Primary AC: 220VAC 50/60 Hz
Main supply output voltage(VDC): 27VDC&32VDC
Main supply output current: 2.5A &27VDC and 0.3A &32VDC
Minimum Battery Size 2 x 12V Required: 4Ah
Battery charging voltage(VDC): 27VDC
Battery charging current: 700mA
COM-SG Connector volatge output: 1Amp@24VDC
