Topccd Industrial Co., Ltd.

China Manufacturer with main products: TFT LCD Monitors, Backup Cameras, 360 Degree Vision System, 1080P MDVR, Radar Detection System, Wireless Backup Systems, Wi-Fi System,...

Home >Products Catalog > Cameras > 3 in 1 Car Reverse Camera Parking Sensor Systems with 2 LED Light from Topccd (TOP-P3IN1)

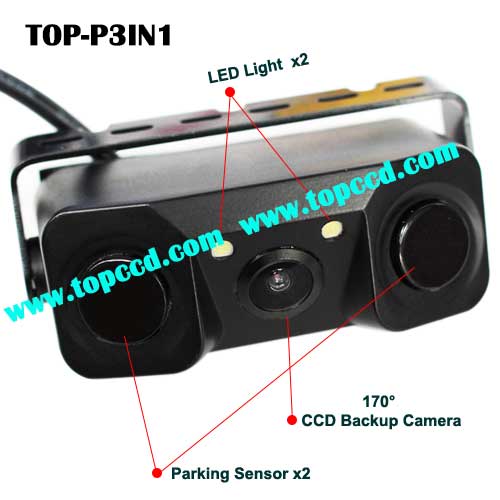

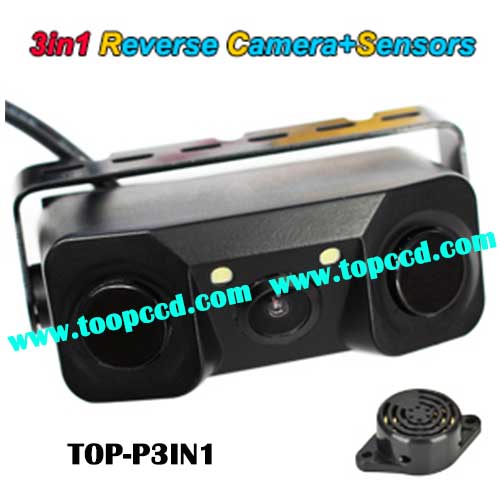

3 in 1 Car Reverse Camera Parking Sensor Systems with 2 LED Light from Topccd (TOP-P3IN1)

FOB Price:	5.00 - 30.00 USD/Piece
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	White boxes

Quick Details

Warranty: 2Years
Brand Name: TOPCCD
Car Make: Universal
Voltage: DC 12V
Type: Parking Sensor System
Model Number: TOP-P3IN1
Resolution: 600TVL
Waterproof: IP68K
Viewing angle: 170 degree
IR LEDs: 2pcs
More function: parking aid

Specifications

. 3 in 1 Video Rear Car Reverse Reversing Parking Sensor with High definition Night Vision IR Camera
. Model: TOP-P3IN1

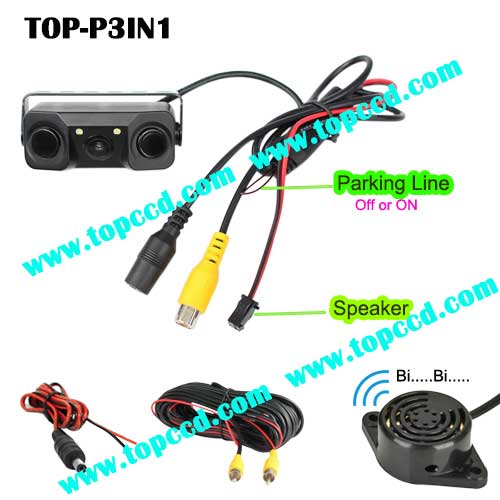

. this system combine two sensor and one camera,show the image and distance on the monitor or DVD display.
. with 2pcs white LED lights,nice for night vision.
. Measure distance between 0.3~2.0M,Alarm by BIBI.
. Show color OSD digit parking line optional on the screen.this item has to work with a Monitor.
. Adjusttable bracket for better view angle
. Signal system: PAL / NTSC system optional
. Waterproof Resistance: IP68K
. Image sensor: 1/3" Color CMOS PC3089
. Resolution: 756(H)*504(V)
. Mini illumination: 0.1 lux
. Lens Angle: 170
. Video output: 1Vp-p,75 Ohm
. Detecting Distance: 0.3m~2.0m
. Alarm distance: 0m~2.0m

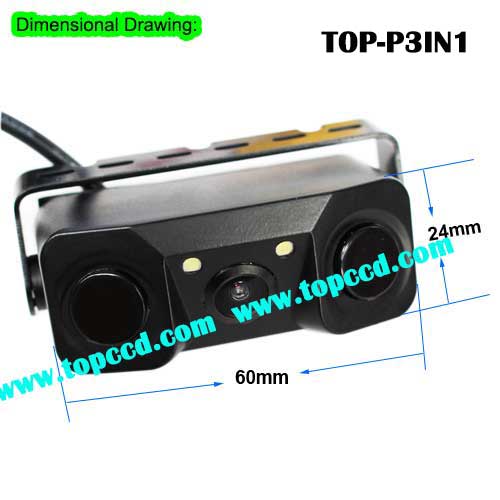

. Sensor diameter: 14mm
. Sensor angle: Vertical 60,Horizontal 60
. Alarm volume: 65dB
. Alarm frequency: 1.6-2.0m:0.5 HZ(slowness),1.1-1.5m:1 HZ(slowness),0.6-1.0m:3 HZ(commonly), 0-0.4m:Bi.......
. Image: Normal / mirror image optional (Default reverse image)
. Support Normal / Reversing image Switching: N/A
. Support Parking line off/on Switching: N/A (without parking line only)
. Operating Temperature: -20~+75 RH95% Max.
. Storage Temperature: -30~+85 RH95% Max.
. Voltage Input: DC9V/15V
3 in 1 Car Reverse Camera parking sensor systems with 2 LED light from Topccd TOPP3IN1
