Universal License Plate Number IR Camera with Dual Mounting Brackets Optional from Topccd (TOP-LB455)

FOB Price:	5.00 - 30.00 USD/Piece
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	White boxes or color boxes

Quick Details

Warranty: 2Years
Brand Name: TOPCCD
Car Make: Universal
Voltage: DC 12V
Type: Reverse Camera
Model Number: TOP-LB456R
Resolution: 420TVL,600TVL,700TVL
Waterproof: IP68K
Viewing angle: 170 degree
More function: Support normal/mirror image switching
IR LEDs: 7pcs

Specifications

. Universal License Plate Number Night Vision Rear View Backup Camera
. Model: TOP-LB456R
. Effective Pixels: 976x592(1/3" PC1058 chip);756x504(1/3" PC3089 chip);648x488(1/4" PC7080 chip)....Etc optional
. Signal System: NTSC / PAL System optional
. Resolution: 480TVL - 700TVL
. Video System: Internal
. Horizontal Angle: 170

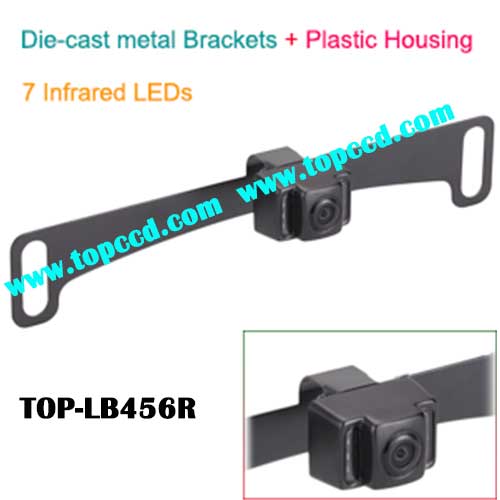

. Night Vision: 7pcs IR LEDs
. White Balance: Auto
. Exposure Control: Auto
. Gain Control: Auto
. Shutter Mode: Electronic Rolling Shutter
. Shutter speed: 1/50, 160-1/100,000 sec.
. Frame Rate(fps): 60
. Gamma value: 0.45
. S/N Ratio: 46.5dB
. Video output: 1Vp.P 75ohm
. Waterproof REsistance: IP68K
. Connector: RCA

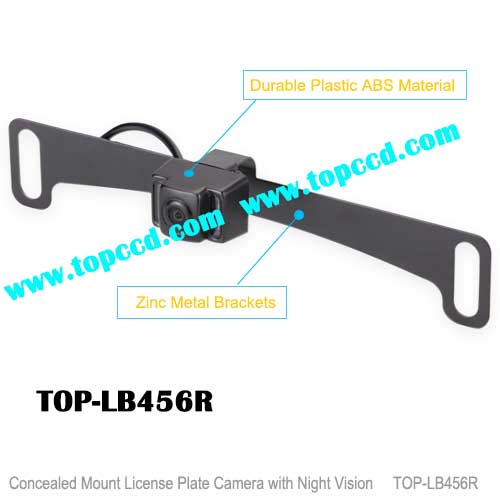

. Housing material: Zinc Metal Brackets (the camera part is plastic)
. Casing colors: Black
. Image: Reverse / Non-reverse image optional (Default mirror image)
. Support Normal / Reversing Image switching: N/A
. Support Parking line off/on Switching: N/A (Default with parking line)
. Operating Temperature: -20~+75 RH95% Max.
. Storage Temperature: -30~+85 RH95% Max.
. Voltage Input: DC9V/12V
Universal License Plate Number IR Camera with Dual Mounting brackets Optional from Topccd TOPLB455
