Home >Products Catalog > IP68 ATEX and IECEx Security Camera Casing Explosion proof CCTV Camera Casing With IR Wiper

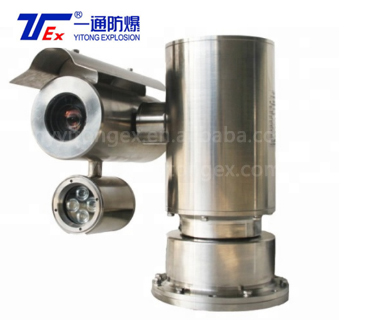

IP68 ATEX and IECEx Security Camera Casing Explosion proof CCTV Camera Casing With IR Wiper

FOB Price:	2500.00 - 3750.00 USD/Piece
Supply Ability:	350 Piece(s) per Month
Shipping:	FCA to export China warehouse
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	30KG,0.03CBM per PCS

Quick Details

Brand Name: Yitong
Frequency Response: 98.5%
Name: ATEX and IECEx Security Camera Casing
Certification: ATEX and IECEx,CNEX
Channel: 4/8/16
Model Number: YTW-2
Explosion Proof Mark: ExdIICT6 Gb /Ex Td A21 IP68 T80
Protection Leve: IP68
Application: Oil&Gas, Chemical, Marine&Shipbuilding, Pharmaceutical,Food&Beverage
Can match Camera brand: Can build-in Hikvision,Samsung,Lenovo,Dahua,etc,brand camera or upon reques;Analog or 1080p HD IP zoom camera
IR 1: 1.10-100m adaptive high-power LED infrared compensation light source, excellent night vision (fill function optional);2.Optional built-in heating device, defrosting device to meet indoor and outdoor all-weather use in ultra-low temperature and high humidity environment;
Cable Entry: G3/4*1
Material: Stainless steel304 /316L(Standard)Please contact us for other materials
Mounted: Bases mounted, columns mounted, towers mounted, hoops mounted.
Rotate Range: continues rotate 360 vertical rotation angle 90
Manufacturer: Nanyang Yitong Explosion proof Electric Co.,Ltd.

Specifications

AC220V/AC24V/DC12V IP68 ATEX and IECEx Camera Housing Explosion proof CCTV Camera Casing With IR Wiper
Features:

1.) Zone I, Zone II;
2.) Designed to meet the environment of IIC gas group (typically hydrogen, acetylene, ethylene, coke oven gas, diethyl ether, etc.) and flammable dust;

3.) Meet GB3836-2010 standard .Using citify flame proof structure meet the IIC explosion requirement ,can achieve Omni-directional monitoring;

4.)Stainless steel ,strong and durable;
5.)Easy installation and maintenance. Support various mount : Bases mounted, columns mounted, towers mounted, hoops mounted.

6.)Excellent anti-vibration, anti-interference, anti-typhoon and other performance, long-term stable work in harsh environments;

Technical details:

Explosion Proof Parameter
Explosion proof certification	ATEX&IECEx
Explosion proof Mark	EX II 2 GD ;EXD IIB T6 Gb; Ex tb IIIC T80 Db IP66/
Protection Level	IP68
Electric Parameter
Operation Voltage	AC100-240V
Operation Current	1A
Operation Frequency	50/60Hz
Built-in camera	2million 1/2.8" CMOS ICR ,Day & night type integrated camera
Lens	220x optical zoom, 4.7-94mm H265 120dB
Light source(optional)	IR, adaptive radiation from 10-100 m
Mechanic Parameter
Material	Stainless steel304(Standard)or upon request
Weight	25Kg
Mount	Wall mounted/ vertical rod / holding hoop
Cable entry	G3/4*1
Rotate speed	3.8/Suniform
Rotate range	Horizontal360continuous, Vertical90
Environmental indicators
Atmosphere	80106KPa
Environment Temp.	-20~+60
Relative Humidity	95%RH(+25)

Description:

1)Integrated switching power supply, decoder, camera, light source in one, simple wiring, easy debugging;
2)Built-in conductive slip ring in horizontal direction ,can continues rotate 360, vertical rotation angle 90;
3)DC planetary motor,Self-locking worm gear mechanism, effectively prevent external impact of gravity;
4)DC power supply uses batteries for direct power supply and is particularly suitable for use in oil drilling, onboard drilling rigs, and mobile equipment;
5)High-torque DC planetary motors are used to greatly increase the output of external torsion, greatly increase the bearing weight and reduce the external torque impedance interference factors;
6)DC decoder and control circuit drive PTZ and camera, integrated structure design, beautiful appearance, stable operation, good anti-vibration performance;

Package :

1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
Delivery Detail: Shipped within 10-20 days after payment
Waranty& After sales Service :

The warranty, production and maintenance of the product cover by
1 year warranty to replace defected parts during one year of operations or 18 months from shipping.
2.And seller will provide a life time technical support.

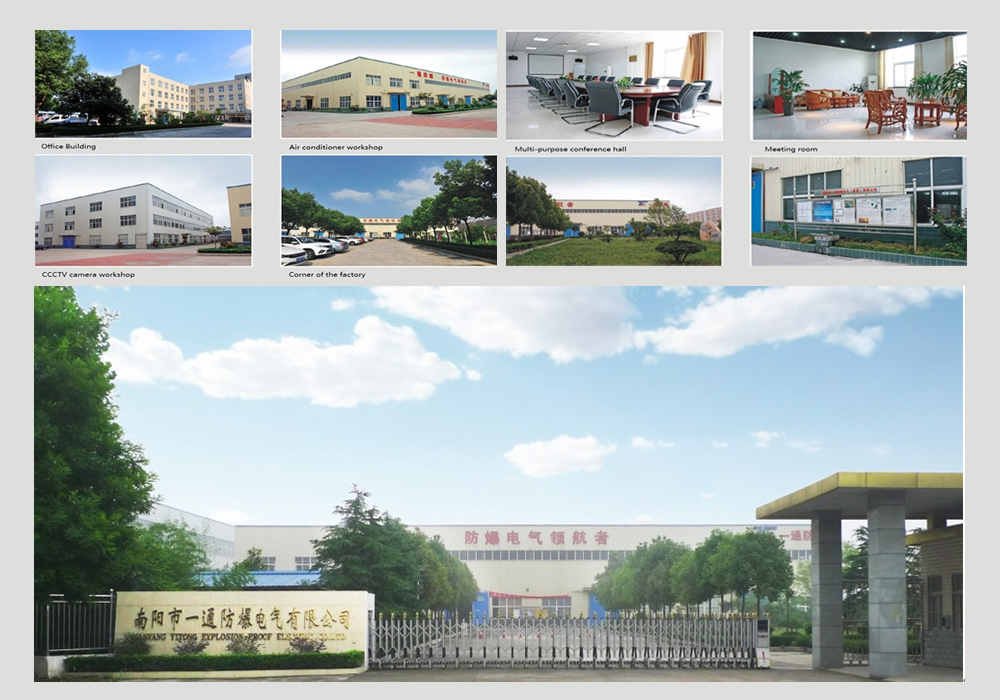

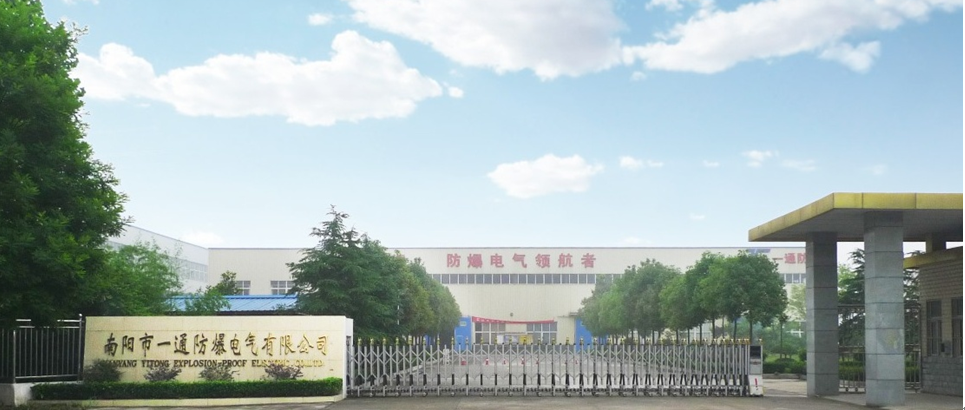

About company :

Nanyang Yitong Explosion proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
IP68 ATEX and IECEx Security Camera Casing Explosion proof CCTV Camera Casing With IR Wiper
We have wide range explosion proof products of air conditioners, electrical control box, CCTV camera, lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.

We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Exhibition
IP68 ATEX and IECEx Security Camera Casing Explosion proof CCTV Camera Casing With IR Wiper
