Electronic Cabinet Enclosure Roll Forming Machine China

FOB Price:	70000.00 - 90000.00 USD/Set
Supply Ability:	10 Set(s) per Year
Shipping:	By sea
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Container

Quick Details

Type: Steel Frame & Purlin Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Brand Name: Superda
Condition: New
Type: Chain driving
Warranty: 1 year
Weight: 3500kgs
Dimension(L*W*H): 18000*1600*1600mm
Power(W): 18.5kw
Voltage: 380v or customized
Model Number: YX21-350
Production Capacity: 100
Work Pressure: 16
voltage: 380v
weight: 3900kgs
Condition: New
Warranty: 1 year
Machine Colour: Blue
Function: Electronic box bending

Specifications

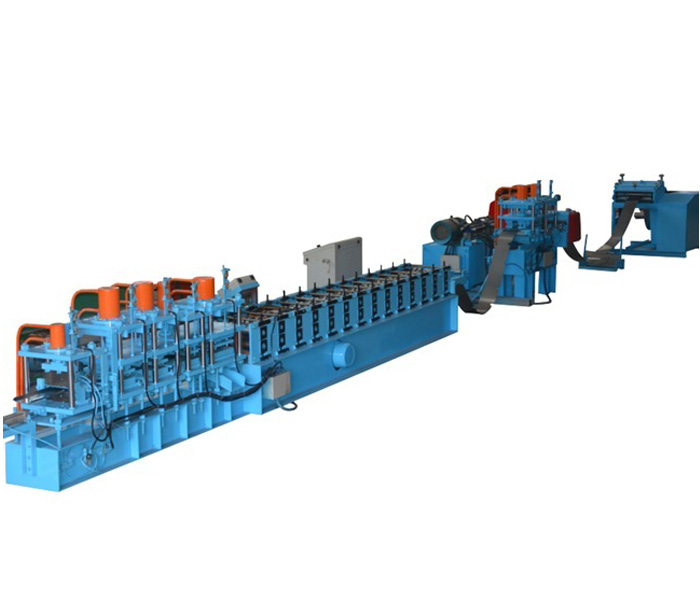

Electrical Cabinet enclosure roll forming machine production line

Roll forming machine for production electrionic cabinet enclosure, including cabinet panel forming machine, panel box bending.

,Metal Forming machine for electrical cabinet box panel

1,Technical parameters (Item:YX20-150/200/250/300/350)

No.	ITEM		PARAMETER	REMARK
1	MATERIAL	Type	Cold-rolled strip steel, galvanized sheet
		T.(mm)	0.8-1.2mm
		Yield Strength (Mpa)	Q235
2	Forming product Width		150,200,250,300,350mm
3	Forming speed (m/min)		2-8m	Including hole
4	Forming main power (KW)		7.5 KW	FYR
5	Hydraulic power (KW)		18.5 KW	FYR
6	Bending power (KW)		3 KW	FYR
7	Voltage		AC380V, 50Hz, 3P

, Distribution box production line process

(A) 2 in 1 Uncoiler Straighteningservo feederHydraulic press breach device Guide device roll forming machine hydraulic punch shear device (including knife) finished product rack

(B) Bending machine with tool

Completed metal box production line machine list

(), 2 in 1 Uncoiler straightener

1,Type Manual Expansion

2,Parameter

1) Passive discharge

2) Coil weight: < 2T

3) Coil inner D.: 450mm-530mm

4) Max. Width.400mm

5) Thickness.0.4-1.6mm

6) Straightener roller:7 pcs

8) Power.1.5kw

(),Servo Feeder
3.1 Max. Feeding width 400mm
3.2 Feeding thickess 0.4-1.6mm

3. 3 Motor, 1.3(Yaskawa)

(), Hydraulic hole punching system

3.1 Function: Hydraulic punch breach (Mould 1 set)
3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action, hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure: 16MPa
3.4 Hydraulic station: 18.5KW( Hydraulic punch hole/shear use same station)

()Guide device

Shenzhen Superdam Machine Co., Ltd Main Forming machines (for panel width 150,200,250,300,350mm )

5.1 Forming Roller: 20 stations, and add Rub-roll, to make sure the surface profile no scratches.

5.2 Side Panel: T.18mm,A3 steel Heavy duty.

5.3 Rolling speeding: 2-8 m/min.

5.4 Roller material: GCr15, overall quenching, hardness HRC56-62.
5.5 Motor power: 7.5KW.
5.6 Main Roller: 75mm, 45 #.
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Electronic Cabinet Enclosure Roll Forming Machine China

(),Flat collect rack

(),Box Bending Machine (including mould) 150/200/250/300/350 1 set, Hydraulic power:3kw

(),Electrical control system
Machinery main components of the brand:

PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.

,Devices completed electronic distribution panel prodution line

No.	Machine name	QTY	REMARK
1	Uncoiler straightener	1
2	Servo Feeder	1
3	Hydraulic machine	1	with mould
4	Guide device	1
5	Forming machine	1
6	Hydraulic machine	1	with mould (2 sets)
7	Follow Shear	1	Including knife
8	Collect rack	1
9	Control system	1
10	Box bending machine	1	with mould
