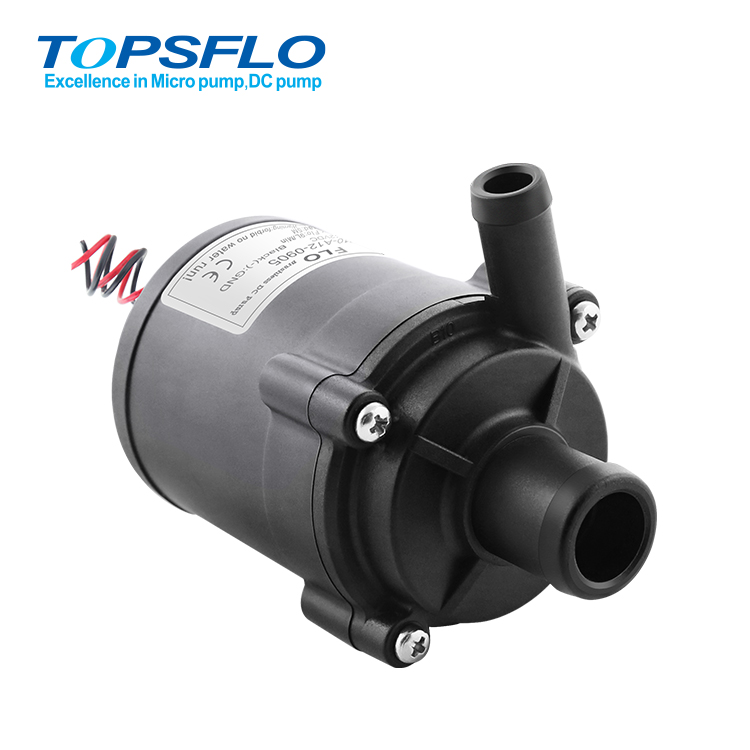

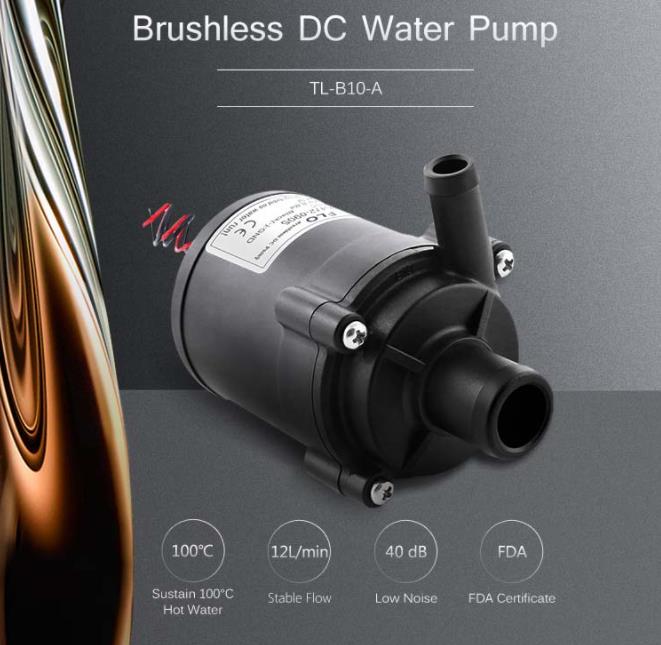

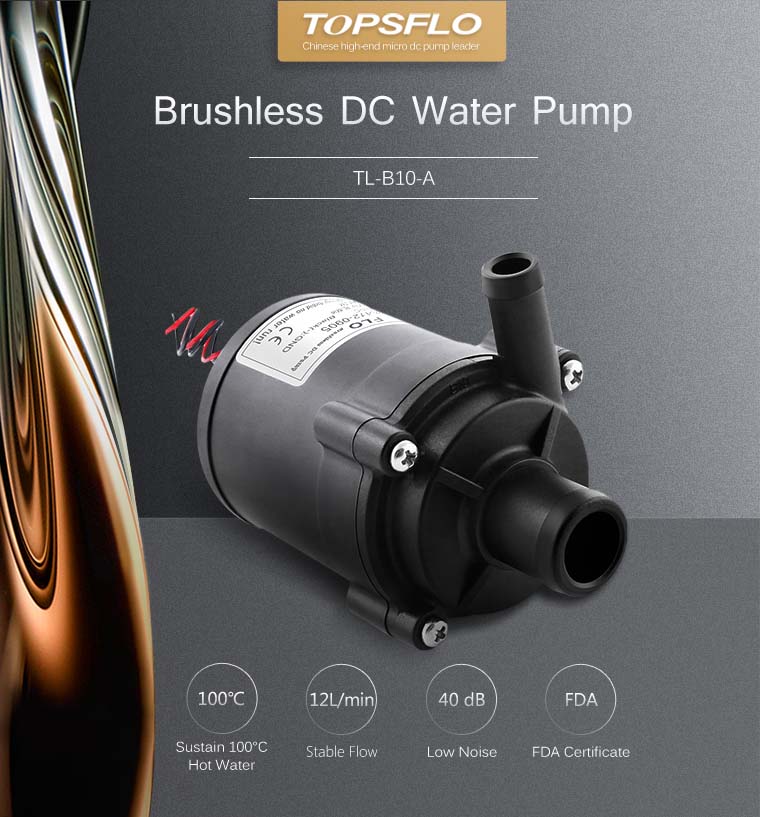

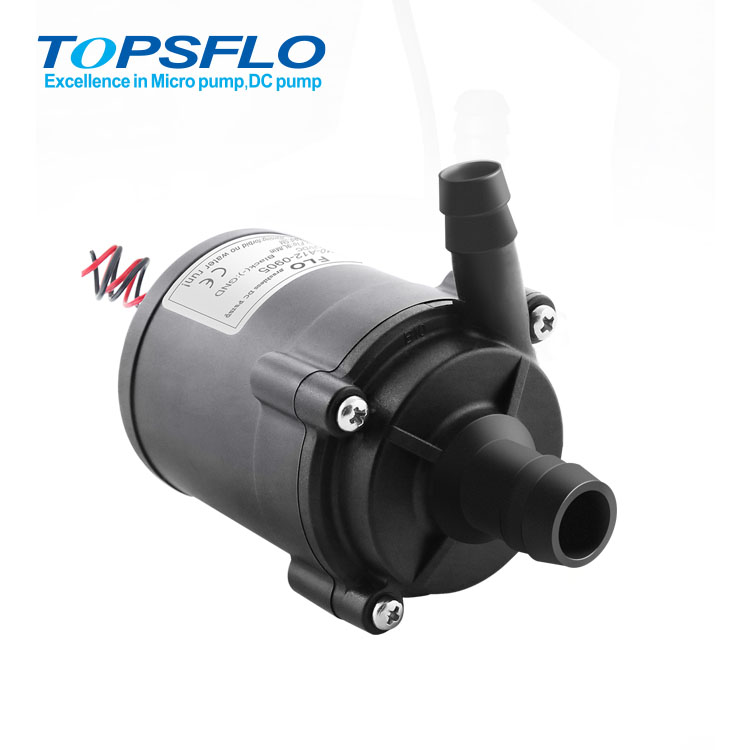

DC Brushless Motor TL-B10 Centrifugal DC Mini Water Pump

FOB Price:	16.90 - 18.00 USD/Piece
Supply Ability:	200,000 Piece(s) per Month
Shipping:	Delivery Time 20 day
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Pressure: High Pressure
Standard or Nonstandard: Standard
Power: Electric
Structure: Single-stage Pump
Brand Name: TOPSFLO
Usage: Water
Theory: Centrifugal Pump
Model Number: TL-B10
Motor: dc brushless motor
voltage: 12v 24v
Max flow: 12L/min
Max Head: 8M

Specifications

DC brushless motor TLB10 Centrifugal DC Mini Water Pump

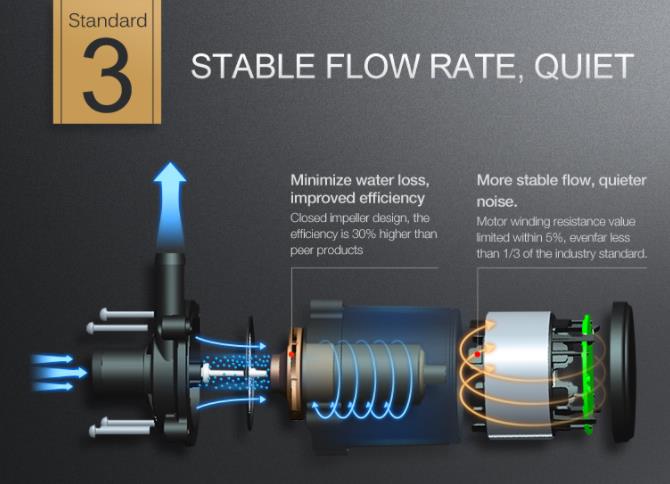

Product Features:

1.AdvanceD magnetIc driving technology for static-seal, without any leakage forever
2.Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
3.Heavy duty work, can sustain Continuous 24 hours work
4.Special designed high efficiency closed-type impeller
5.Sustain 100C hot water circulation
6.All wetted materials FDA approved to be safety usage
7.Low or no maintenance
8.Can customized

Product Specification:

Model	Product Code	Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Power(W)
B10	TL-B10-A12-0703	7	12VDC	0.54	3
	TL-B10-A24-0703	7	24VDC	0.35	3	8.4
	TL-B10-B12-0703	7	12VDC	0.54	3	6.48
	TL-B10-B24-0703	7	24VDC	0.35	3	8.4
	TL-B10-C12-0703	7	12VDC	0.54	3	6.48
	TL-B10-C24-0703	7	24VDC	0.35	3	8.4
	TL-B10-A12-0905	9	12VDC	1.38	5	16.56
	TL-B10-A24-0905	9	24VDC	0.65	5	15.6
	TL-B10-B12-0905	9	12VDC	1.38	5	16.56
	TL-B10-B24-0905	9	24VDC	0.65	5	15.6
	TL-B10-C12-0905	9	12VDC	1.38	5	16.56
	TL-B10-C24-0905	9	24VDC	0.65	5	15.6
	TL-B10-A24-1208	12	24VDC	1.3	8	31.2
	TL-B10-A24-1208	12	24VDC	1.3	8	31.2
	TL-B10-A24-1208	12	24VDC	1.3	8	31.2

Characteristics:

Max Flow Rate	7L/min 9L/MIN 12L/MIN
Max Static Lift	3M 5 M 8 M
Rated Voltage	12V / 24V
Impeller Type	Closed impeller
Motor Type	Brushless DC motor
Liquid Temperature	-40-100C
Ambient Temperature	-40-70C
Media	Pure Water,Beverage, antifreeze
Working Voltage Range	6~18V or 12~28V
Power Consumption	1~32W
Noise Class form 1M	40dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous
Power Supply	DC power supply, battery
Protection Functions	1. Polarity protection 2. Blocked protection
Remarks	Can't dry-running, not Self-priming
Customized functions	1.PWM, 0~5V speed control, 2.Submersible 3.Solar panel driven directly 4.FG(RPM) signal wire
the technical parameters above is only for your reference, for more details, please Feel free to

Typical Applications

Household battery water pump Water dispenser, Water Coolers

Automotive air conditioning Carbonation, Coffee Maker, Beverage Dispenser

Air-conditioner Drain Chillers, Cooling Circulation,

Home Appliance Boosting Evaporative coolers

DC brushless motor TLB10 Centrifugal DC Mini Water Pump

Get More technical parameters, please Contact us
