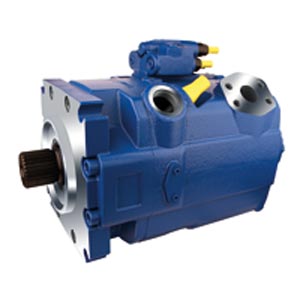

Rexroth A15VSO Series Variable Piston Pumps

FOB Price:	1.00 - 10000.00 USD/Piece
Payment Terms:	L/C, T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	STANDARD EXPORT CARTON

Quick Details

Pressure: High Pressure
Standard or Nonstandard: Standard
Power: Electric
Structure: Piston Pump
Brand Name: Rexroth

Specifications

Rexroth A15VSO Series Variable Piston Pumps

	Series	A15VSO Series Variable Piston Pumps



	Specifications	110,145,175,210,280
	Working pressure	Nominal pressure p: 350 bar
		Maximum pressure: absolute pressure 420 bar
Control mode: Power Controller LR - Fixed Control L4 - Electrical Proportional Regulation Total Power Controller CR, PR - Override Control, Hydraulic Proportion Adjustment, High Pressure Travel Controller E2 - Electrical Proportional Regulation E6-Two-Point Electrical Control H3, H4 - Hydraulic Proportional Adjustment, Pressure Control H5, H6 - Hydraulic proportional adjustment, pressure control Pressure Controller DR - Fixed Settings DG-hydraulic remote control DP - for Parallel Operations Pressure controller with mooring function MD - Fixed Settings	Characteristic	Rexroth piston pump A15VSO, A15VLO series features: 1. Swashplate axial piston variable displacement pump for hydraulic transmission in open circuit. 2. It is more suitable for static hydraulic applications. 3. the flow rate of the pump is proportional to the driving speed and displacement. 4. the stepless flow regulation can be realized by adjusting the angle of the rotary swashplate. 5. the pump can work by self-priming or booster pump. 6. Extensive control devices have high adaptability and can realize various control and adjustment functions required for fixed hydraulic applications. 7. 100% mooring function can be realized by special controller (swing mode, motor speed regulation mode). 8. Universal through-axle drive device is suitable for installing gear pump and axial piston pump (even with the same specifications), that is, 100% through-axle drive. 9. Compact Design 10. High efficiency 11. High power density 12. Low Noise Level

Size				110	145	175	210	280	145	175	210	280
Version				Standard					with charge pump
Displacement		VG max	cm	110	145	175	210	280	145	175	210	280
Geometric, per Revolution		VG max	cm	110	145	175	210	280	145	175	210	280
Rated Pressure		pnom	bar	350	350	350	350	350	350	350	350	350
Maximum Pressure		pmax	bar	420	420	420	420	420	420	420	420	420
Maximum speed	at VG max	nnom	rpm	2400	2300	2150	2000	1800	2600	2500	2350	2150
Flow	at VG max and nnom	qV nom	L/min	264	334	376	441	504	377	438	525	644
Power	at qV nom and pnom	P	kW	154	195	219	257	294	220	255	306	376
Torque	at VG max and pnom	M	Nm	613	808	975	1170	1560	808	975	1170	1560
Weight (approx.)		m	kg	64	79	97	111	143	92	110	125	148
